How to set up Thinkcar J2534 passthru device for OEM programming: A complete step-by-step guide.
THINKCAR’s J2534-capable devices — including the ThinkLink VCI (Thinkscan 689BT Pro) and the MUCAR 892BT PRO — bring this capability to independent shops at a fraction of the cost of dealer tools. But setting it up for the first time can feel daunting: driver installation, VCI connection, OEM software configuration, and understanding which vehicles you can actually cover.
This guide walks you through the entire process, from downloading the driver to completing your first J2534 diagnostic session — whether you’re working locally in the shop or remotely through ThinkLink.
What You’ll Need Before You Start:
Before diving into the setup steps, make sure you have the following ready:
- A J2534-capable THINKCAR device: ThinkLink VCI (formerly Smartlink C) or MUCAR 892BT PRO scanner with J2534 pass-through support
- A Windows PC: J2534 driver and OEM diagnostic software run on Windows only
- OEM diagnostic software subscription: You’ll need valid OEM software for the brand you’re diagnosing (e.g., Toyota Techstream, Honda HDS, BMW ISTA, GM GDS2). These are typically sold as time-based subscriptions by the vehicle manufacturers
- A stable connection: Either a USB cable or WiFi connection between your PC and the VCI
- A vehicle with OBD2 port: The vehicle you’re diagnosing or reprogramming
Important: J2534 pass-through functions depend on the specific vehicle, OEM software, subscription requirements, and the service procedure. Not all programming tasks can be performed through J2534 — some may require additional OEM authorization.
Vehicle and Software Coverage
J2534 pass-through compatibility depends on both the vehicle brand and the OEM software you’re using. Here’s a reference list of commonly supported combinations:
| OEM Software | Supported Vehicle Brands |
|---|---|
| Toyota Techstream | Toyota, Lexus, Scion |
| Honda HDS | Honda, Acura |
| Volvo VIDA | Volvo |
| Volkswagen ODIS | VW (Imported, FAW, Shanghai), Audi, SEAT, Skoda, Bentley, Lamborghini |
| BMW ISTA | BMW |
| Ford IDS / FDRS | Ford |
| Subaru SSM | Subaru |
| GM GDS2 / Tech2Win | GM, Opel, Saab, Chevrolet, Cadillac |
| Chrysler WiTECH | Chrysler, Dodge, Jeep, Ram, Fiat, Alfa Romeo |
| Mercedes XENTRY/DAS | Mercedes-Benz |
| JLR SDD / Pathfinder | Land Rover, Jaguar |
Note: The specific functions available through J2534 depend on the OEM software’s capabilities, your subscription level, and the vehicle’s supported protocols. Not all vehicles in a brand’s lineup support J2534 programming. Always refer to the OEM’s official technical documentation for detailed compatibility information.
Part 1: Installing the J2534Plus Driver
Download the Driver

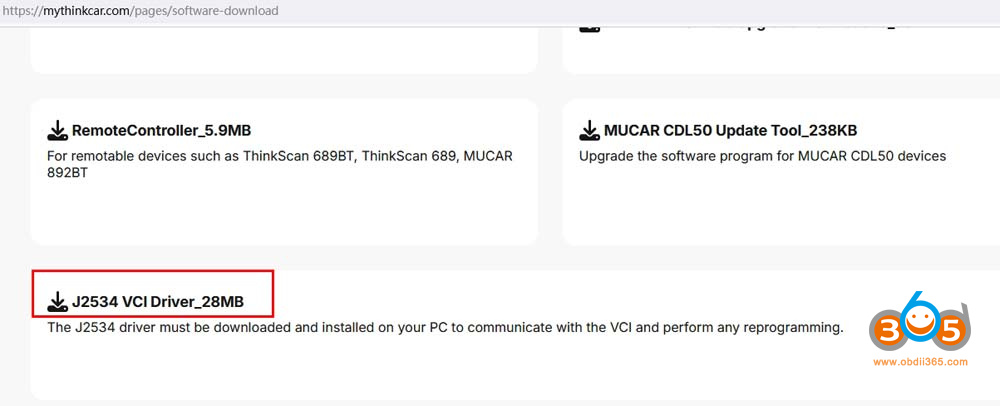

1.Go to the THINKCAR Software Download page and locate the J2534 VCI Driver. Click the download button to save the setup file to your PC. The file is approximately 28MB.
Alternatively, you can visit thinkcar.com/downloads and select “J2534PLUS” to download the latest version.
2.Run the Setup File
Once the download finishes, double-click the setup file and follow the on-screen installation instructions. The wizard will guide you through the standard installation process.

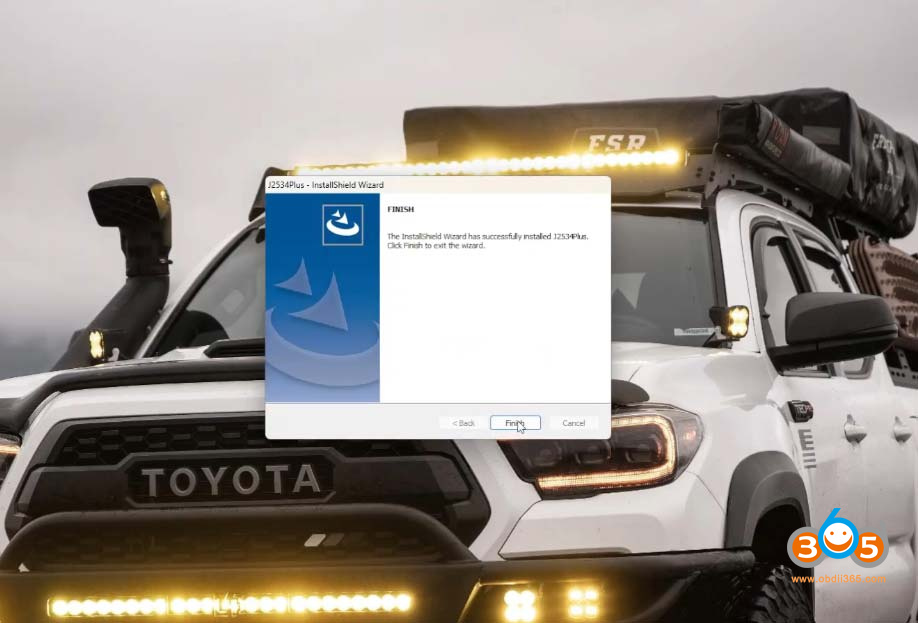

3.Complete the Installation
Click “Finish” to complete the installation. The driver is now installed on your PC.
Key point: Once the J2534Plus driver is installed, it runs as a background service. You do not need to keep the J2534Plus application window open for J2534 diagnostics to work. The driver handles VCI communication automatically when your OEM software requests it.
4. Verify the Installation

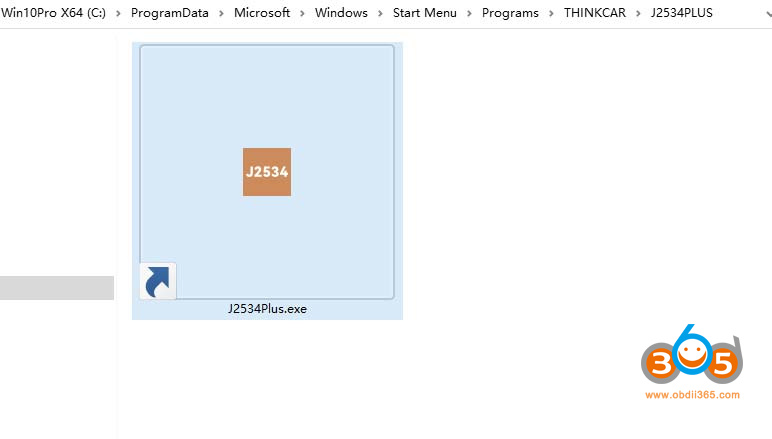

After installation, you should see a desktop shortcut for the J2534Plus program. Double-click it to open the management interface and verify that the driver is running correctly. The interface displays your VCI connection status, driver version, and firmware version.
Part 2: Using the J2534Plus Program
The J2534Plus program is your driver management tool. It handles several important functions beyond just enabling the driver:
Connection Management
- Check Connect — Verifies the connection between your PC and the VCI. Use this before starting a diagnostic session to confirm everything is communicating properly.
- Config WiFi — Connects the VCI to a WiFi network. This is essential if you’re using WiFi as your connection method instead of USB.
- Switch — Changes the connection method between USB and WiFi mode.
Firmware and Driver Updates
Update — Updates the VCI firmware to the latest version. Keeping firmware current ensures compatibility with newer vehicle protocols.
Important: Do not run any diagnostic software during a firmware update. The VCI needs to be fully available for the update process, and running diagnostics simultaneously can cause communication errors or incomplete updates.
Diagnostic Session Logging
At the bottom of the J2534Plus interface, there’s a switch to enable diagnostic session logging. When enabled, all communication data between the VCI and the vehicle is saved to a default directory on your PC. These log files are invaluable if you encounter an issue — you can send them to THINKCAR customer support for troubleshooting assistance.
Note for Remote Mode: When using Remote Diagnostics under J2534 mode, it’s normal for the J2534Plus software to detect the ThinkLink B service box as “Disconnected” even if it’s properly connected through the data cord. This is expected behavior. Follow the Remote J2534 setup steps in Part 4 to switch to J2534 remote mode after accepting the remote order, and the driver should function properly.
Part 3: Local J2534 Diagnostics — Step by Step
Local diagnostics is the most common J2534 use case: you’re physically in the shop with the vehicle, VCI, and your PC all connected together. Here’s how to set it up:
1. Connect the Hardware
Connect your PC to the THINKCAR J2534-capable VCI, and then connect the VCI to the vehicle’s OBD2 port. You have two connection options:
- Option A — USB Connection:
Connect the I/O data transfer port on the VCI to a USB port on your PC using the included cable. This is the simplest and most reliable method. - Option B — WiFi Connection:
If you prefer a wireless setup:
Connect a USB external network adapter to your PC
Connect one of your PC’s network interfaces to the VCI’s WiFi hotspot (named by the VCI’s serial number, e.g., “988720000001”)
Connect your other network interface to the internet (needed for OEM software authentication)
Open the J2534Plus interface — it should show the VCI as connected
2 Verify the VCI Status
Before starting diagnostics, make sure the VCI is:
Not connected to the internet itself (for local mode, the VCI should not be in WiFi client mode)
Not under Remote Diagnostics Mode (the VCI should be in local mode only)
3. Launch the OEM Diagnostic Software
Open the OEM diagnostic software for the brand you’re working on (e.g., Toyota Techstream for a Toyota, Honda HDS for a Honda). When prompted to choose a VCI or communication device, select J2534Plus (or THINKCAR_J2534 depending on the software interface).
The software will now communicate with the vehicle through the THINKCAR VCI using the J2534 protocol. You’re ready to read fault codes, view live data, perform active tests, and execute reprogramming tasks — all at OEM level.
Part 4: Remote J2534 Diagnostics — Step by Step
Remote J2534 diagnostics allows you to diagnose a vehicle at a remote location using the ThinkLink platform. This is particularly useful for shops that want to offer remote diagnostic services to other shops or mobile technicians.
1 Ensure Internet Connectivity
Make sure your ThinkLink B remote service box is connected to the internet, and that your customer’s remote diagnostics VCI is also online and connected to the vehicle.
2 Connect the Hardware
Connect your PC to the ThinkLink B remote service box using a USB cord through the I/O port. Then instruct your customer (the remote technician) to:
- Turn on the vehicle’s ignition switch
- Connect their VCI to the vehicle’s OBD2 port
- Turn on the vehicle’s ignition switch
- Connect their VCI to the vehicle’s OBD2 port
3 Verify Both VCIs
Make sure both VCIs — yours (connected to ThinkLink B) and the customer’s (connected to the vehicle) — are connected properly and are under Remote Diagnostics Mode.
4 Establish the Remote Connection
Go to the ThinkLink remote diagnostics platform and complete the remote ticket connection process. Once the connection is established, choose “Switch to J2534 remote”.
5 Start Diagnostics
You are now ready to diagnose through the J2534 Protocol using your OEM diagnostic software. The remote VCI acts as the physical interface with the vehicle, while your local setup controls the diagnostic session.
FAQs
Q: Do I need a special subscription to use J2534?
A: You need two things: (1) a J2534-capable VCI device like the THINKCAR ThinkLink or MUCAR 892BT PRO, and (2) a valid subscription to the vehicle manufacturer’s OEM diagnostic software. OEM software subscriptions are typically sold as time-based passes (daily, monthly, or annual) by the manufacturers themselves. THINKCAR does not sell OEM software — you purchase that directly from the vehicle brand.
Q: Can I use J2534 to program every vehicle?
A: No. J2534 functions depend on vehicle support, OEM software availability, subscription requirements, and the specific service procedure. Some programming tasks may require compatible OEM software, additional authorization, or specific vehicle protocol support (CAN FD, DoIP). Always verify the vehicle’s J2534 compatibility before starting a session.
Q: What’s the difference between local and remote J2534 diagnostics?
A: Local J2534 diagnostics means you’re physically at the vehicle with your VCI connected directly to its OBD2 port. Remote J2534 diagnostics uses the ThinkLink platform to connect your local setup to a remote VCI at the vehicle’s location — allowing you to perform OEM-level diagnostics from a different shop or location.
Q: Does the MUCAR 892BT PRO support J2534 pass-through?
A: Yes. The MUCAR 892BT PRO is the only MUCAR scanner with J2534 pass-through capability (the standard MUCAR 892BT does not include this feature). It supports compatible OEM programming, CAN FD, and DoIP protocols, making it suitable for J2534 diagnostics with most major vehicle brands.
Q: Do I need to keep the J2534Plus program running during diagnostics?
A: No. Once the J2534Plus driver is installed, it operates as a background service. The program interface is only needed for initial setup, connection verification, WiFi configuration, and firmware updates. During actual diagnostic sessions, the driver handles VCI communication automatically.
Q: Do I Need OEM Software Subscriptions for J2534 Programming?
A:
Yes, in most cases.
A J2534 device serves as a pass-thru communication bridge between a PC and the vehicle, but it does not include the manufacturer’s proprietary programming applications, calibration files, or OEM security authorization.
To perform J2534 ECU programming, technicians typically require:
- A compatible J2534 hardware interface
- OEM diagnostic or reflash software applications
- An active OEM subscription or authorized user login
- Internet connectivity for software authentication, file retrieval, and security validation
Each vehicle manufacturer manages its own software environment, licensing system, and security access requirements.
For example:
- Toyota / Lexus: Techstream / TIS
- Honda / Acura: HDS / i-HDS
- Ford / Lincoln: IDS / FDRS
- GM (Chevrolet, GMC, Cadillac): SPS / SPS2 (Service Programming System)
- BMW: AOS / ISTA
The available capabilities are determined by OEM software support, vehicle compatibility, module architecture, and authorization level.
A J2534 pass-thru device does not bypass OEM security systems or unlock proprietary functions by itself. It enables authorized OEM applications to communicate with supported vehicle control modules through the J2534 interface.
Technicians should always verify OEM requirements before starting a programming procedure, including subscription status, supported ECU modules, vehicle coverage, and required Security Gateway (SGW) or security access authorization.
Q: Can One J2534 Device Support Multiple Vehicle Brands?
A:
Yes, but with important limitations.
A single J2534 device can support multiple vehicle brands when compatible OEM software, correct driver components, and required access permissions are available.
However, multi-brand compatibility does not mean every diagnostic or programming function is available on every vehicle model.
For example, a single J2534 pass-thru device may work with:
| Vehicle Brand | OEM Software |
|---|---|
| Toyota / Lexus | Techstream / TIS |
| Honda / Acura | HDS / i-HDS |
| BMW | AOS / ISTA |
| Ford / Lincoln | IDS / FDRS |
| GM (Chevrolet, GMC, Cadillac) | SPS / SPS2 |
Actual functionality depends on several factors:
Hardware Protocol Support
Modern vehicles require interfaces that support the communication technologies used by the vehicle. Protocol support such as CAN FD and DoIP (Diagnostic over IP) can be important for newer vehicle architectures when required by OEM software.
OEM Software Compatibility
Each manufacturer uses its own software platform, driver requirements, and supported workflows. The J2534 interface must be compatible with the selected OEM application.
Subscription and Security Access
Advanced functions, module programming, and gateway-related procedures may require active OEM subscriptions, user authorization, or security access credentials.
Vehicle and Module Coverage
Available functions depend on the vehicle model, ECU type, OEM software version, and supported programming procedures.
Summary:
A SAE J2534 pass-thru device should be evaluated based on hardware protocol support, driver stability, and confirmed OEM workflow compatibility rather than simply the number of vehicle brands listed.
