What is the difference between Thinkcar Thinkscar 689BT Pro, 689BT and Mucar 892BT lifetime-free-update diagnostic scanners?

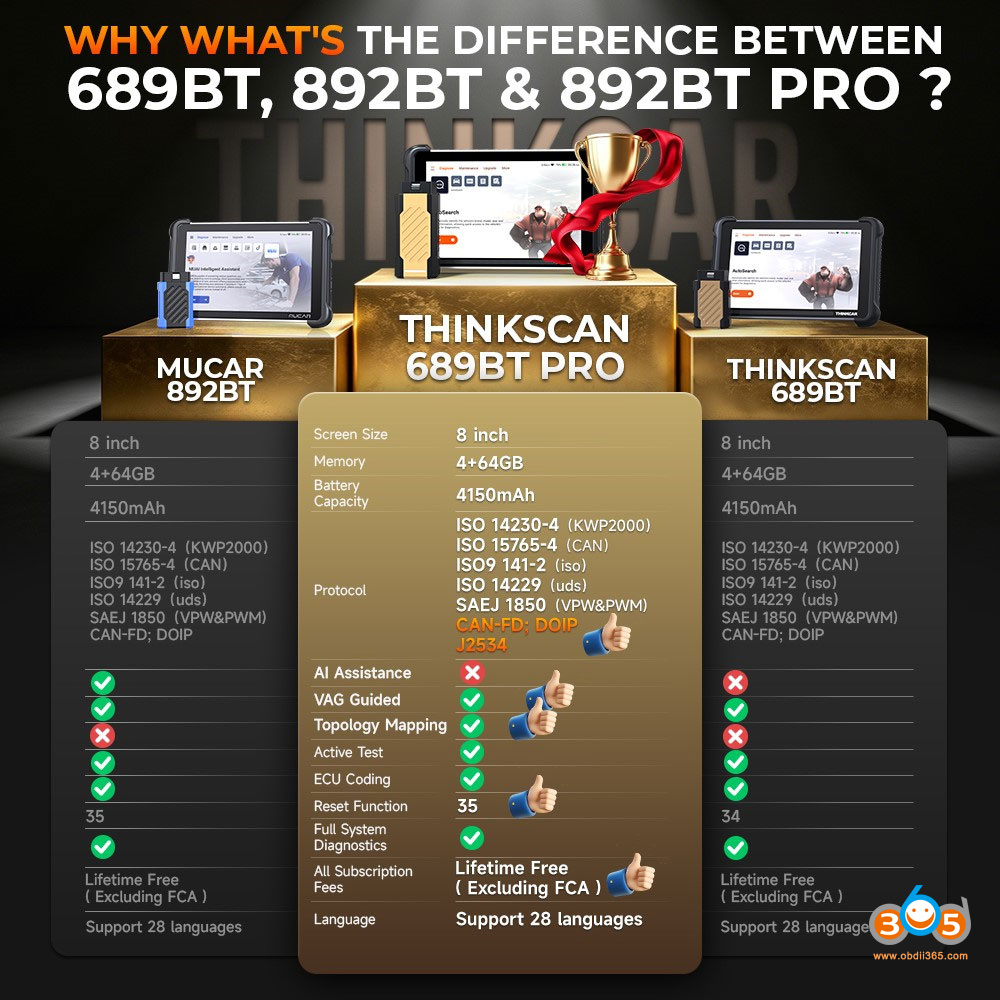

Check the table comparison below:
| Feature | Thinkcar 689BT Pro | Mucar 892BT | Thinkcar 689BT |
|---|---|---|---|
| Screen Size | 8 inch | 8 inch | 8 inch |
| Memory | 4+64GB | 4+64GB | 4+64GB |
| Battery Capacity | 4150mAh | 4150mAh | 4150mAh |
| Protocols | ISO14230-4 (KWP2000) ISO15765-4 (CAN) ISO19141-2 (iso) ISO14229 (uds) SAEJ1850 (VPW & PWM) CAN-FD: DOIP J2534 |
ISO14230-4 (KWP2000) ISO15765-4 (CAN) ISO19141-2 (iso) ISO14229 (uds) SAEJ1850 (VPW & PWM) CAN-FD: DOIP |
ISO14230-4 (KWP2000) ISO15765-4 (CAN) ISO19141-2 (iso) ISO14229 (uds) SAEJ1850 (VPW & PWM) CAN-FD: DOIP |
| AI Assistance | x | Yes | X |
| VAG Guided | Yes | Yes | Yes |
| Topology Mapping | Yes | x | x |
| Active Test | Yes | Yes | Yes |
| ECU Coding | Yes | Yes | Yes |
| Reset Function Count | 35 | 35 | 34 |
| Full System Diagnostics | Yes | Yes | Yes |
| Lifetime Free Fees | Yes (Excluding FCA) | Yes (Excluding FCA) | Yes (Excluding FCA) |
| Languages | Supports 28 languages | Supports 28 languages | Supports 28 languages |
In sum:
689BT Pro is the most advanced model, adding Topology Mapping, J2534 protocol— features not available on the other two.
892BT and 689BT are nearly identical in hardware and basic functions, except the 689BT has 34 reset functions while the 892BT and 689BT Pro both have 35. Mucar supports AI feature, 689BT series does not.
All three share the same screen size, memory, battery, language options, and lifetime free update policy (excluding FCA).
