How to connect OBDSTAR ECU Master programmer with OBDSTAR’s solder free gearbox adapter kit (7 in 1 /separate cables)?

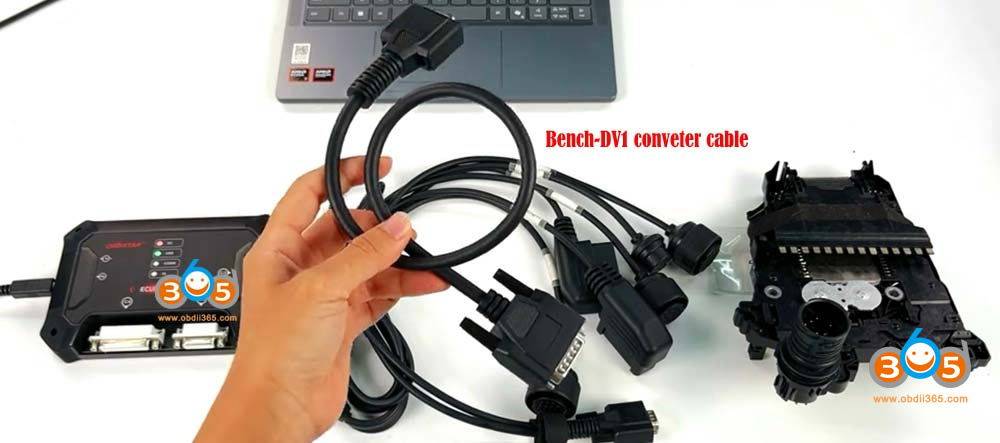

To connect ECU Master with gearbox adapter set, you also need an extra Bench-DV1 converter cable.

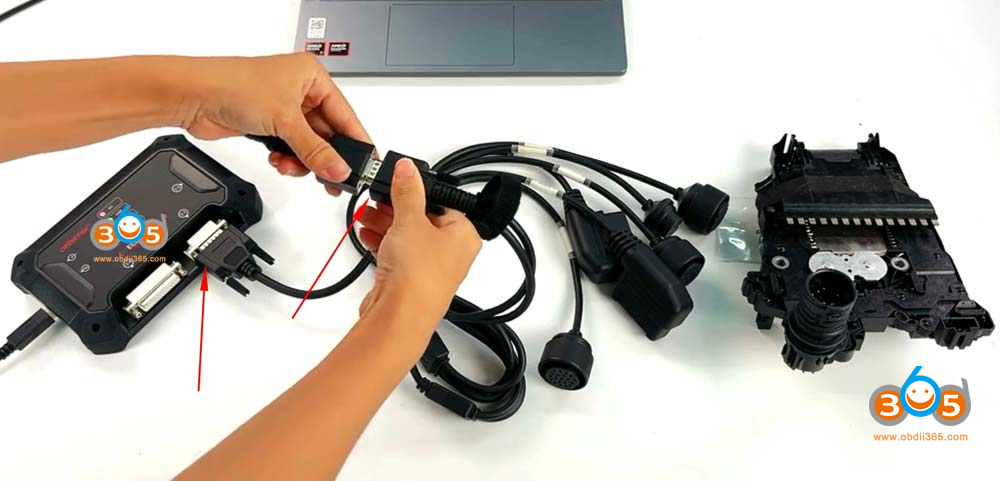

Connect Bench DV1 cable with ECU Master.
Connect the other end of the Bench-DV1 cable to the OBDSTAR gearbox adapter.

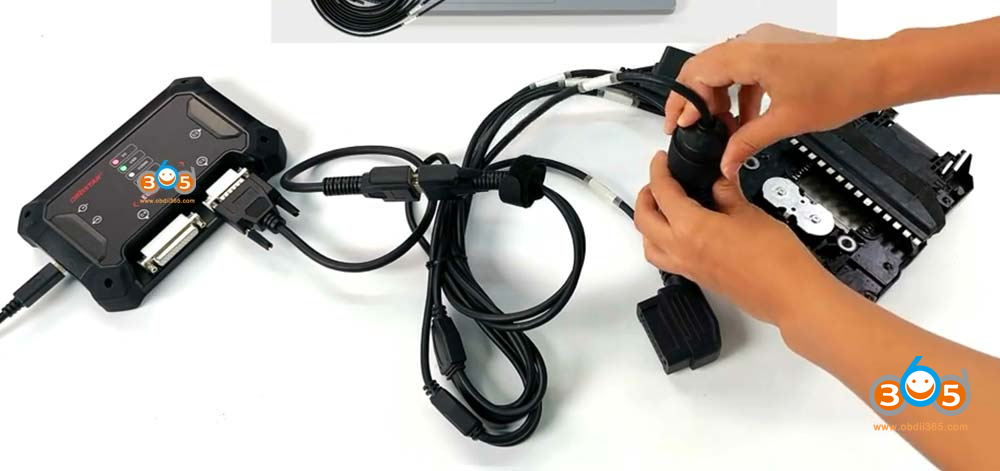

Then plug the corresponding connector into the transmission gearbox.

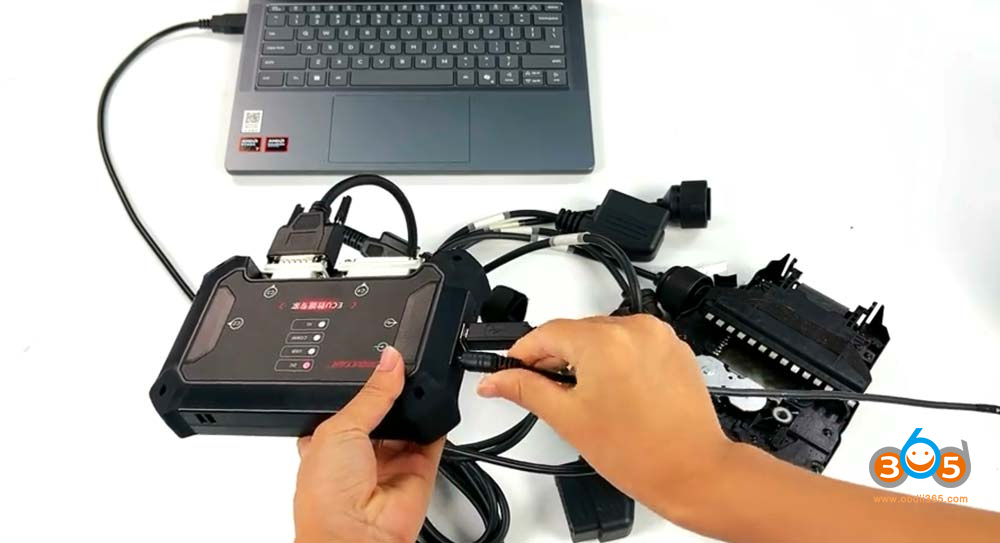

Finally, connect a power supply to the OBDSTAR ECU Master device.
Now we are ready to read and write the gearbox data without soldering.
