How to Read PSA 4A Proximity PIN Code with OBDSTAR G3 & Key SIM

The OBDSTAR Key SIM simulator is not only used for Toyota smart key simulation, but also read Peugeot/Citroen 4A proximity PIN code (New Feature).

Here we will show how to read PSA ID4A pin code with OBDSTAR X300 Classic G3 using Key SIM.

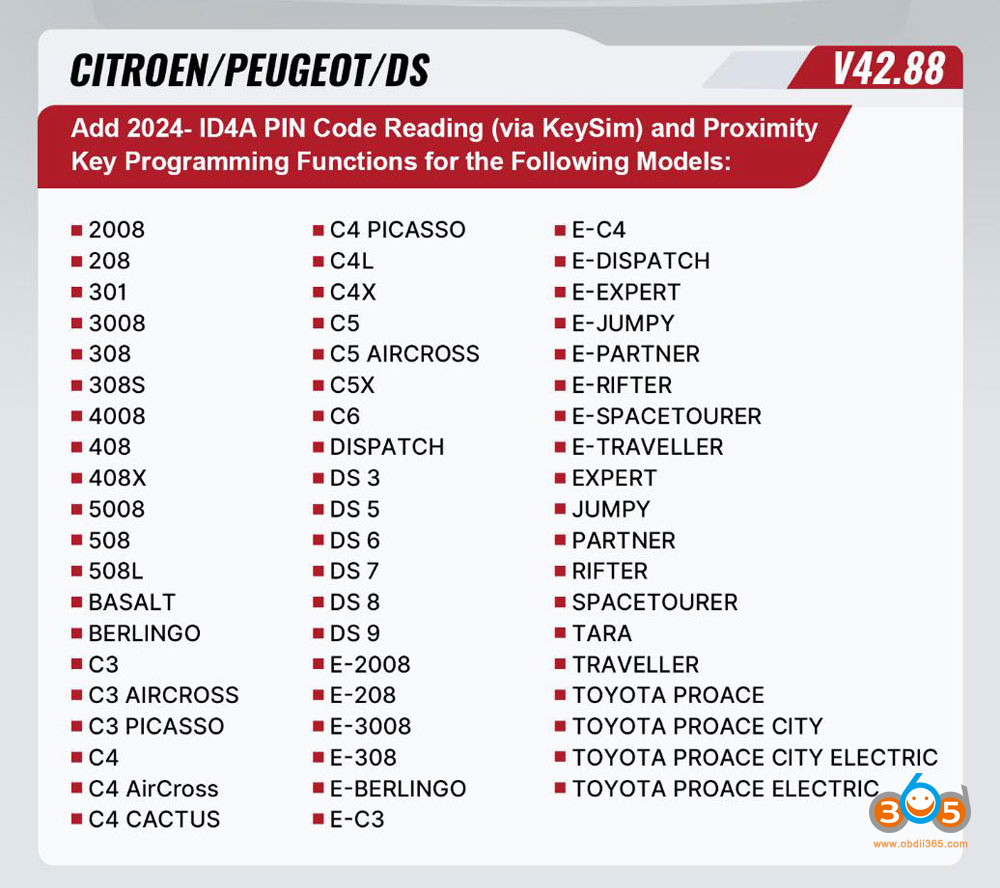

CITROEN/PEUGEOT V42.88
Add ID4A PIN Code Reading (via KeySim) and Proximity Key Programming Functions for the Following Models:

2008, 208, 301, 3008, 308, 308S, 4008, 408, 408X, 5008, 508, 508L, BASALT, BERLINGO, C3, C3 AIRCROSS, C3 PICASSO, C4, C4 AirCross, C4 CACTUS, C4 PICASSO, C4L, C4X, C5, C5 AIRCROSS, C5X, C6, DISPATCH, DS 3, DS 5, DS 6, DS 7, DS 8, DS 9, E-2008, E-208, E-3008, E-308, E-BERLINGO, E-C3, E-C4, E-DISPATCH, E-EXPERT, E-JUMPY, E-PARTNER, E-RIFTER, E-SPACETOURER, E-TRAVELLER, EXPERT, JUMPY, PARTNER, RIFTER, SPACETOURER, TARA, TRAVELLER

Model example: 2019 Peugeot 4008 ID4A smart key (all keys lost)

This is a way to obtain the pin code without having to wait up to 6 hours.

Procedure:

Connect G3 with vehicle via OBD socket.

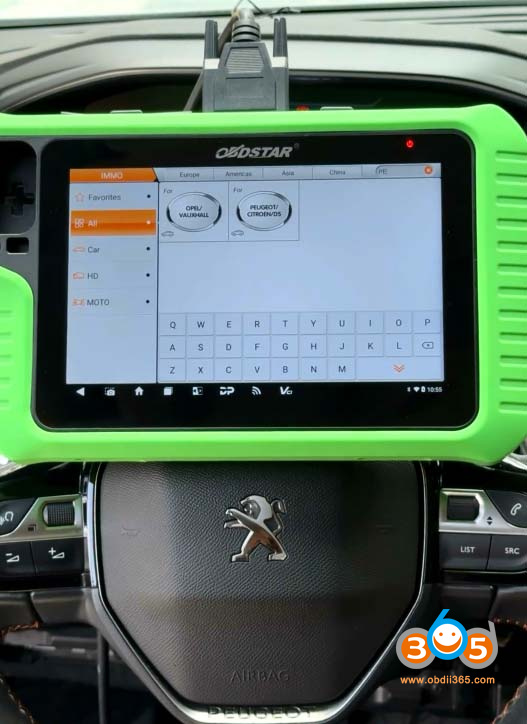

In G3, go to IMMO- Peugeot/Citroen.
Select the appropriate software version.

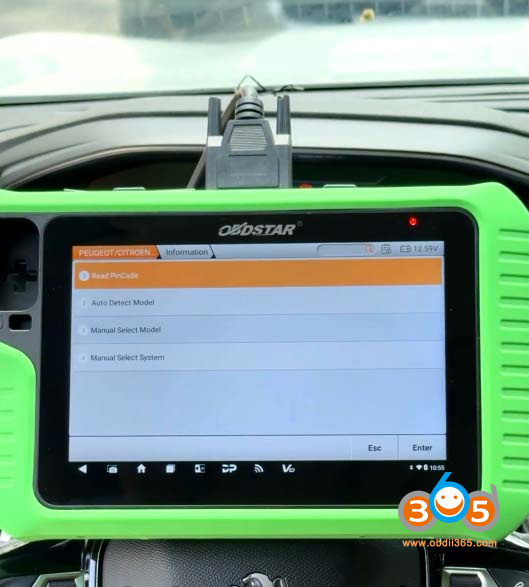

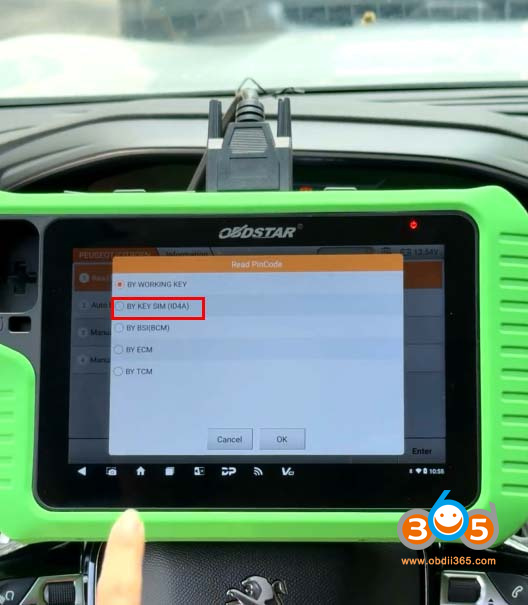

Select Read PIN Code function– By Key SIM (ID4A).

Turn on the emergency indicators and press the Start button once.

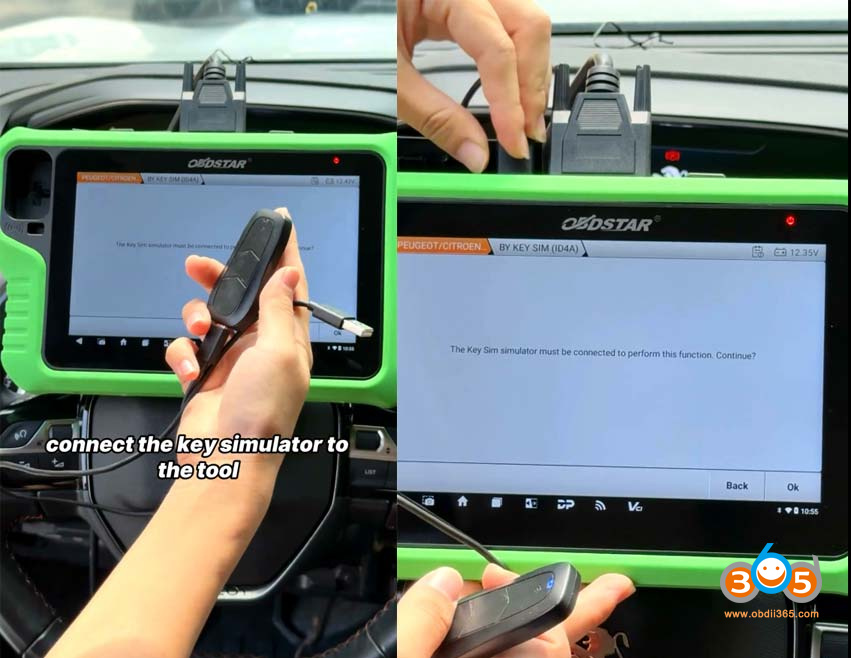

Connect Key SIM simulator to G3.

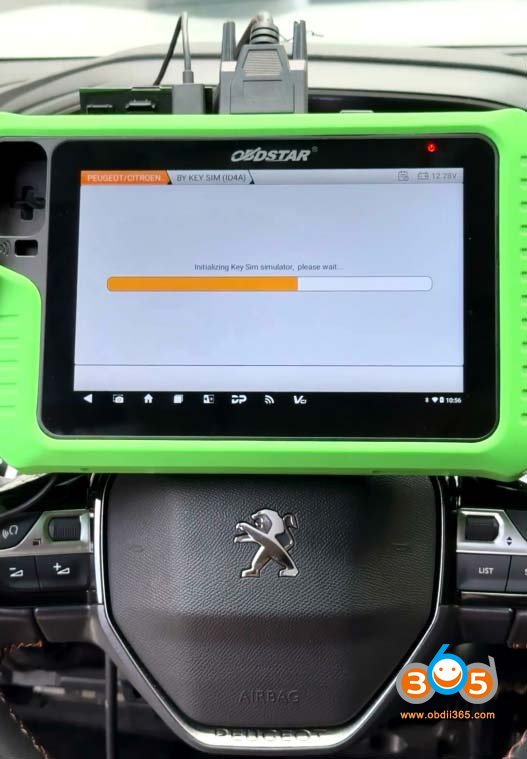

Initializing key SIM simulator.

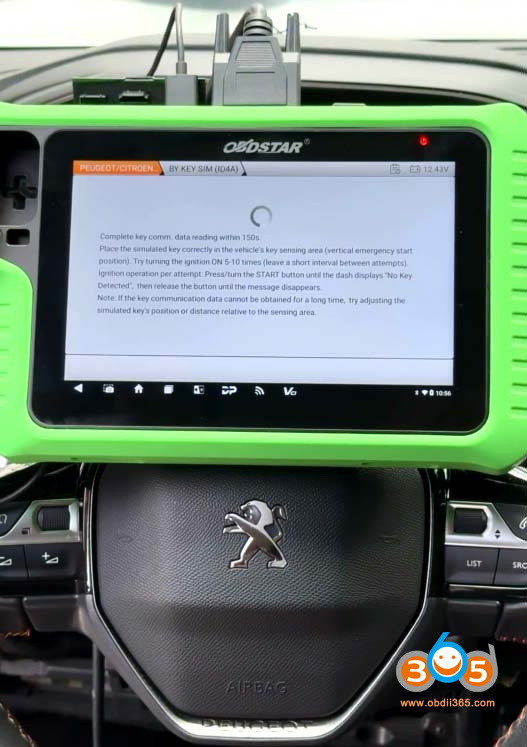

Complete follow operation within 150s:

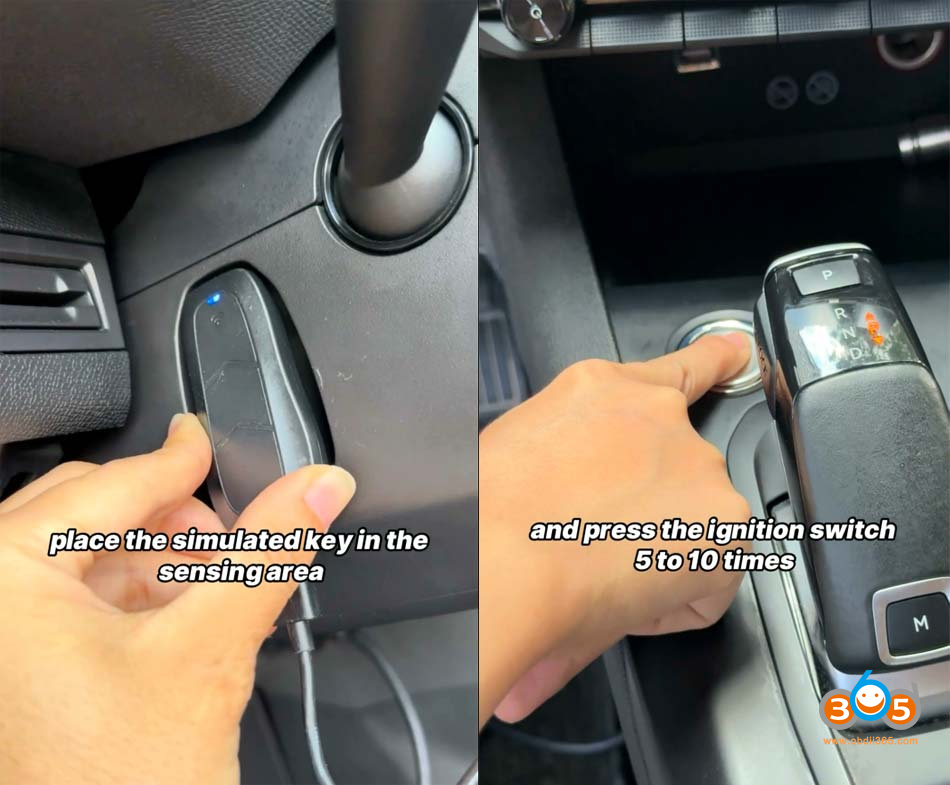

Place the simulated key correctly in the vehicle’s key sensing area (emergency start position).
Try turning the ignition on 5-10 times.
Press the Start button until the dash displays “No key detected”. Then release the button until the message disappears.

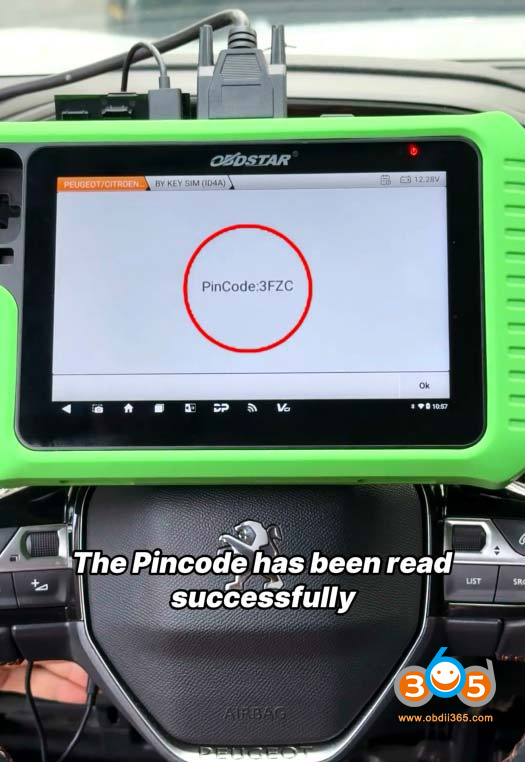

OBDSTAR G3 calculates 4-digit pin code successfully.

Now you can proceed with key programming operation.

FYI: Key SIM Simulator function list:

• Supports 46, 4D data collection;
• Supports PORSCHE(2005-2010) 46 Pincode calculation;
• Supports HYUNDAI/KIA 46 Pincode calculation;
• Supports TOYOTA DSTAES(8A-H) Blade key simulation;
• Supports SUBARU DSTAES(8A-H) Blade key simulation;
• Supports TOYOTA DST40(94/D4) Smart key simulation;
• Supports TOYOTA DST80(98) Smart key simulation;
• Supports SUBARU DST80(F1/78) Smart key simulation;
• Supports TOYOTA DSTAES(8A-A8) Smart key simulation(all year models);
• Supports TOYOTA DSTAES(8A-A9) Smart key simulation(all year models);
• Supports TOYOTA DSTAES(8A-39) Smart key simulation;
• Supports TOYOTA DSTAES(8A-AA) Smart key simulation(all year models);
• Supports TOYOTA 4A Smart key simulation;
• Supports PSA 4A pin code calculation
