BYD Song Plus 2021- instrument cluster mileage correction using CG100X programmer.

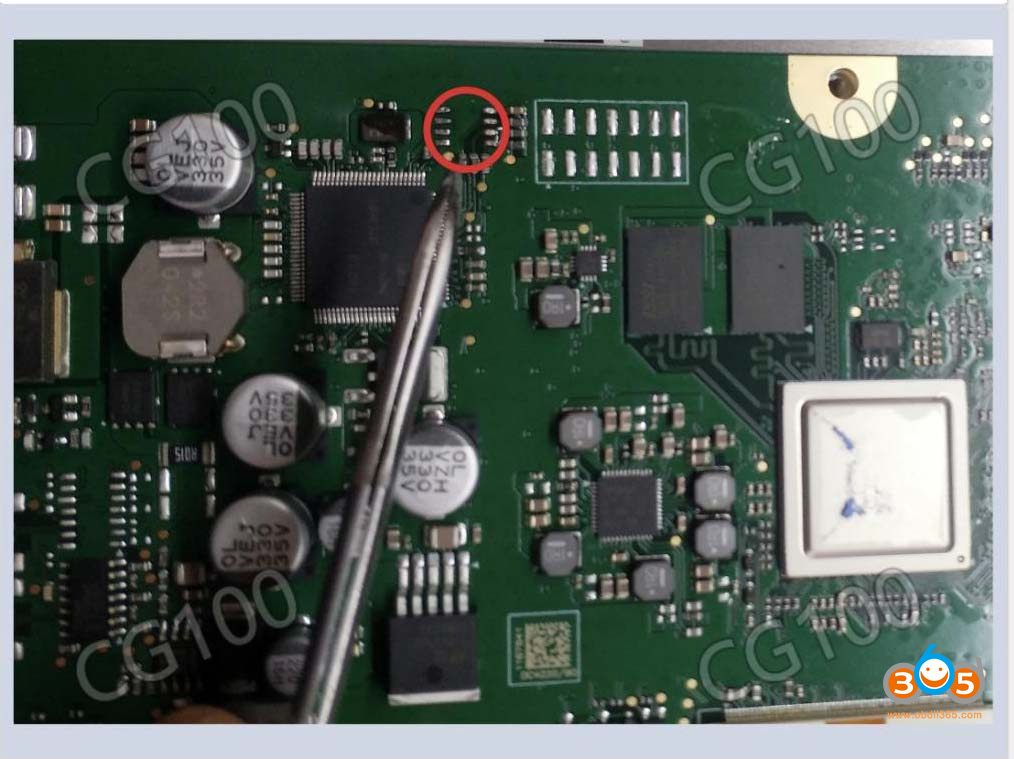

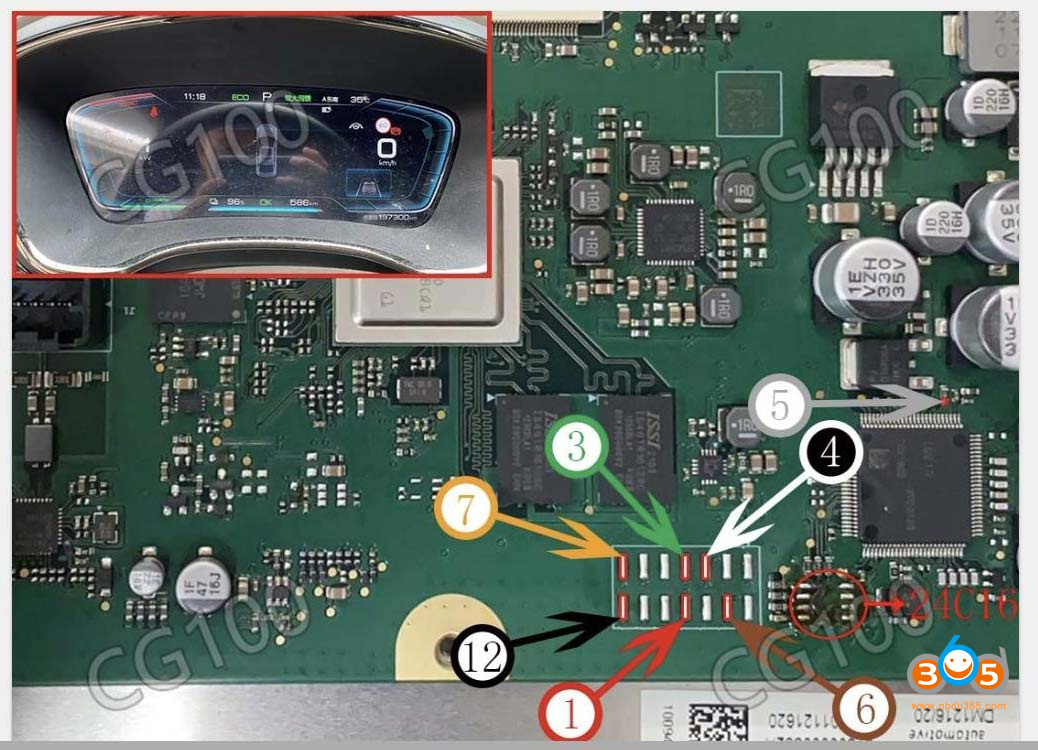

2021– 24C16 +R7F701621 Hybrid Cluster
Please check whether the chip model and mileage data are accurate.
For this model:
Both the 24C16 and R7F701621 need to be processed.

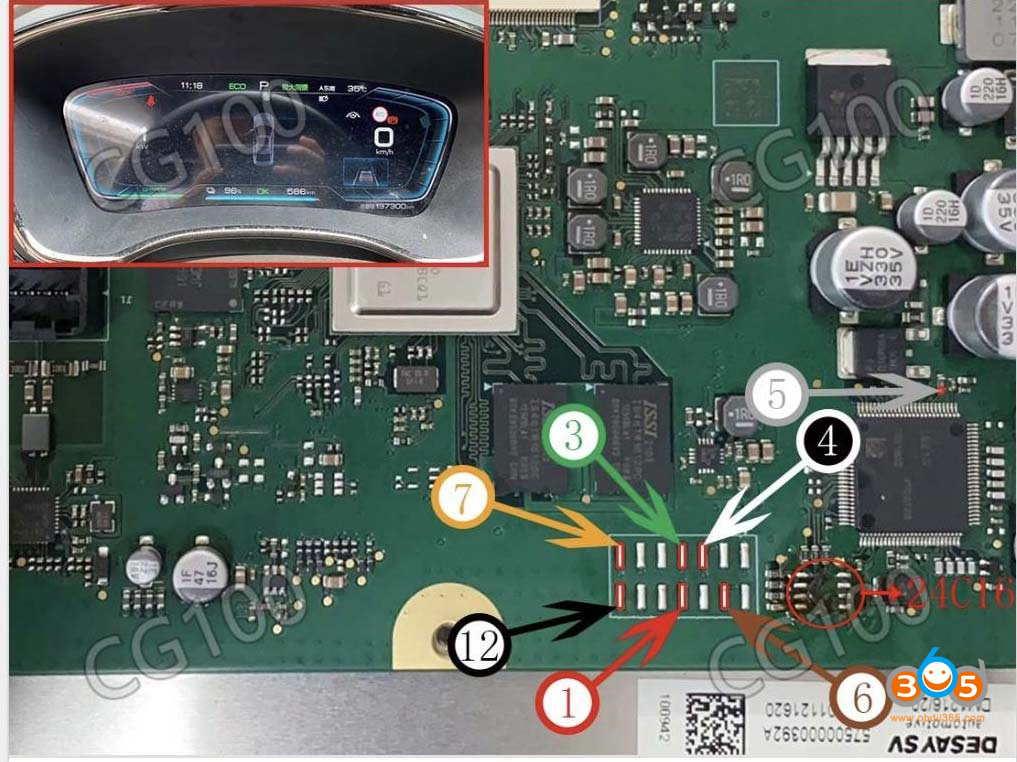

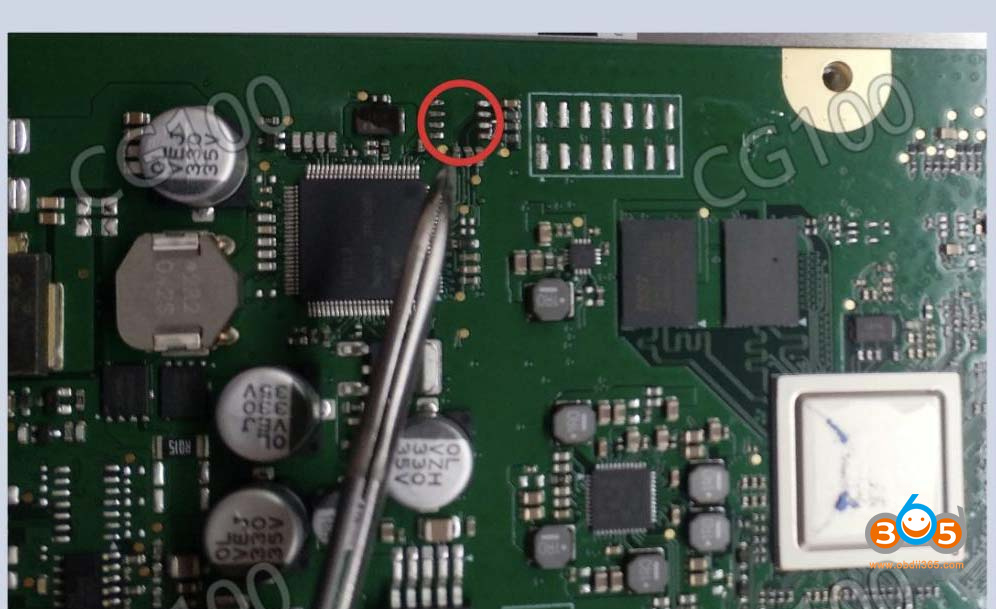

2023– 24C16 + R7F701621 Cluster
Please check whether the chip model and mileage data are accurate.
If the mileage calculated by the CPU is 0, then no modification is required.

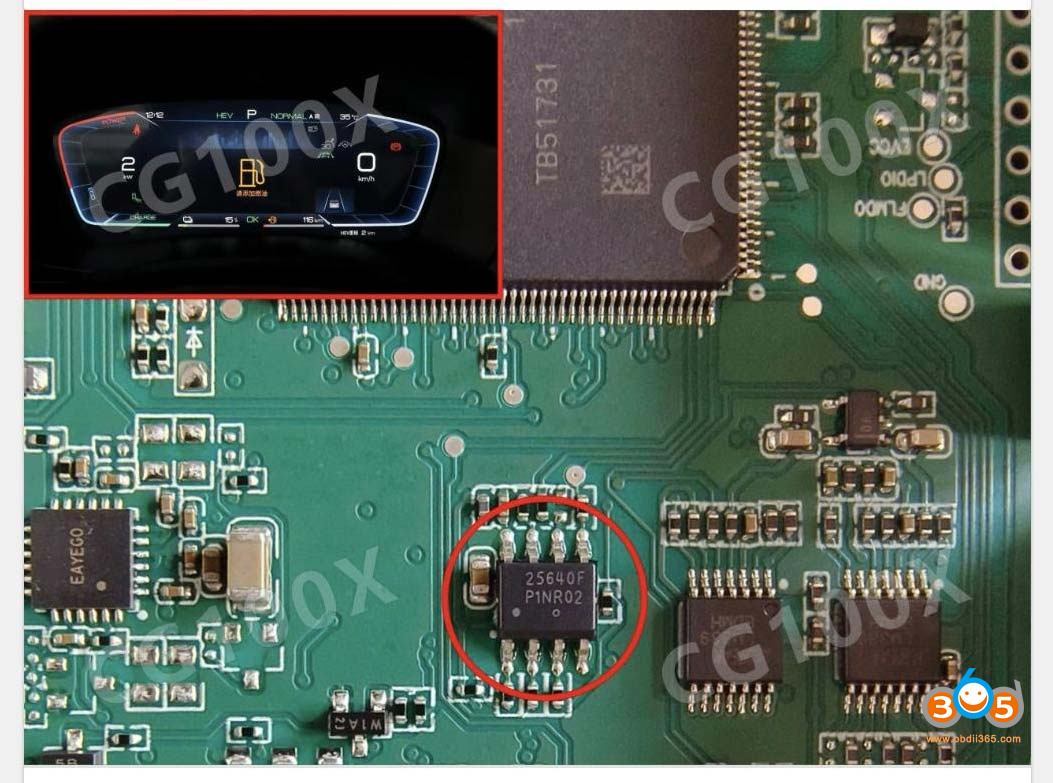

Cluster 25640 – Left Body Control Module (Hybrid)
Do not use the 8-pin clip (no-solder) method for reading/writing.
Please confirm the chip model before operating. If the mileage is calculated incorrectly, do not modify.

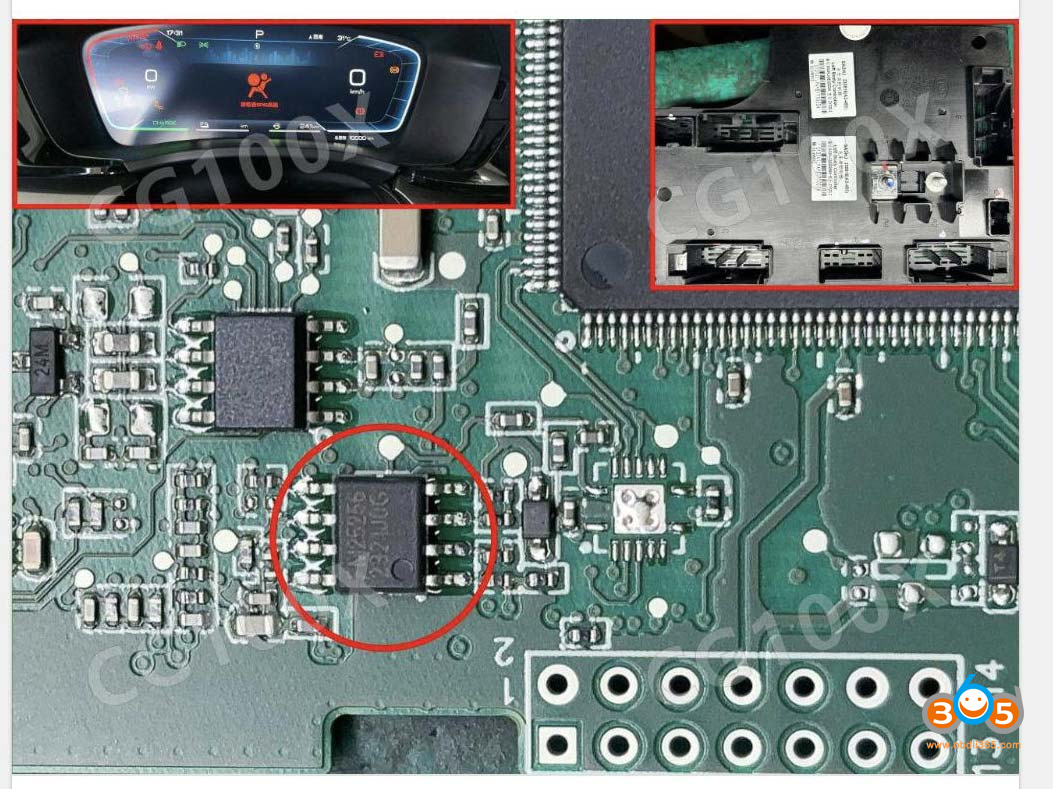

Cluster 25256 – Left Body Control Module (Hybrid)
Do not use the 8-pin clip (no-solder) method for reading/writing.
Please confirm the chip model before operating. If the mileage is calculated incorrectly, do not modify.
