How to Renew BMW FEM/BDC ECU with Auro OtoSys IM600/IM100

This manual introduces how to conduct BMW FEM/BDC ECU Renew on Auro OtoSys IM100/IM600 key programmer.





Two options are available when accessing FEM/BDC Renew:

 Copy Data Update When the immobilizer information of the vehicle can be read

from the original FEM/BDC module, perform this function to read the information

and write it into the replacing FEM/BDC module.

 Calculate Data Update : When the immobilizer information of the vehicle cannot

be read from the original FEM/BDC module, perform this function to generate

the information via the input VIN code, vehicle frequency and engine ISN code

and then write it into the replacing FEM/BDC module.



NOTE

Illustrations used in this manual are samples, and the actual testing screens may vary by

vehicle. Observe the menu titles and on-screen instructions to make correct selections

and operations.



FEM/BDC Renew via Copy Data Update

Preparation

1. Attention: If there’s an ELV in the vehicle, the ELV may not be unlocked after

performing FEM/BDC Renew. You’ll need to solve the locked problem yourself, so

please start the operation with careful consideration.

2. To perform the Copy Data Update function, a working key or the engine ISN code is

needed.

3. The hardware version of the original and replacing modules can only vary slightly.

Otherwise, the DTCs of the vehicle may not be cleared.

4. Remove the FEM/BDC module from the vehicle.

Removing the FEM/BDC Module
The FEM/BDC module is located at the A-pillar of the front passenger side.
 Procedures to remove the FEM/BDC module from the vehicle:
1). Unclip the front door sill cover strip at the passenger side.
2). Remove the bottom right instrument trim panel and disconnect plug connections behind it.
3). Remove the side trim panel at the passenger side.
4). Remove the cover at the lower part of the module.
5). Unlock the positive battery cable connector.
6). Disconnect the plug connections to the module.
7). Release the bolt from the module.

8). Remove the module from the vehicle.

5. Conduct ECU preprocessing on the replacing (used) module and the original module

to make them able to learn keys. No ECU preprocessing is needed for the replacing

module if it is a brand new one.

6. Prepare a blank key.


Procedures

1. Connect the OtoFlash to the original FEM/BDC module via the included main cable.

2. Connect the OtoFlash to the IM600 tablet via USB connection.

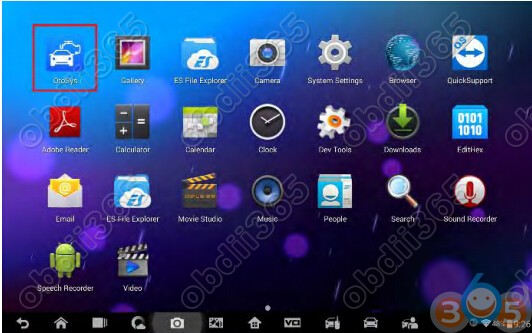

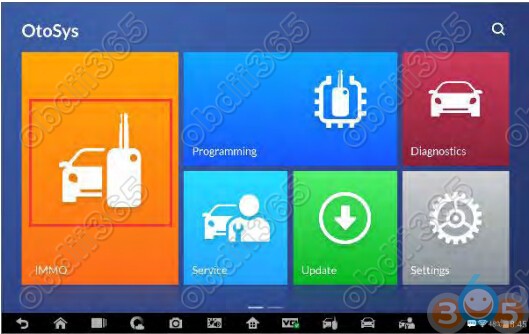

3. Turn on the IM600 tablet and tap OtoSys > IMMO. A vehicle menu displays and a

disclaimer prompts up. Tap Accept to continue

auro-otosys-im600-bmw-fem-renew-1
auro-otosys-im600-bmw-fem-renew-2

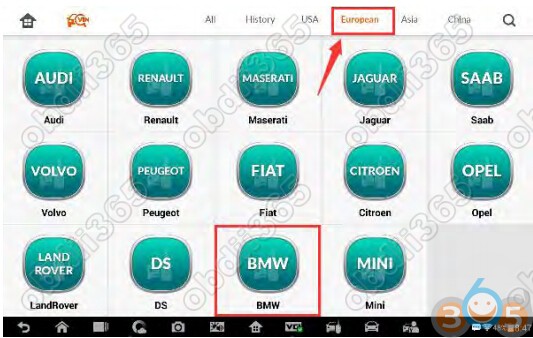

4. Tap BMW on the vehicle menu.
auro-otosys-im600-bmw-fem-renew-3

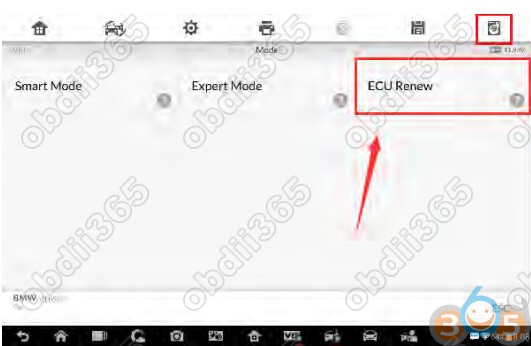

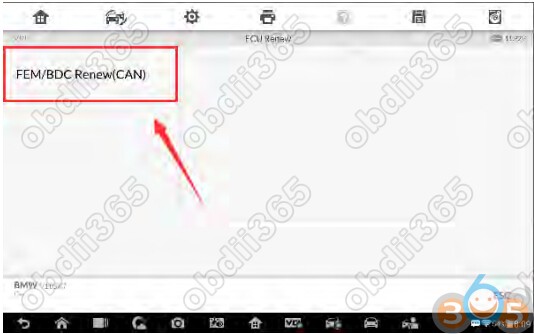

5. Tap ECU Renew > FEM/BDC Renew (CAN).

NOTE

1. You can click the icon near the top-right corner to record the operation data. If you

encounter any difficulties, click the icon again to send us the data and the problem,

so that our engineers could help. The network should be connected when uploading

the data.

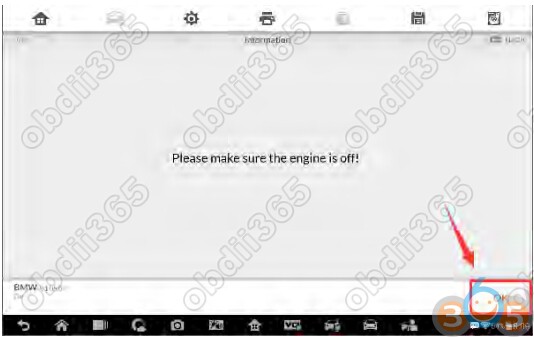

2. Please make sure the engine is off before the operation gets started.

auro-otosys-im600-bmw-fem-renew-4
auro-otosys-im600-bmw-fem-renew-5
auro-otosys-im600-bmw-fem-renew-6

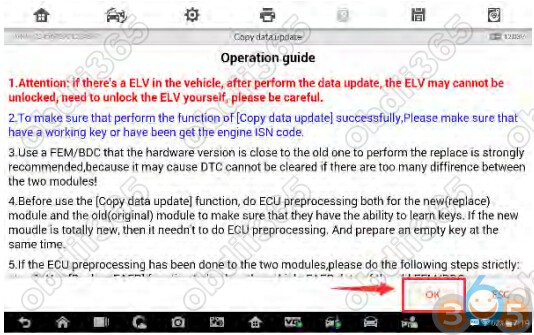

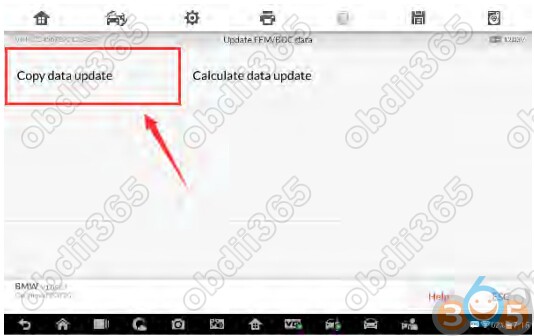

6. Tap Copy Data Update, read the notes and procedures listed in the operation guidecarefully, and then tap OK to continue.

NOTE

If you don’t strictly follow the steps, the data may be lost or the FEM/BDC Renew

operation may fail.

auro-otosys-im600-bmw-fem-renew-7
auro-otosys-im600-bmw-fem-renew-8

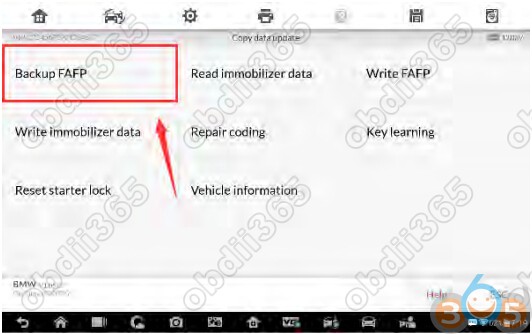

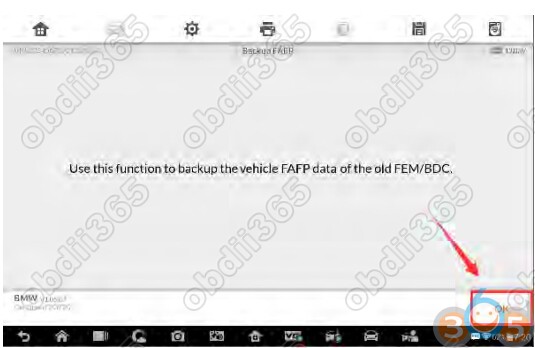

7. Tap Backup FAFP on the function menu to backup the FAFP data of the originalFEM/BDC module. Read the function information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-9
auro-otosys-im600-bmw-fem-renew-10

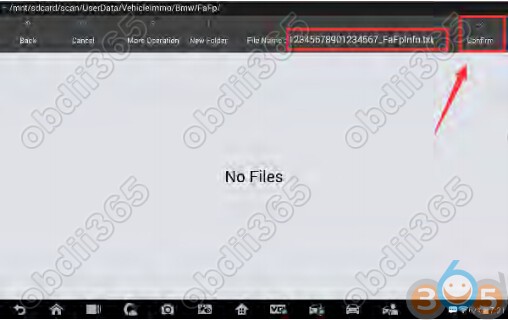

8. Tap OK > Confirm to save the data. When a “File saved successfully!” messagedisplays, tap OK and exit to the function menu.

auro-otosys-im600-bmw-fem-renew-11
auro-otosys-im600-bmw-fem-renew-12
auro-otosys-im600-bmw-fem-renew-13

NOTE1. The data file can be renamed.

2. Memorize or note down the name and location of the file for later use.

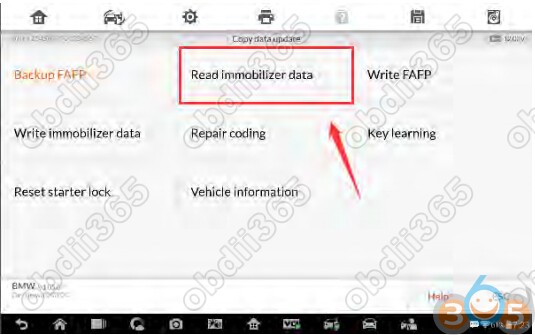

9. Tap Read immobilizer data to backup the immobilizer data of the original module.

Read the function information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-14
auro-otosys-im600-bmw-fem-renew-15

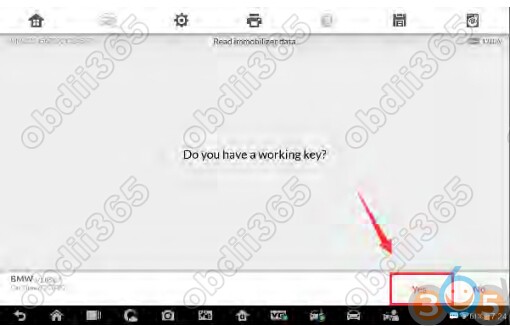

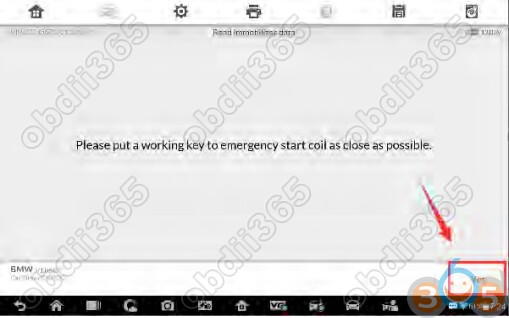

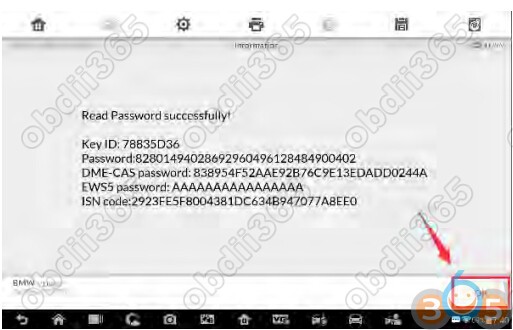

10. When a “Do you have a working key?” message displays, make selectionaccordingly. Tap Yes and then put the working key close to the emergency start coil

to read the password information, or tap No and move on to read the immobilizer

data.

NOTE

If the working key is verified in this step, it can be directly used to start the engine when

the FEM/BDC Renew is completed.

auro-otosys-im600-bmw-fem-renew-16
auro-otosys-im600-bmw-fem-renew-17
auro-otosys-im600-bmw-fem-renew-18

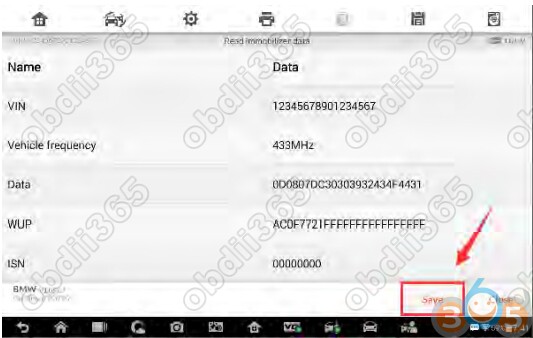

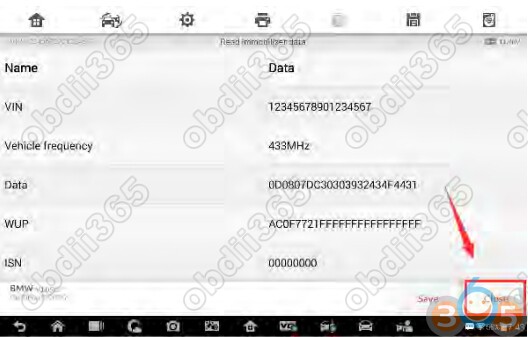

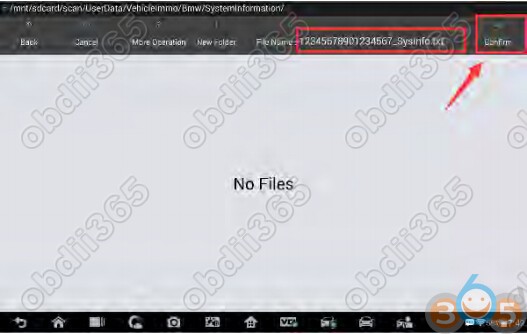

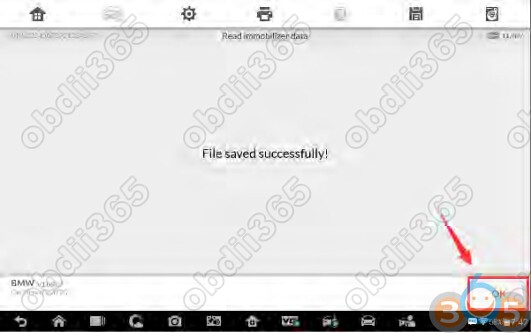

11. When the immobilizer data is read successfully, tap Save > Confirm to save thedata. When a “File saved successfully!” message displays, tap OK > Close and exit

to the function menu.

NOTE

1. The data file can be renamed.

2. Memorize or note down the name and location of the file for later use.

auro-otosys-im600-bmw-fem-renew-19
auro-otosys-im600-bmw-fem-renew-20
auro-otosys-im600-bmw-fem-renew-21
auro-otosys-im600-bmw-fem-renew-22

12. When Read Immobilizer Data is completed, connect the OtoFlash with the replacingmodule via the included main cable.

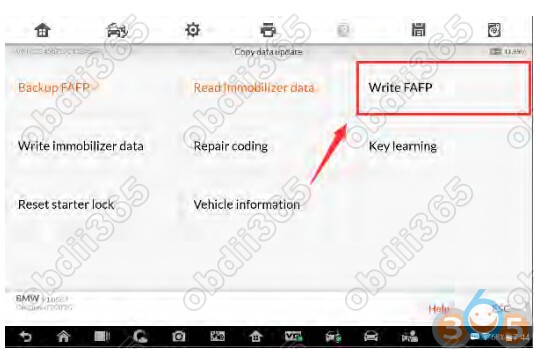

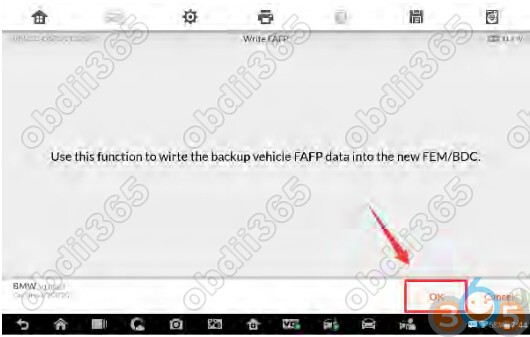

13. Then tap Write FAFP to write the saved FAFP data into the replacing FEM/BDC

module. Read the function information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-23
auro-otosys-im600-bmw-fem-renew-24

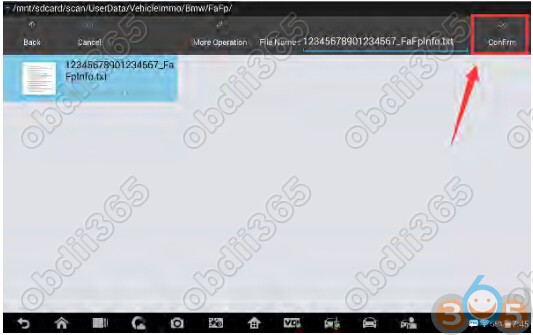

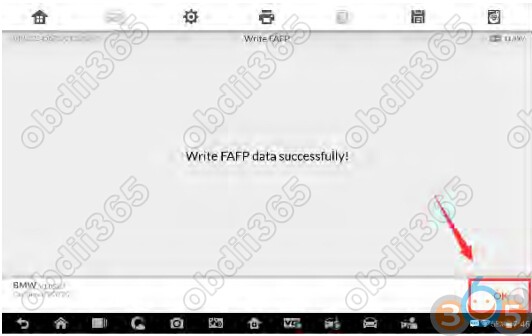

14. Select the saved FAFP data file and tap Confirm to complete Write FAFP. Then tapOK and exit to the function menu.

auro-otosys-im600-bmw-fem-renew-25
auro-otosys-im600-bmw-fem-renew-26

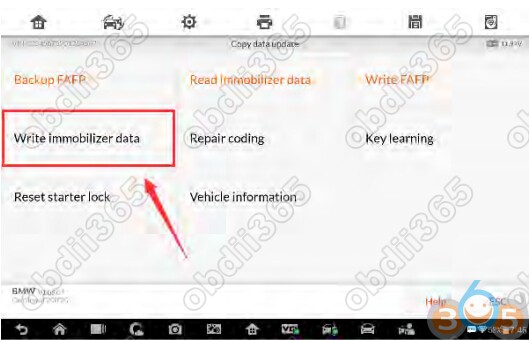

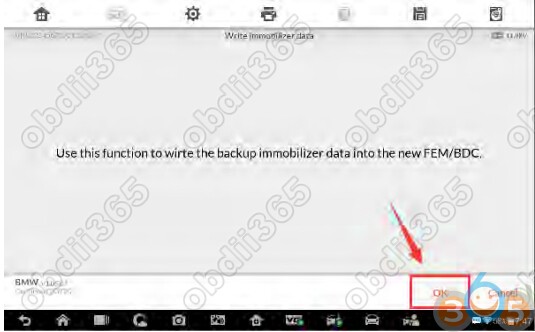

15. Tap Write immobilizer data to write the saved immobilizer data into the replacingmodule.

auro-otosys-im600-bmw-fem-renew-27
auro-otosys-im600-bmw-fem-renew-28

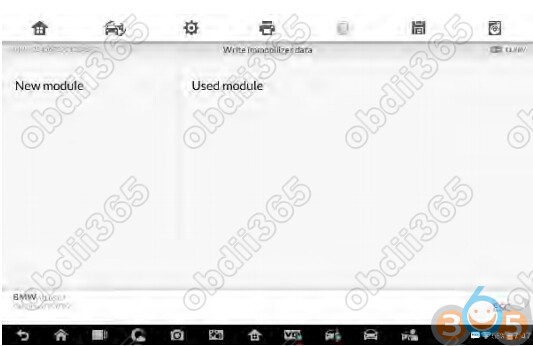

16. When a module menu displays, make selection accordingly.NOTE

 New Module: Perform this function if the replacing module is a brand new one.

 Used Module: Perform this function if the replacing module is a used one.

auro-otosys-im600-bmw-fem-renew-29

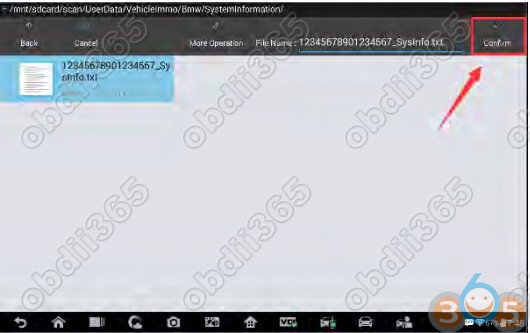

17. Select the saved immobilizer data file and tap Confirm to continue.
auro-otosys-im600-bmw-fem-renew-30

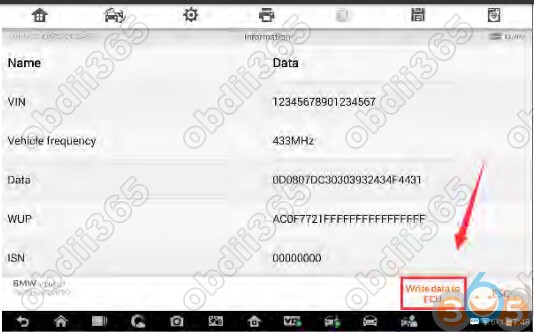

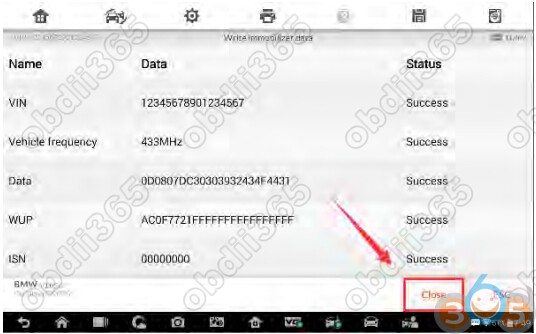

18. Tap Write data to ECU. When Write Data to ECU is completed successfully, tapClose and exit to the function menu.

auro-otosys-im600-bmw-fem-renew-31
auro-otosys-im600-bmw-fem-renew-32

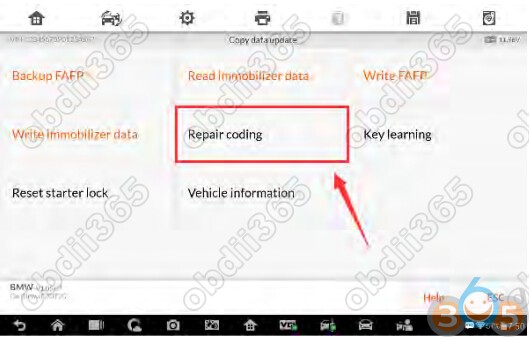

19. Tap Repair coding to repair the coding of the new FEM/BDC module. Read thefunction information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-33
auro-otosys-im600-bmw-fem-renew-34

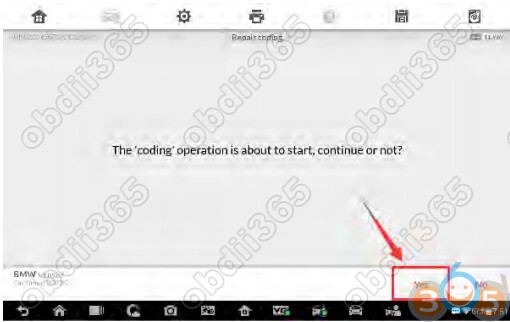

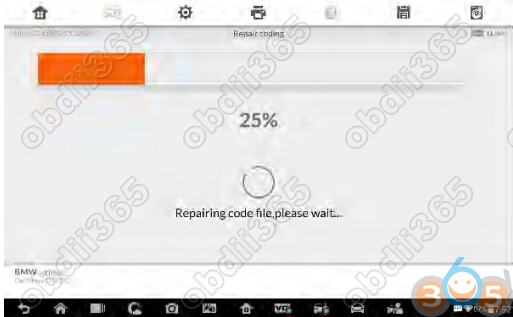

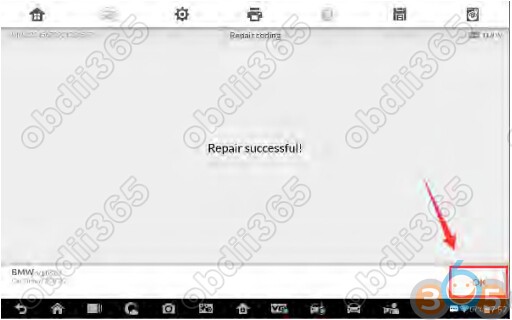

20. Tap Yes to continue the coding operation. When Repair Coding is completedsuccessfully, tap OK and exit to the function menu.

auro-otosys-im600-bmw-fem-renew-35
auro-otosys-im600-bmw-fem-renew-36
auro-otosys-im600-bmw-fem-renew-37

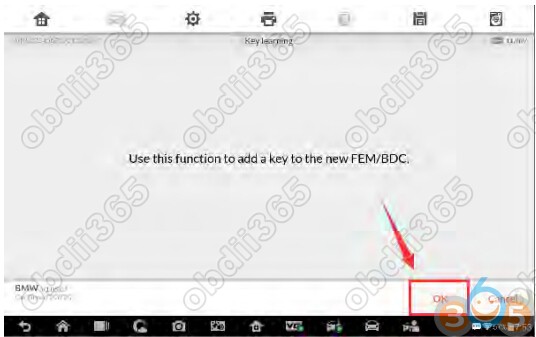

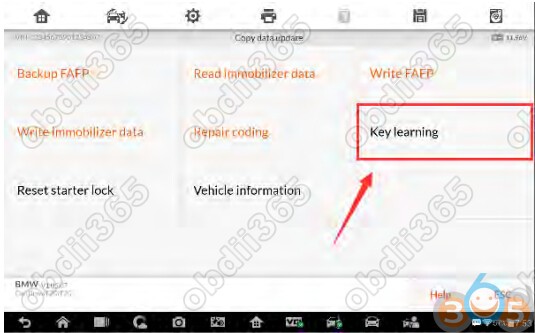

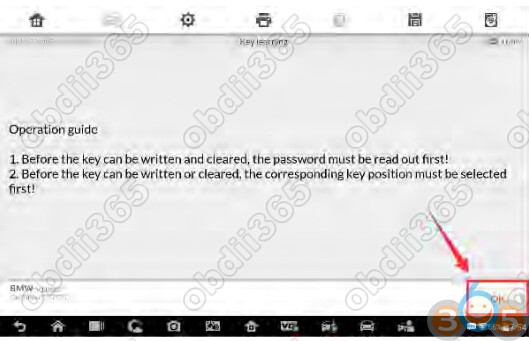

21. Tap Key learning to add a key to the new FEM/BDC module. Read the functioninformation and tap OK to continue.

NOTE

1. The password must be read out before the key can be written or cleared.

2. A key position must be selected before the key can be written or cleared.

auro-otosys-im600-bmw-fem-renew-38
auro-otosys-im600-bmw-fem-renew-39
auro-otosys-im600-bmw-fem-renew-40

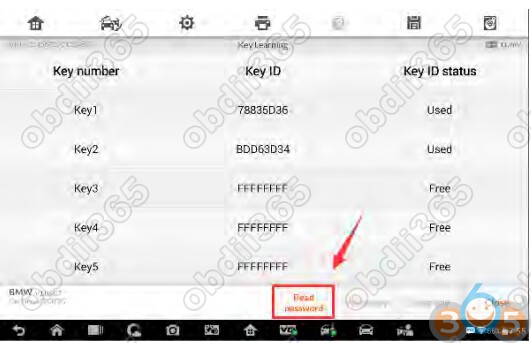

22. Tap Read password to read the password information of the key.
auro-otosys-im600-bmw-fem-renew-41

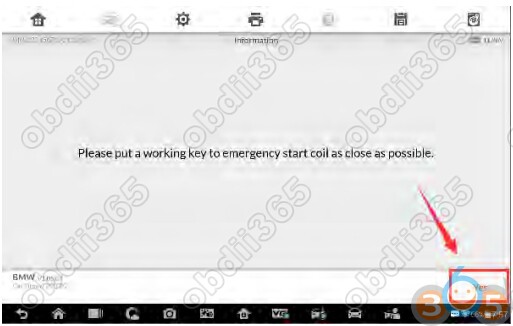

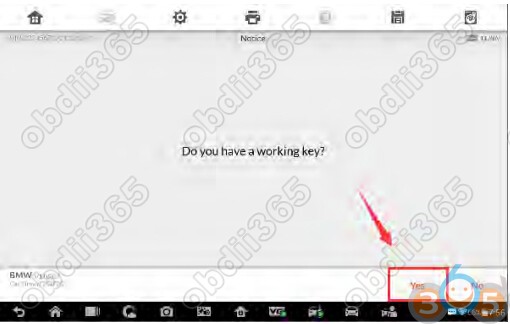

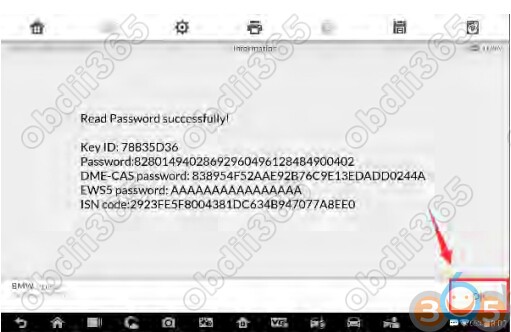

23. When a “Do you have a working key?” message displays, make selectionaccordingly. Tap Yes and then put the original key close to the emergency start coil

to read the password information, or tap No to input the engine ISN code.

auro-otosys-im600-bmw-fem-renew-42
auro-otosys-im600-bmw-fem-renew-43
auro-otosys-im600-bmw-fem-renew-44

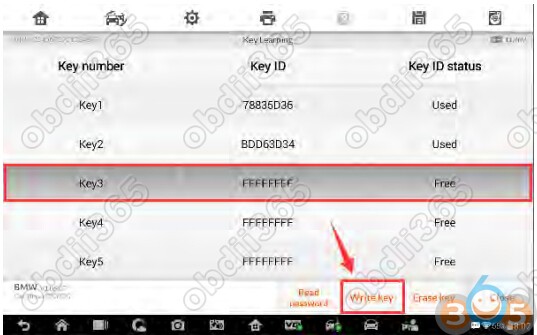

24. Select a FREE key position and then tap Write key.
auro-otosys-im600-bmw-fem-renew-45

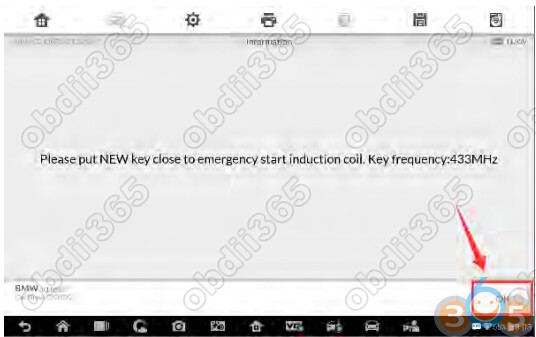

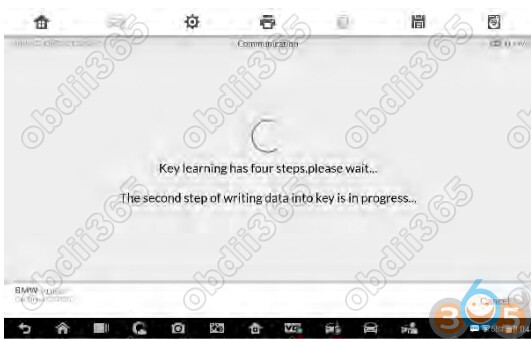

25. Follow the instruction to put the NEW key close to the emergency start coil and tapOK to start Key Learning.

auro-otosys-im600-bmw-fem-renew-46
auro-otosys-im600-bmw-fem-renew-47

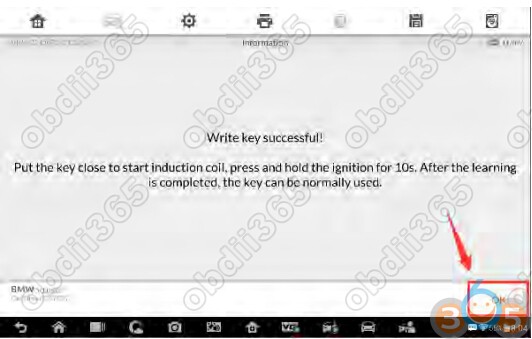

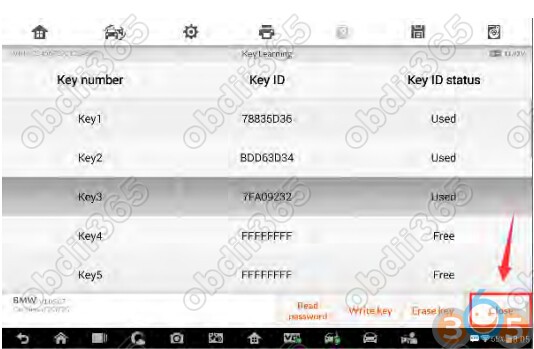

26. When a “Write Key successful!” message displays, tap OK to check the key ID status.Then tap Close to exit to the function menu.

auro-otosys-im600-bmw-fem-renew-48
auro-otosys-im600-bmw-fem-renew-49

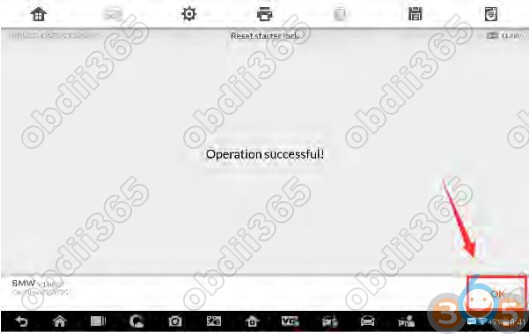

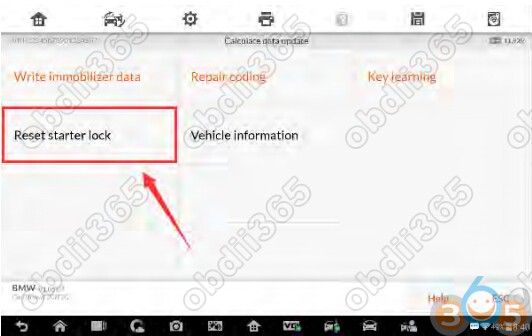

27. Tap Reset starter lock to reset the starter lock of the new FEM/BDC module. Readthe function information and tap OK to continue. When this function is done

successfully, Copy Data Update is completed.

auro-otosys-im600-bmw-fem-renew-50
auro-otosys-im600-bmw-fem-renew-51
auro-otosys-im600-bmw-fem-renew-52

28. Install the replacing FEM/BDC module into the vehicle and check if the engine canbe started.

NOTE

1. DTCs may be detected and specific machines are needed for programming, coding

and clear DTC.

2. If the remote function of the original working key doesn’t work after the operation,

please disable the key first and then enable it via Expert Mode > FEM/BDC > Key

enabled/disabled.

3. The newly added keys can be erased if you don’t need them.



FEM/BDC Renew via Calculate Data Update


Preparation

1. Attention: If there’s an ELV in the vehicle, the ELV may not be unlocked after

performing FEM/BDC Renew. You’ll need to solve the locked problem yourself, so

please start the operation with careful consideration.

2. Attention: All original keys won’t be accepted when performing the Calculate Data

Update function.

3. To perform the Calculate Data Update function, the VIN code, vehicle frequency and

engine ISN code are needed. This information can be obtained via Expert mode.

4. The hardware version of the replacing module can only vary slightly from that of the

original module. If two versions vary considerably, the DTCs of the vehicle may not

be cleared.

5. Remove the FEM/BDC module from the vehicle.

6. Conduct ECU preprocessing on the replacing (used) module and the original module

to make them able to learn keys. No ECU preprocessing is needed for the replacing

module if it is a brand new one.

7. Prepare two blank keys.

 Procedures

1. Connect the OtoFlash to the replacing FEM/BDC module via the included main cable.

2. Connect the OtoFlash to the IM600 tablet via USB connection.

3. Turn on the Auro OtoSys IM600 tablet and tap OtoSys > IMMO. A vehicle menu displays and a

disclaimer prompts up. Tap Accept to continue.

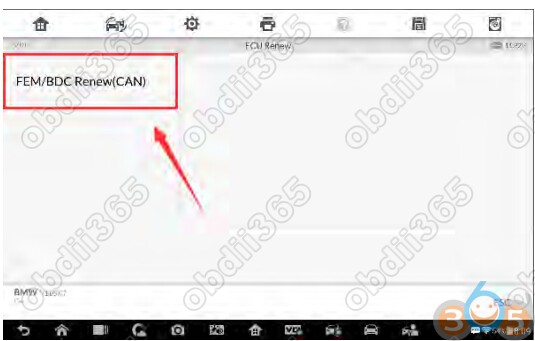

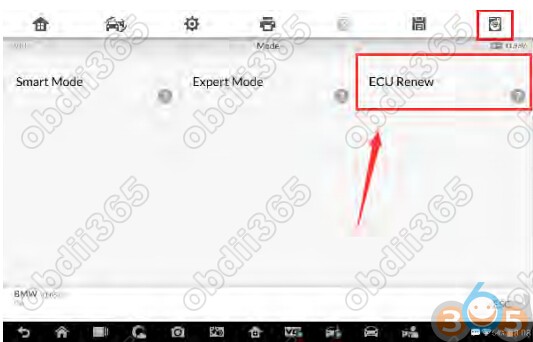

4. Tap BMW on the vehicle menu.5. Tap ECU Renew > FEM/BDC Renew (CAN).

NOTE

1. You can click the icon near the top-right corner to record the operation data. If you

encounter any difficulties, click the icon again to send us the data and the problem,

so that our engineers could help. The network should be connected when uploading

the data.

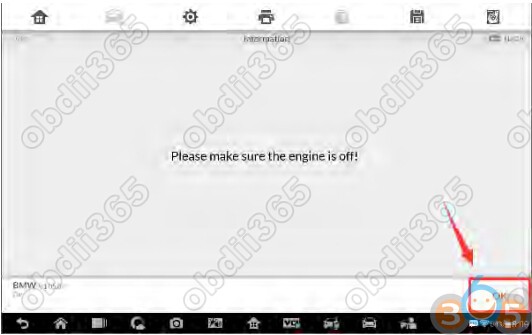

2. Please make sure the engine is off before the operation gets started.
auro-otosys-im600-bmw-fem-renew-53
auro-otosys-im600-bmw-fem-renew-54
auro-otosys-im600-bmw-fem-renew-55

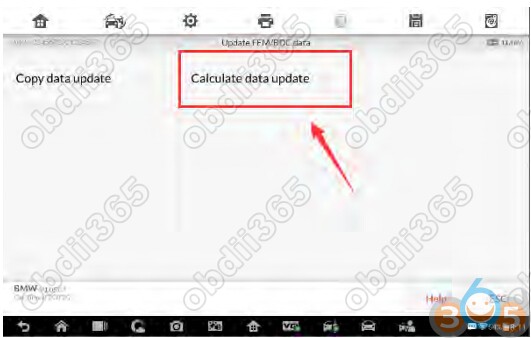

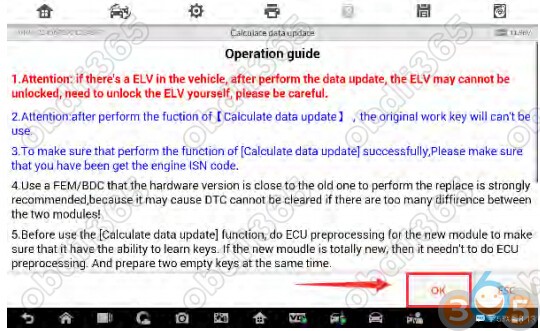

6. Tap Calculate Data Update, read the notes and procedures listed in the operationguide carefully, and then tap OK to continue.

NOTE

If you don’t strictly follow the steps, the data may be lost or the FEM/BDC Renew

operation may fail.

auro-otosys-im600-bmw-fem-renew-56
auro-otosys-im600-bmw-fem-renew-57

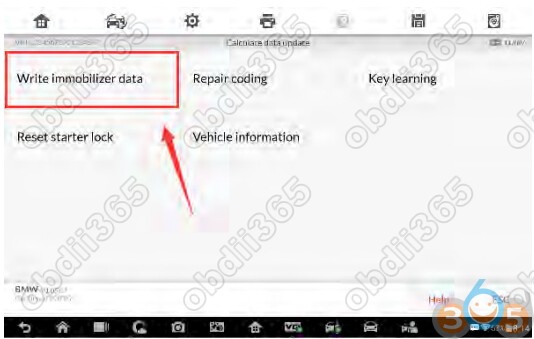

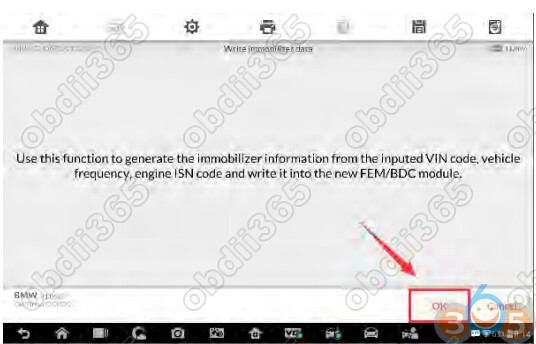

7. Tap Write Immobilizer data on the function menu to generate the immobilizerinformation and write it into the replacing FEM/BDC module. Read the function

information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-58
auro-otosys-im600-bmw-fem-renew-59

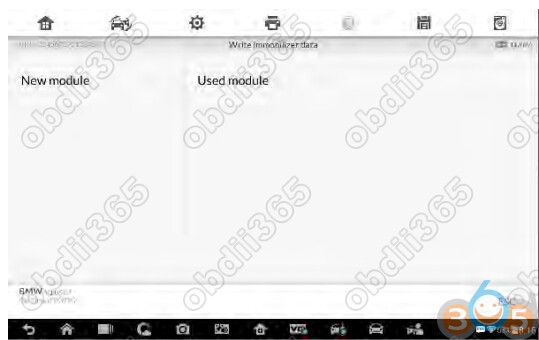

8. When a module menu displays, make selections accordingly.NOTE

 New Module: Perform this function if the replacing module is a brand new one.

 Used Module: Perform this function if the replacing module is a used one.

auro-otosys-im600-bmw-fem-renew-60

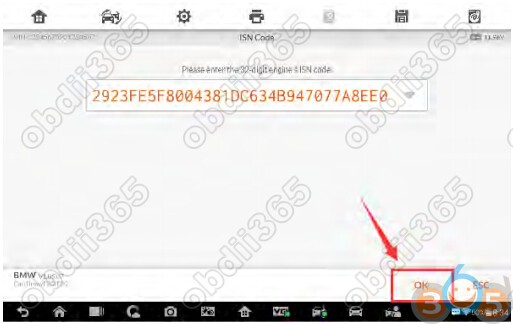

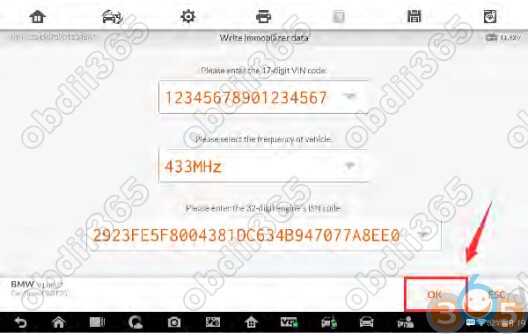

9. Input the VIN code, vehicle frequency and engine ISN code. Then tap OK to continue.
auro-otosys-im600-bmw-fem-renew-61

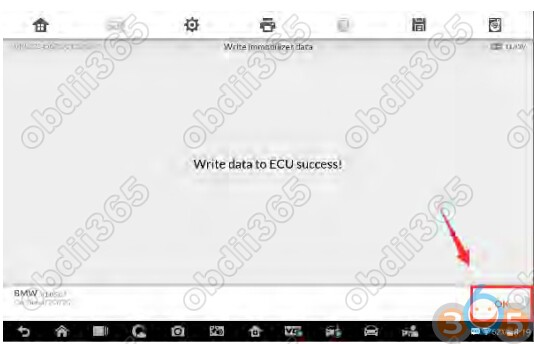

10. When a “Write data to ECU success!” message displays, tap OK and exit to thefunction menu.

auro-otosys-im600-bmw-fem-renew-62

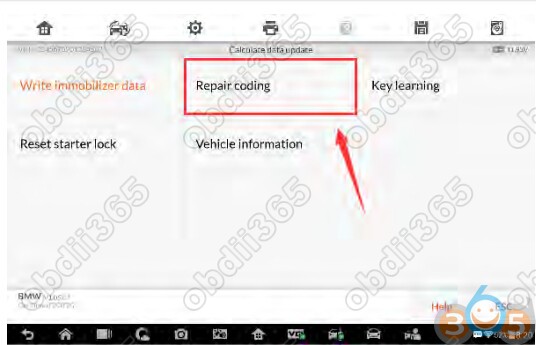

11. Tap Repair coding on the function menu to repair coding of the replacing FEM/BDCmodule. Read the function information and tap OK to continue.

auro-otosys-im600-bmw-fem-renew-63
auro-otosys-im600-bmw-fem-renew-64

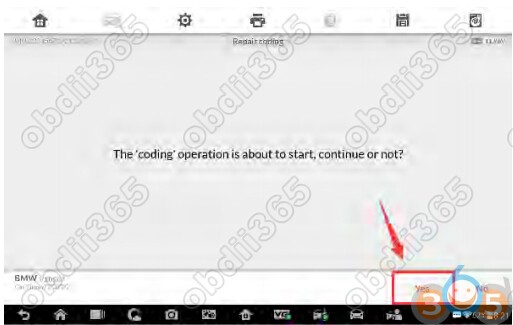

12. Tap Yes to continue the coding operation. When Repair Coding is completedsuccessfully, tap OK and exit to the function menu.

auro-otosys-im600-bmw-fem-renew-65
auro-otosys-im600-bmw-fem-renew-66

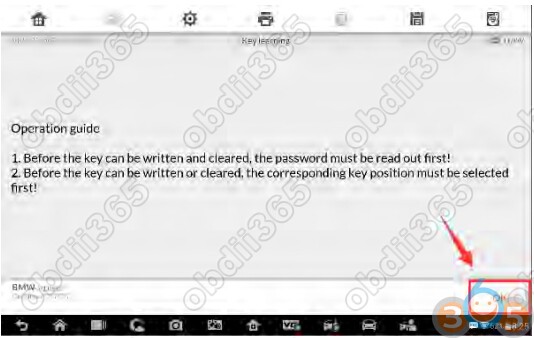

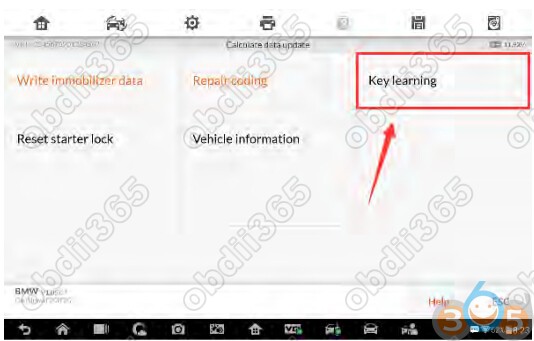

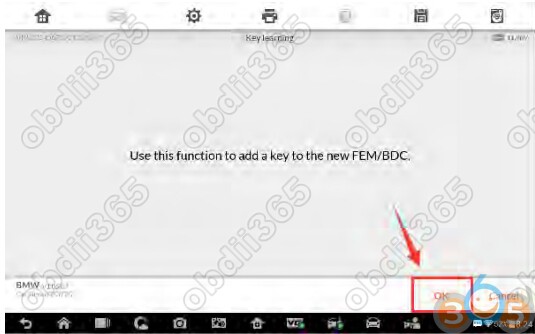

13. Tap Key Learning to add keys to the replacing FEM/BDC module. Read the functioninformation and tap OK to continue.

NOTE

1. The password must be read out before the key can be written or cleared.

2. A key position must be selected before the key can be written or cleared.

auro-otosys-im600-bmw-fem-renew-67
auro-otosys-im600-bmw-fem-renew-68
auro-otosys-im600-bmw-fem-renew-69

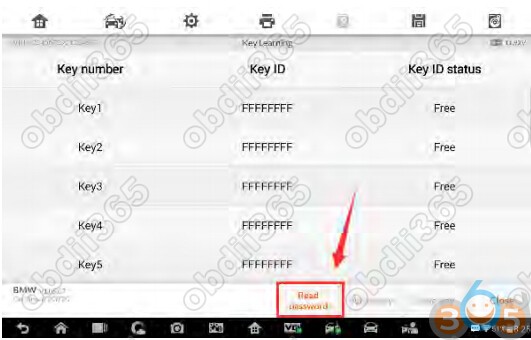

14. Tap Read password to read the password information of the key.
auro-otosys-im600-bmw-fem-renew-70

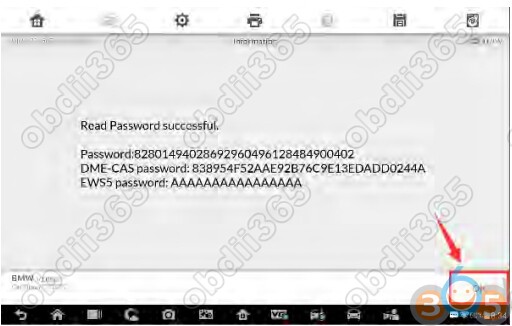

15. When a “Do you have a working key?” message displays, tap No and then input theengine ISN code to read the password information.

NOTE

All original keys can no longer be accepted.

auro-otosys-im600-bmw-fem-renew-71
auro-otosys-im600-bmw-fem-renew-72
auro-otosys-im600-bmw-fem-renew-73

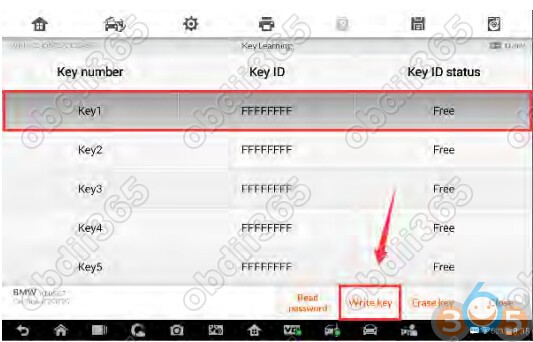

16. Select a FREE key position and then tap Write key.
auro-otosys-im600-bmw-fem-renew-74

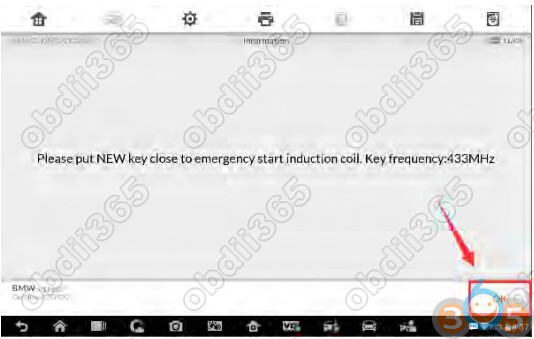

17. Follow the instruction to put the NEW key close to the emergency start coil and tapOK to start Key Learning.

auro-otosys-im600-bmw-fem-renew-75
auro-otosys-im600-bmw-fem-renew-76

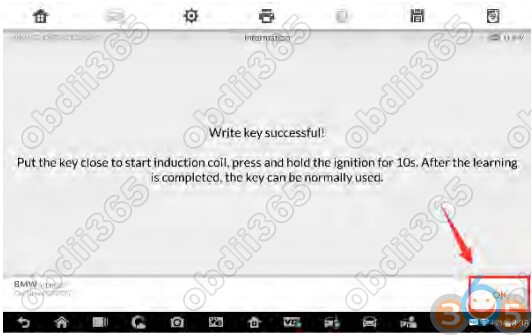

18. When a “Write Key successful!” message displays, tap OK to continue
auro-otosys-im600-bmw-fem-renew-77
19. Repeat step 16-18 to learn the next key.

20. Check if two keys are successfully learned. Then tap Close to exit to the functionmenu.

auro-otosys-im600-bmw-fem-renew-78

21. Tap Reset starter lock to reset the starter lock of the replacing FEM/BDC module.

Read the function information and tap OK to continue. When this function is done

successfully, Copy Data Update is completed.

auro-otosys-im600-bmw-fem-renew-79
auro-otosys-im600-bmw-fem-renew-80
auro-otosys-im600-bmw-fem-renew-81

22. Install the replacing FEM/BDC module into the vehicle and check if the engine canbe started.

NOTE

DTCs may be detected and specific machines are needed to modify vehicle information,

such as FAFP and integration level, and then to perform programming, coding and clear

DTC.

 If you need IM600,please contact our customer service: Email: Sales@OBDII365.com
Skype: OBDII365.com

OBDII365
