Great News! Magic Motorsport Flex programmer update Bosch MDG1 ECU boot unlocking without RFT (mail-in unlocking).
Bosch MDG1 No RFT
Version 8.0.0.0 of Flex Out Now
As of today, you can unlock and program Bosch MDG1 control units directly in your workshop, without the RFT service.
The game has changed…
Starting today, you can unlock Bosch MDG1 ECUs directly in your workshop with Flex. No shipping. No Remote Force Team. Just complete control.
- Boot Mode Unlock
- Read & Write in Bench after unlocking
- No need to reopen the ECU for every operation
- Faster turnaround times and total independence
The new Boot solution for Flex supports Bosch MDG1 ECUs equipped with Aurix TC2xx microprocessor installed on VAG, BMW, Stellantis (FCA/PSA), Kia/Hyundai, and JLR vehicles, allowing you to work freely on your own, with the fastest intervention time and full operation control.
The procedure consists in unlocking in Boot mode. Once the unlock is complete, you can proceed with read and write operations in Bench, working in total autonomy, with the fastest intervention times and without the need to open the unit at every operation.
This solution is already available for the majority of Bosch MDG1 units equipped with Aurix TC2xx microprocessor.
As for models that are not supported yet, compatibility will be progressively expanded with the next updates and new accessories.
This new support is reserved to customers with Full FLS0.5M and FLS0.5S licenses.
Please note: The connection procedure to the ECU might take some minutes. The connection is established through the port E, using the FLX4.1 adapter included in the Flex kit.
Key insights
- All Bosch MD1CE101 TC299
- Iveco Bosch MD1CS069 TC299
- Iveco Bosch MD1CE102 TC299
- BMW Bosch MD1CP032 TC299
- BMW Bosch MG1CS024 TC298
- BMW Bosch MG1CS201 TC298
- Ford Bosch MD1CS005 TC298
- JLR Bosch MD1CP007 TC298
- JLR Bosch MD1CP017 TC298
- JLR Bosch MG1CS028 TC298
- Kia Hyundai Bosch MD1CS012 TC298
- Stellantis Bosch MD1CS003 TC298
- Stellantis Bosch MG1CS042 TC298
- VAG Bosch MD1CS004 H80 TC298
- VAG Bosch MG1CS002 H80 TC298
- VAG Bosch MG1CS031 H80 TC298
- VAG Bosch MG1CS163 TC298

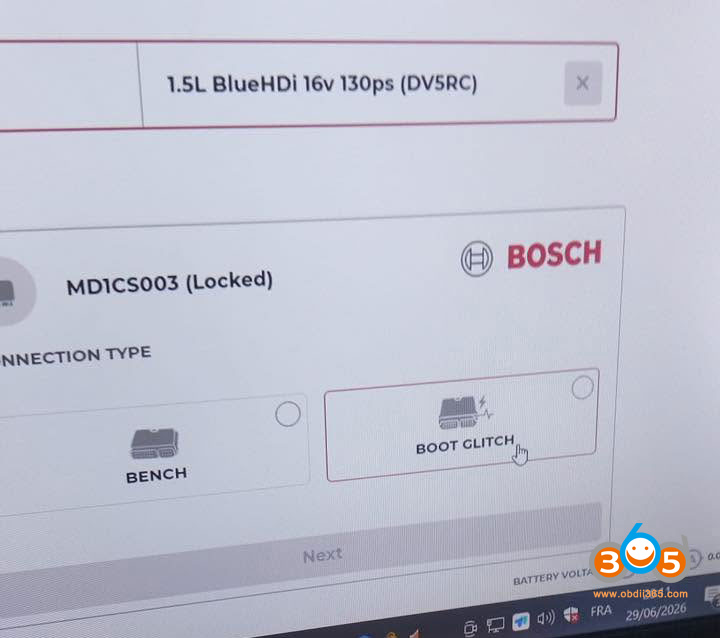

Working Mode: Boot Glitch – Bench
Memories: Read/Write/Checksum Internal Flash, Read/Write Internal EEPROM, Full Backup, Boot Unlock
License: FLS0.5M/S
Connect/Glitch Time : From 10 seconds to 25 minutes (variable)
Reading Time : ~ 2 minutes and 30 seconds
Writing Time : ~ 2 minutes
Some of the supported vehicles
- Audi RS3 (III) 8YA 2.5L TFSI 20v 394HP (2021MY)
- BMW 1-Series (F40) 1.5L 118i 138HP (2021MY)
- Cupra Formentor (I) 2.0L TDI 16v 148HP (2021MY)
- DS 9 (I) 1.6L PureTech 16v PHEV 222HP (2021MY)
- Iveco Eurocargo (IV) 4.5L Tector 5 16v 183HP (2021MY)
- Land Rover Defender (I) L663 3.0L D250 24v MHEV 245HP (2021MY)
- Opel Corsa (F) 1.5L CDTi 16v 101HP (2021MY)
- Peugeot 308 (III) 1.6L PureTech 16v PHEV 177HP (2021MY)
- Peugeot Partner (III) 1.5L BlueHDi 16v 130HP (2021MY)
- Volkswagen (VW) Golf (VIII) 2.0L TDI 16v 114HP (2021MY)
For detailed models, check Flex support list on official website.
What’s the benefits of the boot unlocking instead of mail-in unlocking?
Even a Boot unlock solution would be perfect for us.
Our main issue is not Boot mode. The real problem is shipping ECUs abroad, dealing with customs clearance, and making customers wait about a week for the ECU to be sent and returned. During that time, we risk losing our customers.
Today, Magic Motorsport made a big step forward by releasing a free Boot unlock solution for several new protected Bosch MD1 ECUs, such as the MD1CS003, MD1CS004, and other protected MD1 variants that previously required a paid unlock service.
I hope Autotuner will follow the same direction by introducing a Boot unlock solution for these ECUs, and later for the MD1CS104, MD1CS001, MD1cp001 and the other ECUs that are still locked.
This would make a huge difference for workshops like ours, allowing us to work faster, avoid shipping delays, and keep our customers.
FAQs:
Q: Stellantis DUCATO MD1CS069? DOES MD1CS069 DUCATO SUPPORTED?
A: Yes, of course.
Q: Is it possible to make BMW MD1 after July 2021?
A: They are on the list. yes
Q: When is Bench unlock coming?
A: At the moment it’s not technologically possible.
Q: Did not see Md1cs104 ?
A: Not for now.
Q: Do I have to pay extra for unlocking?
A: No, but device should be in a subscription.
Q: Unlock MB MD1CP001?
A: Not for now, upcoming.
Q: Only for Full sw Pack or for all ?
I have obd / Bench only can i use this ? Per Need Full felx ?
A: The unlock is via Boot, you need the full pack.
Q: All md1cs003 psa write available ?
A: Yes! with TC298 micro
Q: Unlocking only in boot or also bench ?
A: Boot Glitch unlocking is necessary, after that you can bench work!
Q: Will the unlock support another tuning companies like bm3/mg/mhd?
A: Flex does not put any protections to BENCH UNLOCK procedure. It will work on bench mode in any tool with bench protocol for old fashion not locked MDG1. Their goal is to change the game. No more shipping!
Q: boot mg1cs201 for bench unlock?
A: Yes, it works.
Q: MG1CS163 H80 support??
A: Yes.
