Tutorial: how to unlock and repair Volvo S90/ V90/ XC60/ V60/ XC40/ S60/ XC90 48V hybrid lithium battery using CG100X programmer in bench CAN mode.
Model example: 2022 Volvo XC90
A 2022 Volvo XC90 involved in a front-end accident triggered the vehicle’s safety systems. When airbags deploy, the hybrid battery enters a protection mode, preventing the vehicle from starting. Even after physical repairs, the battery requires a software unlock to restore functionality.
The Procedure
Select the Volvo 48V battery option from the software menu.
CG100X will show you the wiring diagram.

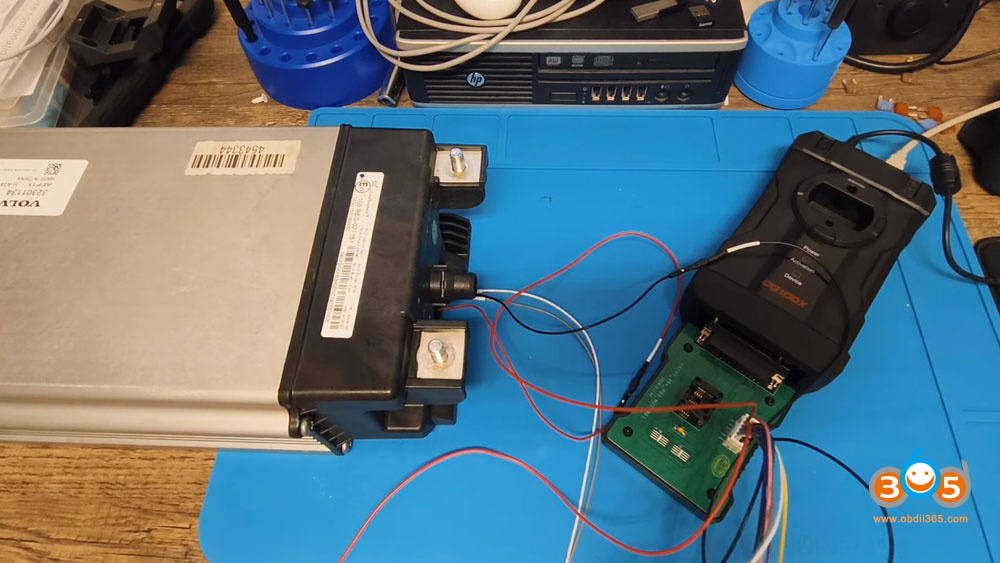

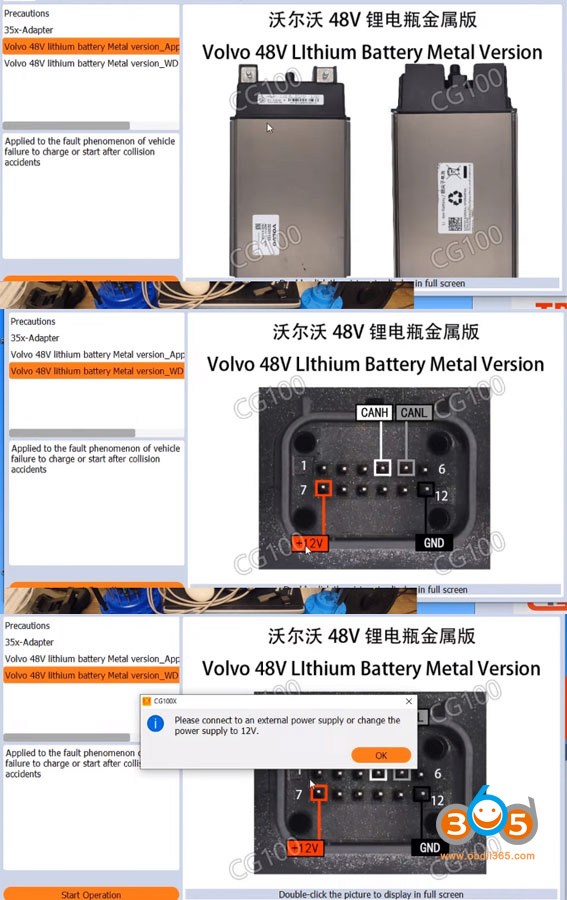

Connection Setup: The programmer connects to the battery via a simple wiring configuration with positive, ground, CAN high, and CAN low connections.
Power Requirements: An important technical consideration emerged during testing. The CG100X requires precisely 12V power (2A recommended). When the technician attempted to use a 14.5-15V power supply, the programmer failed to recognize the connection. Switching to a proper 12.6V 2A charger resolved the issue.

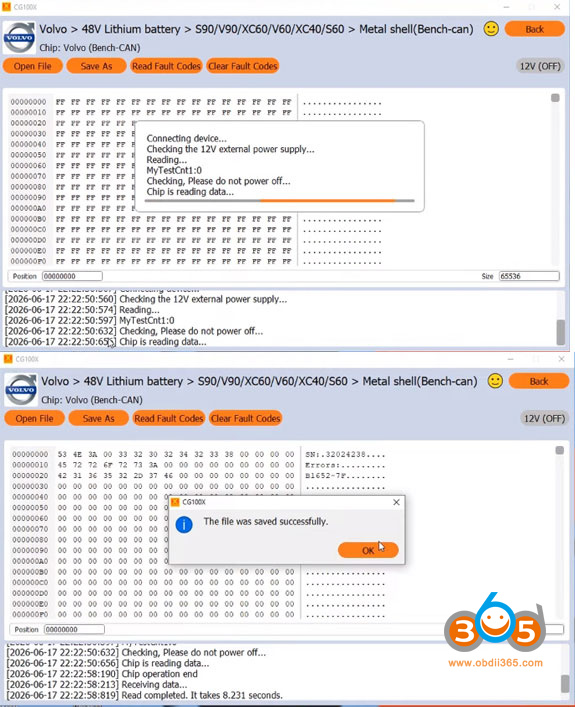

Read and save battery data.

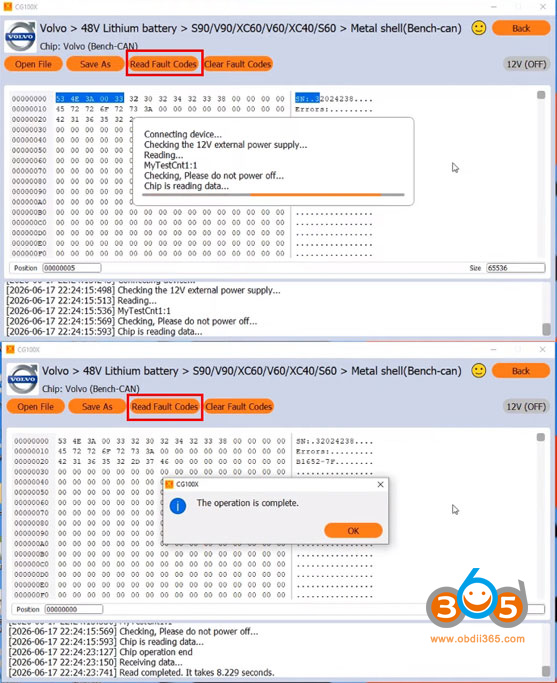

The system reads the battery’s fault codes.
We can view serial numbers and error logs.

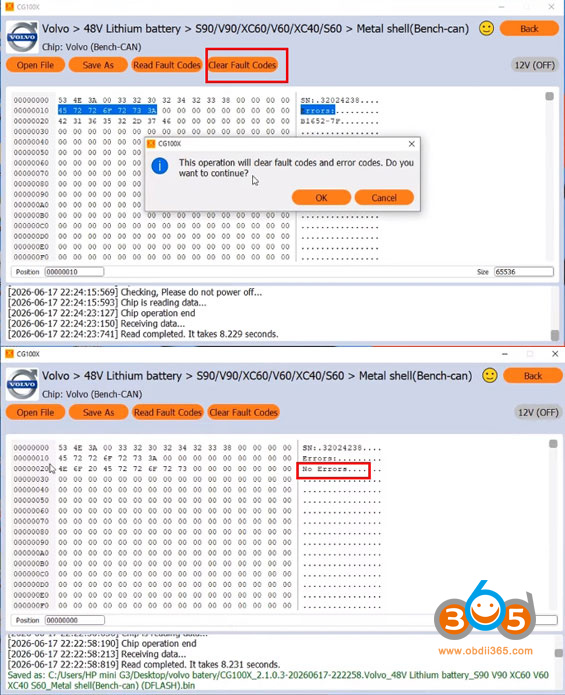

Clear fault codes.
The unlock function clears accident-related fault codes
Results
The CG100X Volvo 48V battery unlock procedure was successfully completed in seconds. Analysis of the data showed:
Original data contained accident-related error codes.
After the unlock operation, fault codes were cleared.
The battery was restored to operational status.
Final Recommendations
Check power supply requirements – Ensure you’re using a stable 12V 2A power source.
Exercise caution during connection – The stiff rubber seal can lead to bent pins.
Verify compatibility – Confirm your specific battery model is supported.
