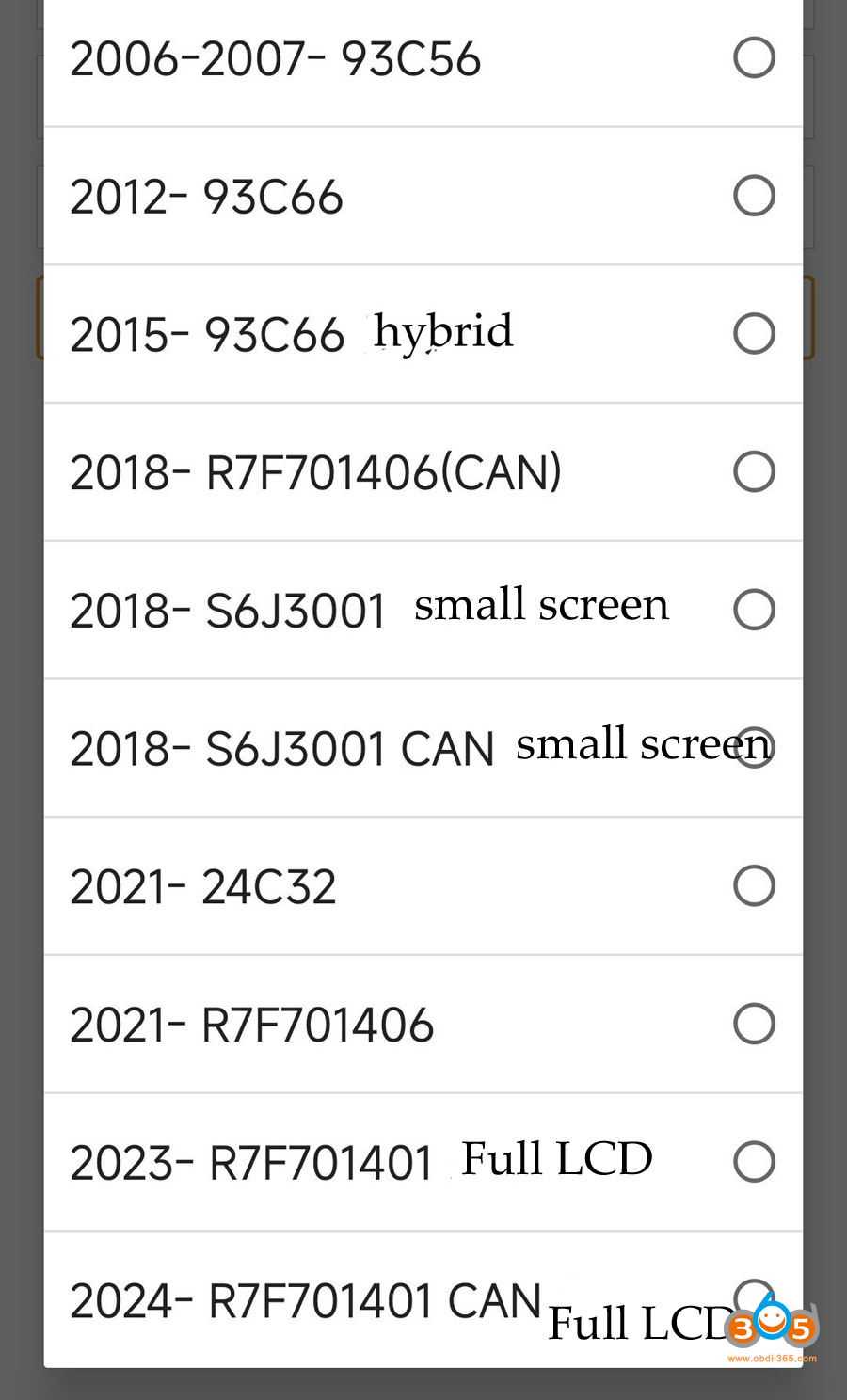

We have collected the wiring diagrams for dashboard mileage correction on the 2015-2024 Toyota Camry using the CG100X programmer. This includes the following dashboard types.

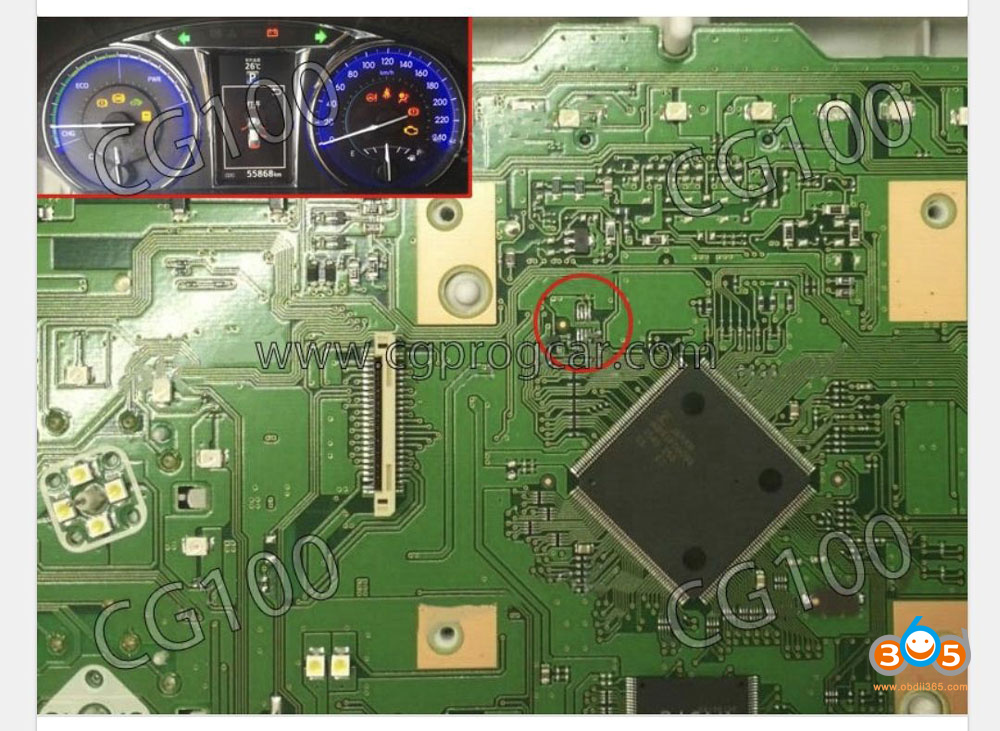

2015- 93C66 hybrid cluster
Make sure to check if the chip model and mileage data are read accurately.

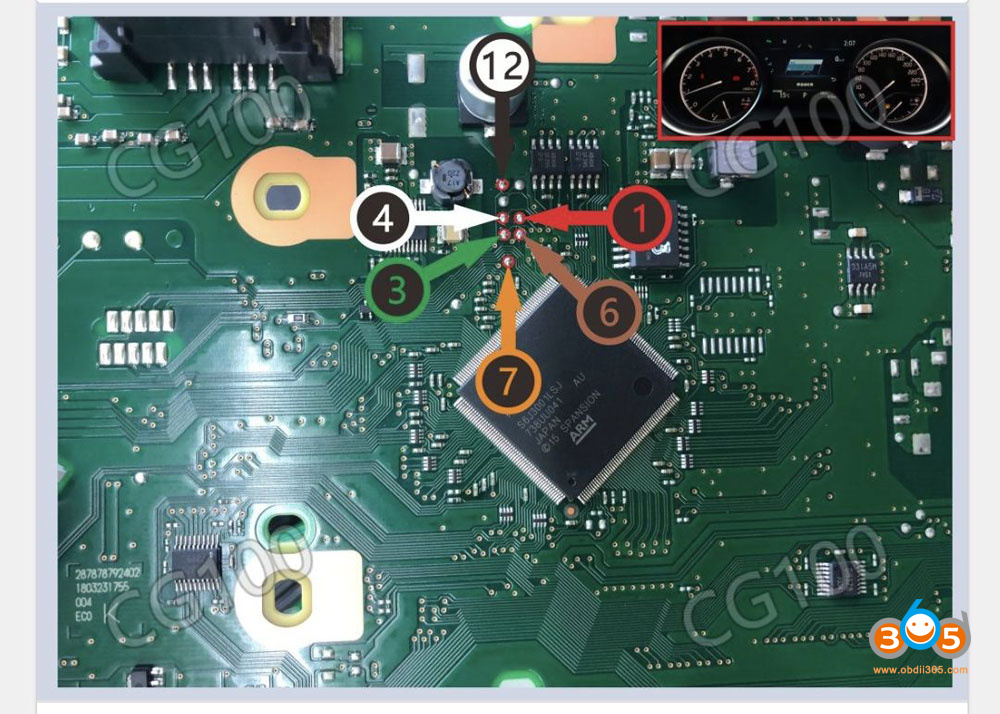

2018- S6J3001 small screen
Make sure to check if the chip model and mileage data are read accurately.
We recommend using the S6J3001 CAN option for the correction first.

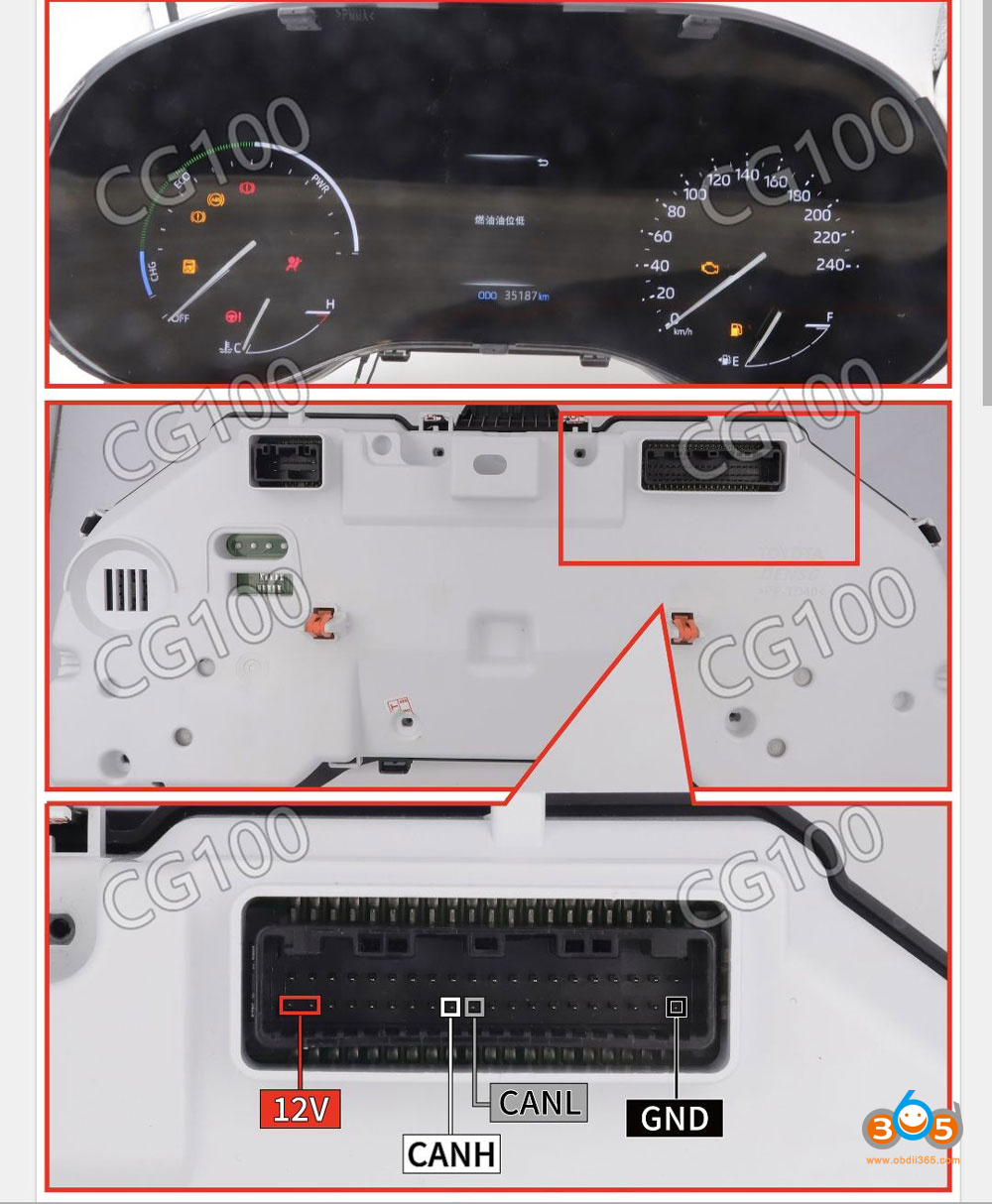

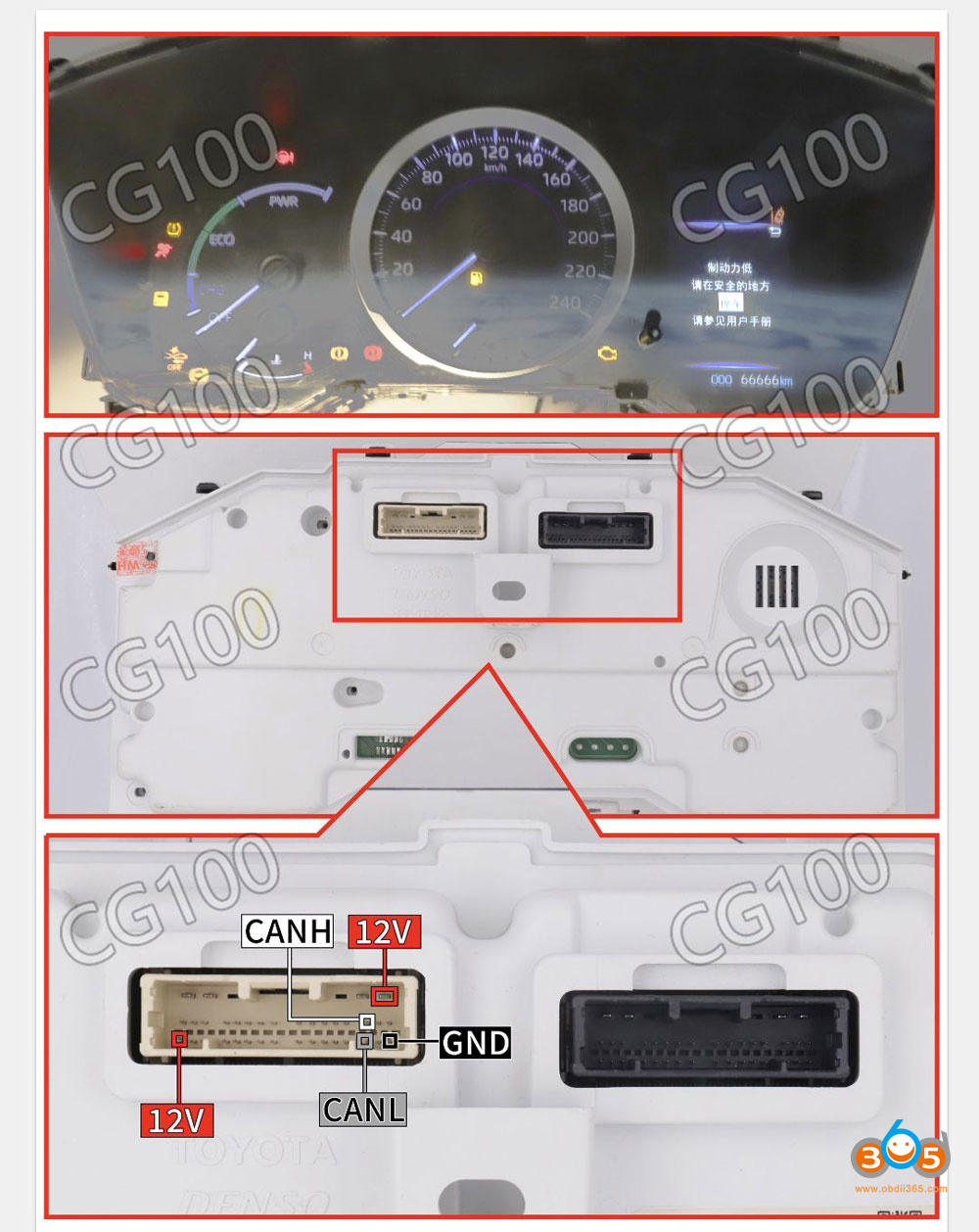

2018- S6J3001 CAN small screen
This function requires network connection.
Make sure to check if the chip model and mileage data are read accurately.
Some dashboards are not supported. If a reading error is prompted, you need to disassemble it to confirm the chip model and operate by soldering wires.

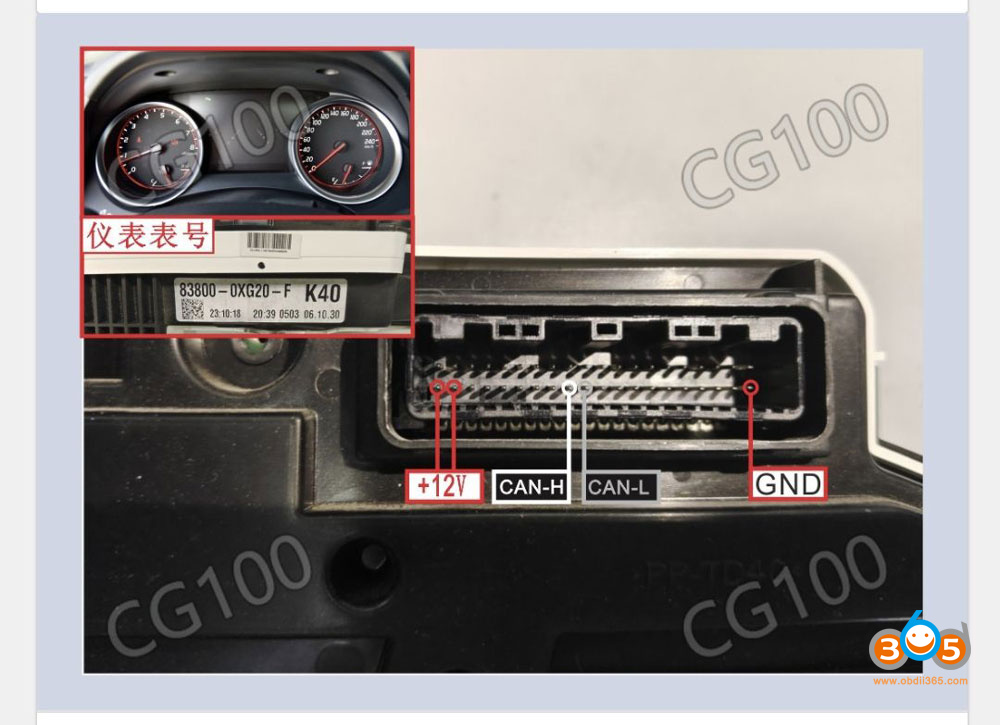

2018- R7F701406 (CAN)
Currently, only the K40 and M4 clusters are supported for mileage correction by CAN mode; you need to contact after-sales service to modify the data.
Please make sure to check if the chip model and mileage data are read accurately.
If necessary, you can use a universal programmer to loacate the chip, read it, and save the original data.

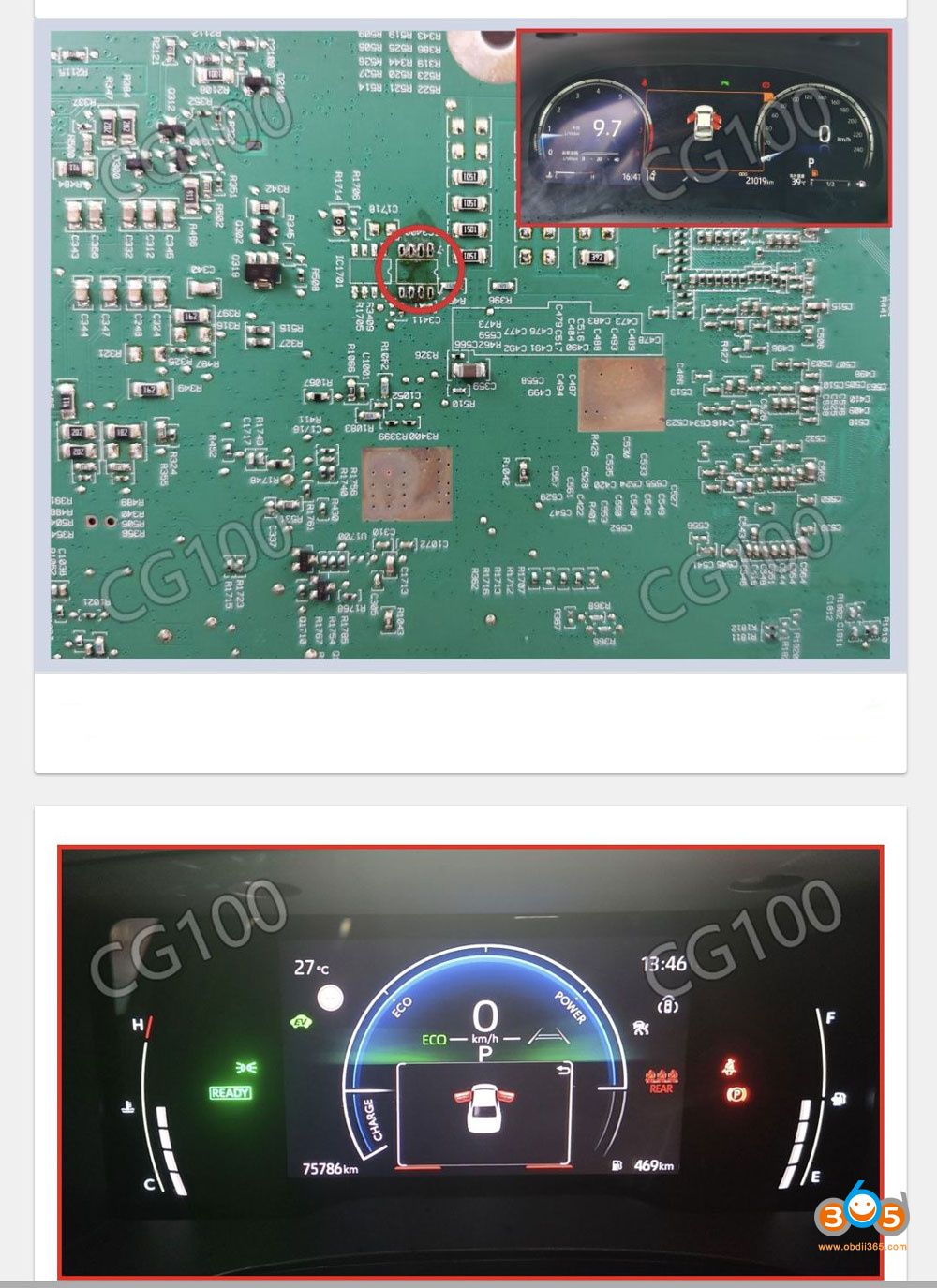

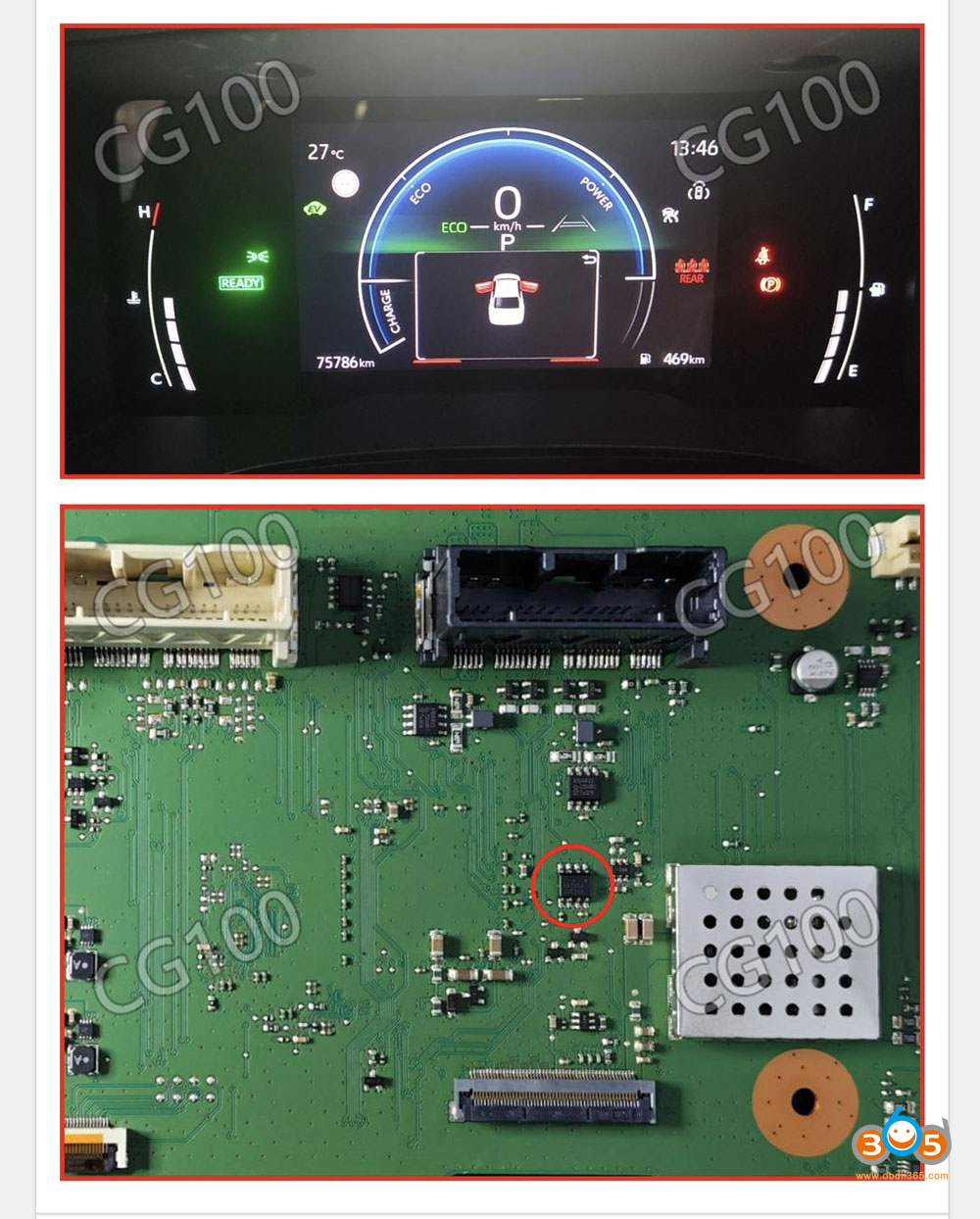

2021- 24C32
Please make sure to check if the chip model and mileage data are read accurately.

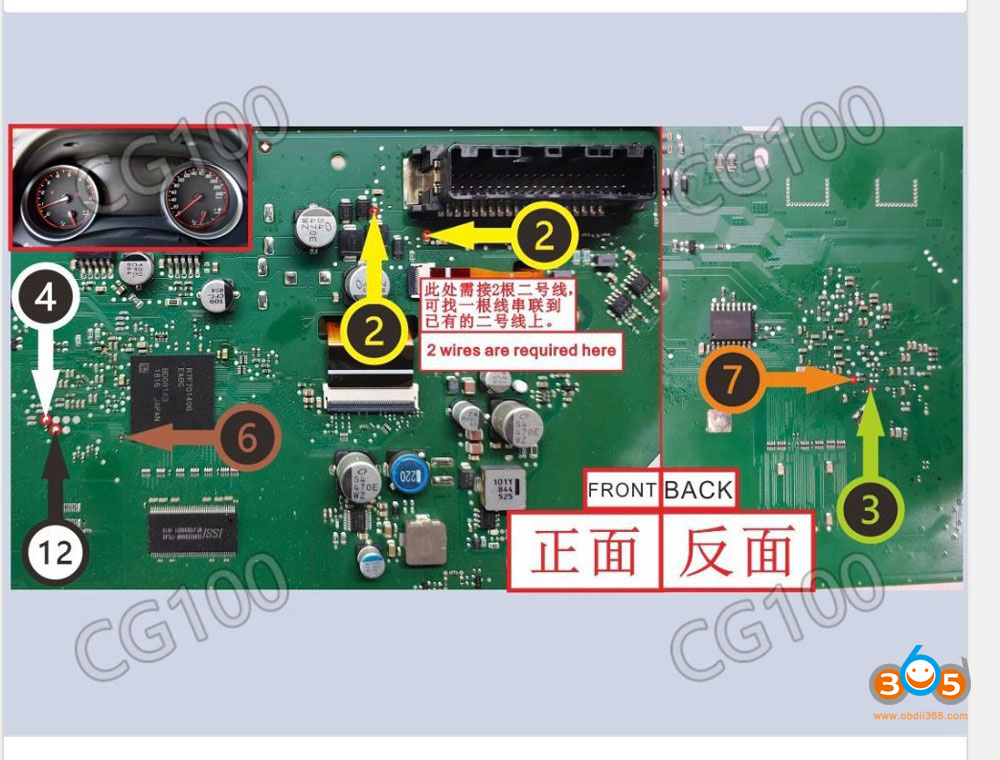

2021- R7F701406
Make sure to check if the chip model and mileage data are read accurately.
If the dashboard number is K40, use the 2018- R7F701406 (CAN) method to correct the mileage.

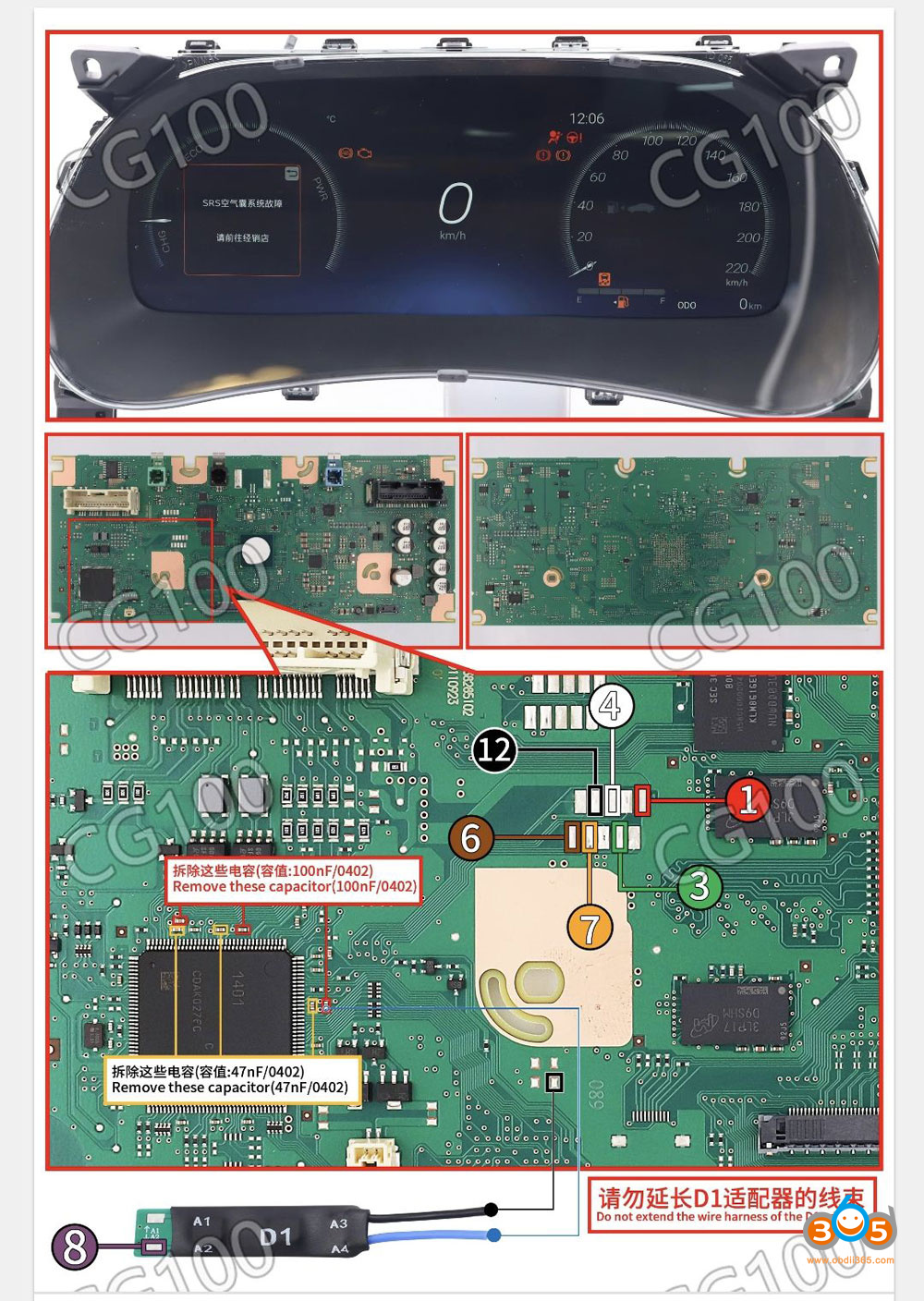

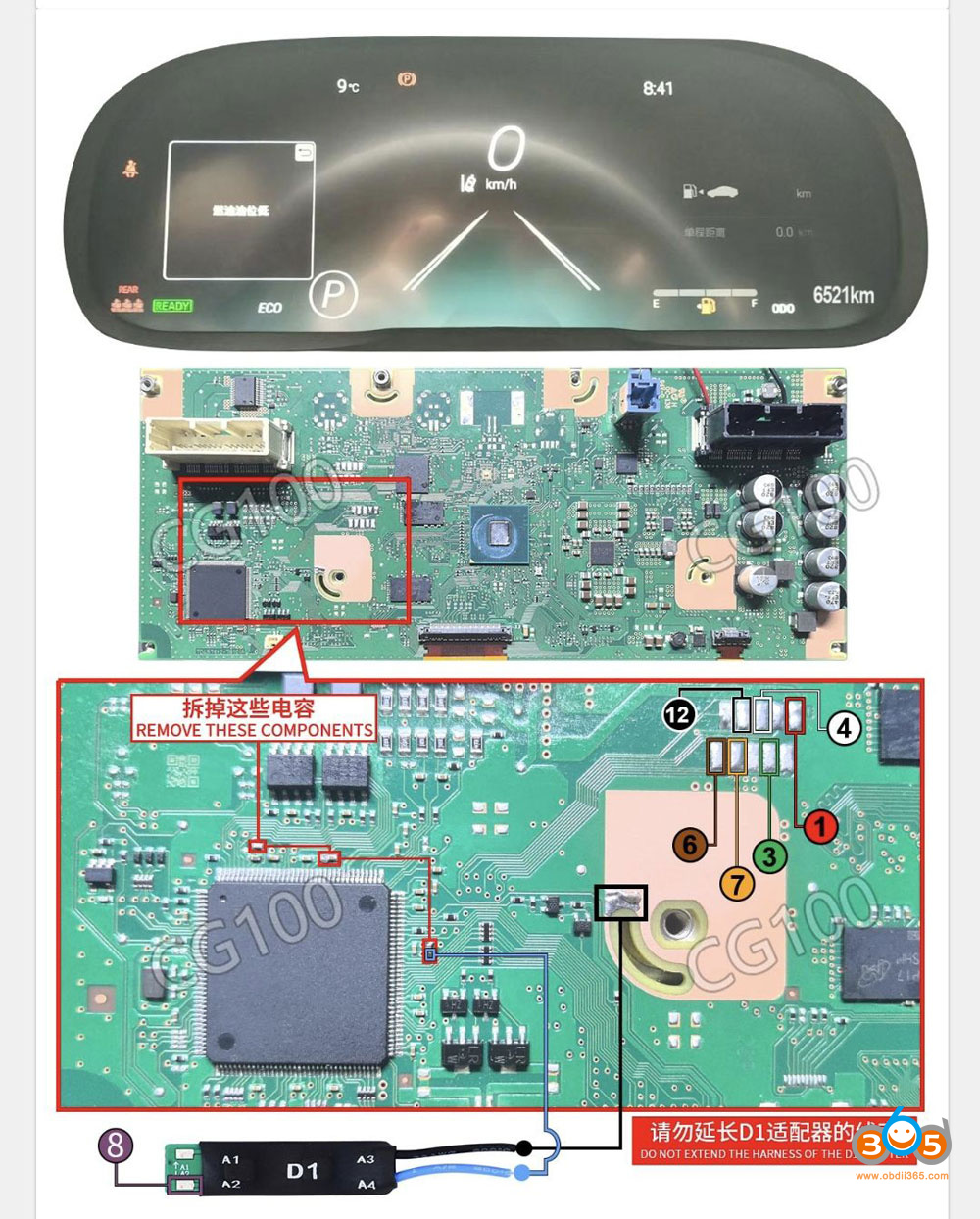

2023- R7F701401 Full LCD
This function requires network connection.
Make sure to check if the chip model and mileage data are read accurately.
Requires removing capacitors and connecting CG100X D1 adapter.

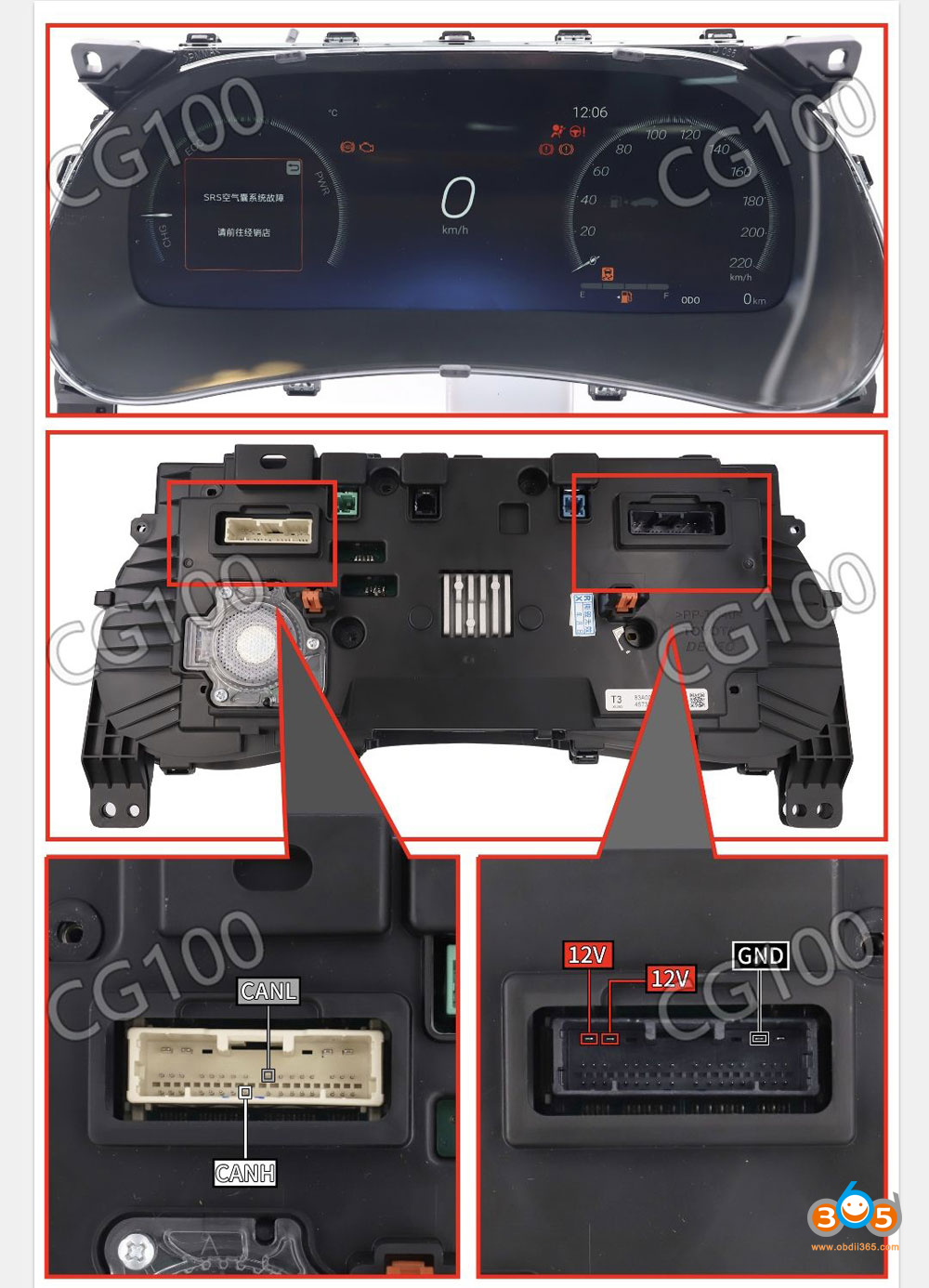

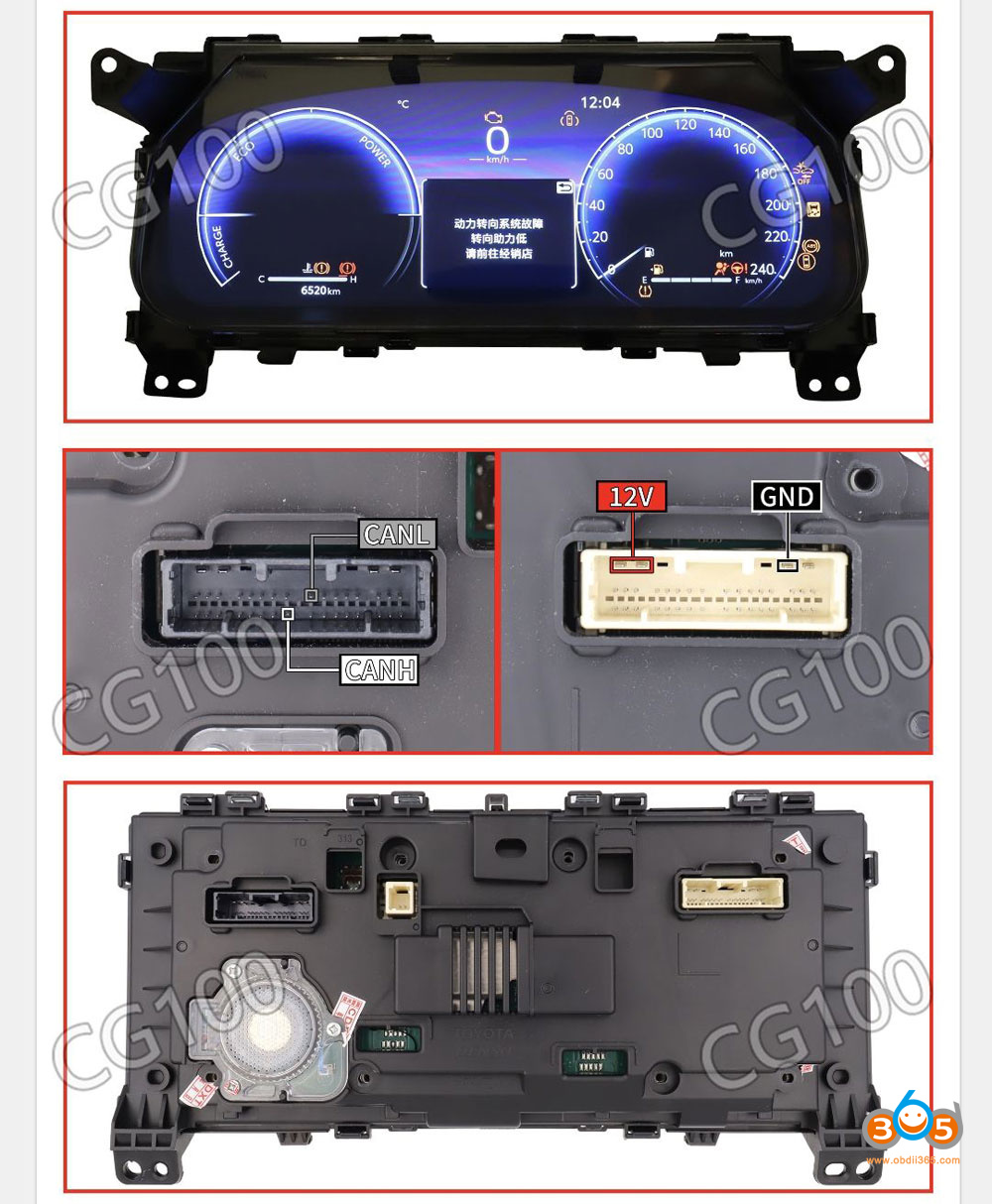

2024- R7F701401 CAN full LCD
This function requires network connection.
Make sure to check if the chip model and mileage data are read accurately.
