Yanhua ACDP Module 42 Virgin and Transfer Mercedes DSM (FBS4) Data

Yanhua Mini ACDP released new module 42 MB DSM interface board to virgin and transfer data for Mercedes Benz DSM/DSM222 (FBS4) on bench mode.

Module functions:

Support MB DSM (FBS4) virgin and data transfer with part numbers A0002703252/ A0002703352/ A0002703452.

Support MB DSM222 (FBS4) virgin and data transfer with part numbers A0002704252/ A0002704452/ A0002704652.

It works with both ACDP2 and ACDP1.

Supported models

A0002703252

A0002703352

A0002703452

A0002704252

A0002704452

A0002704652

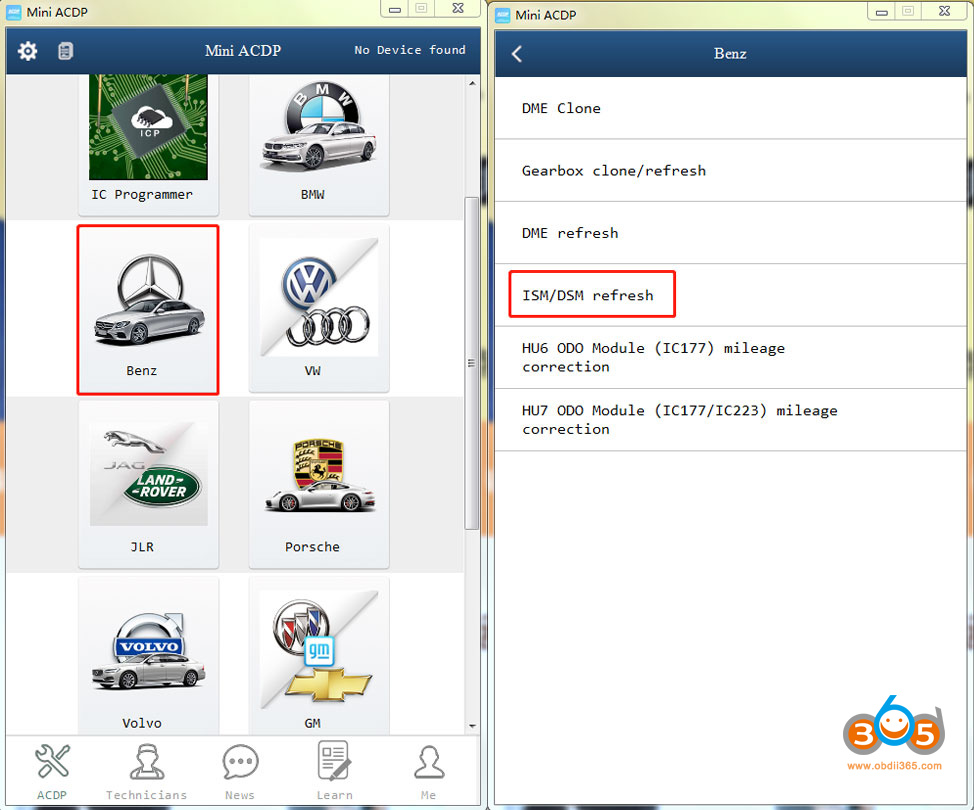

Menu path:

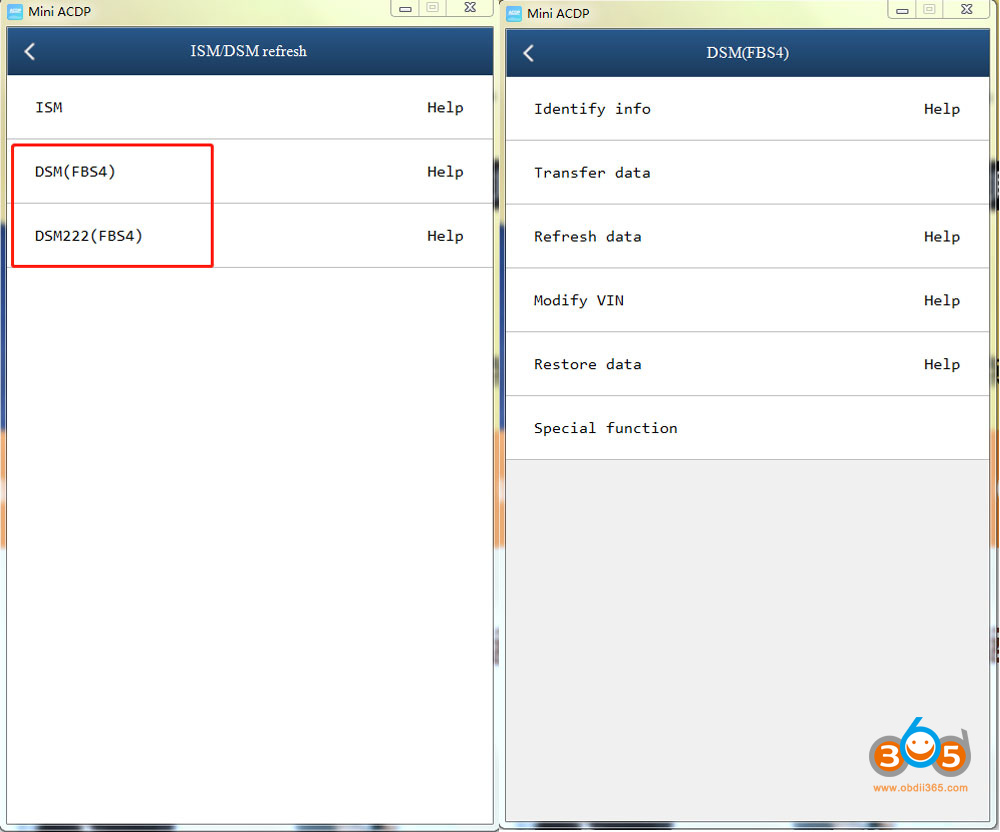

Benz-ISM/DSM reflash- DSM (FBS4) or DSM222 (FBS4)

Function:

Identify info

Transfer data

Reflash data

Modify VIN

Restore data

Special function

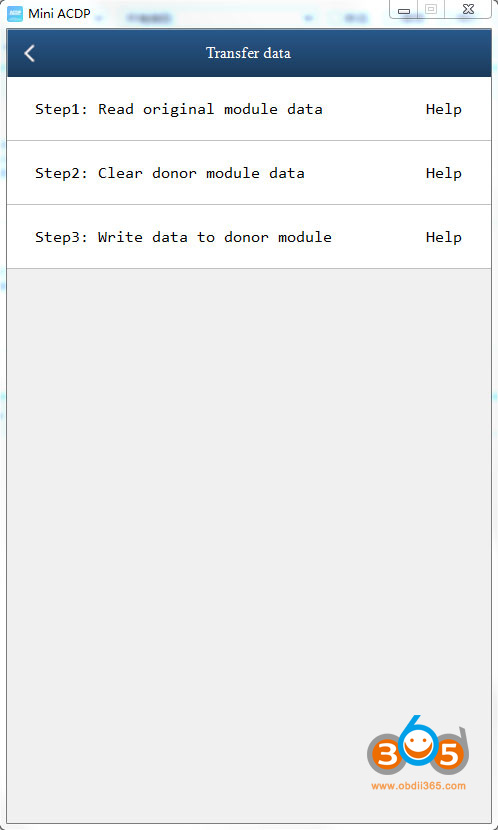

3 Steps to transfer data

Step 1 Read original module data

Step 2 Clear donor module data

Step 3 Write data to donor module

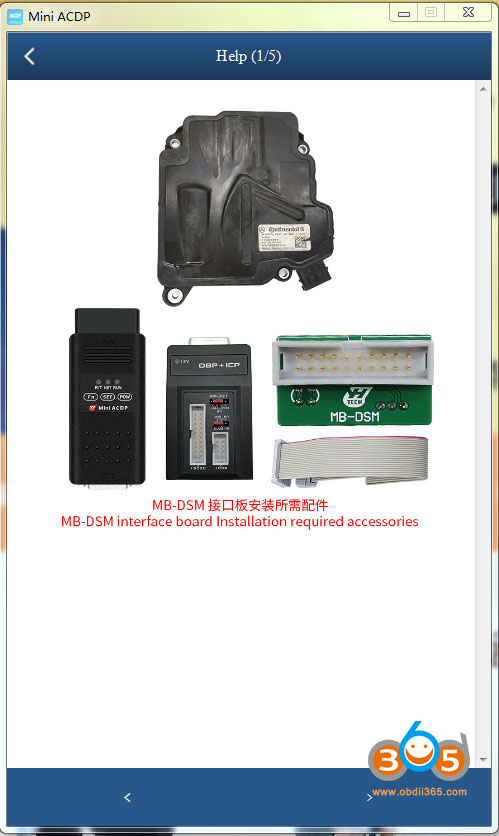

How to connect Yanhua ACDP Module 42 interface board?

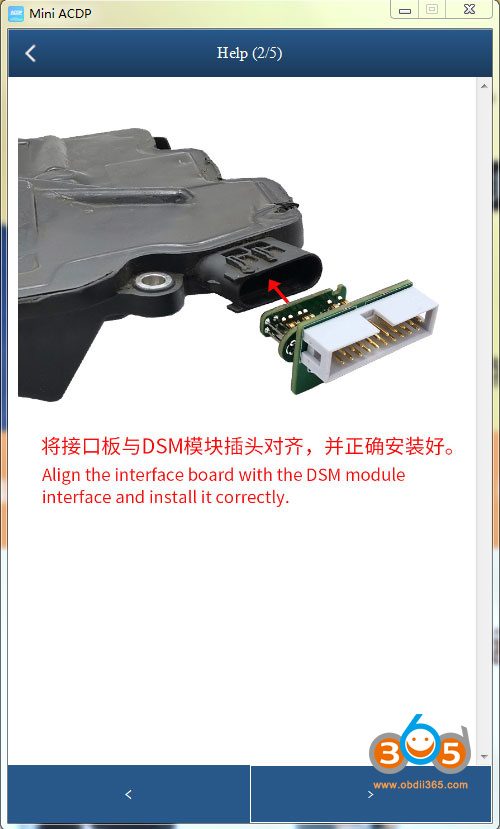

Align the interface board with the DSM module interface and install it correctly.

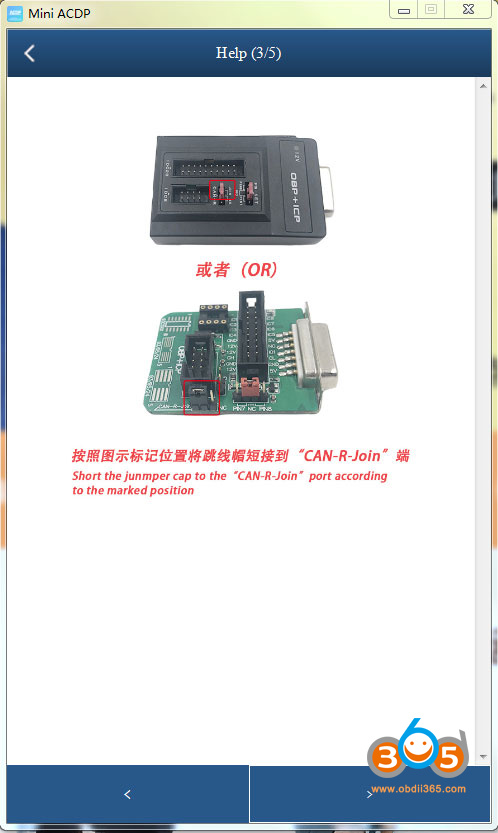

Short the jumper cap to the “CAN-R-Join” port according to the marked position.

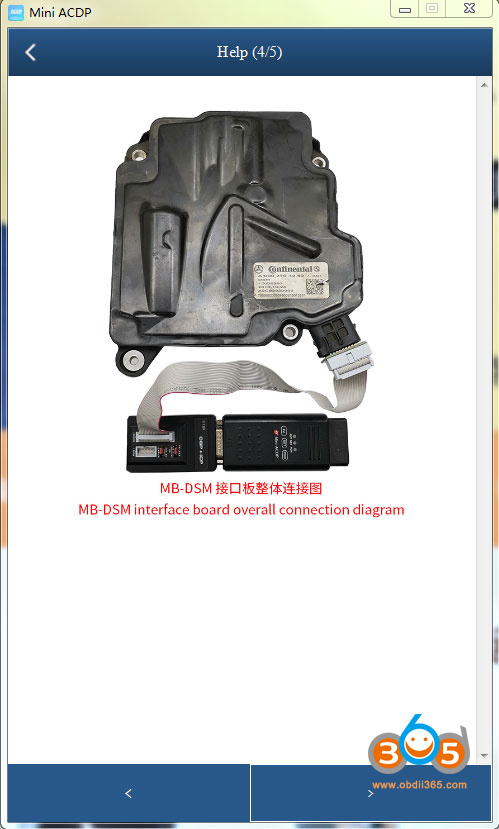

Connect MB-DSM interface with ACDP.
