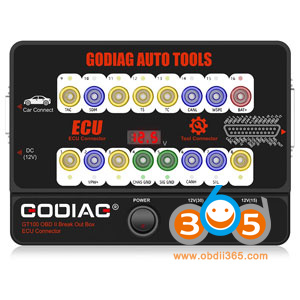

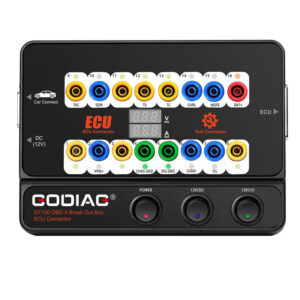

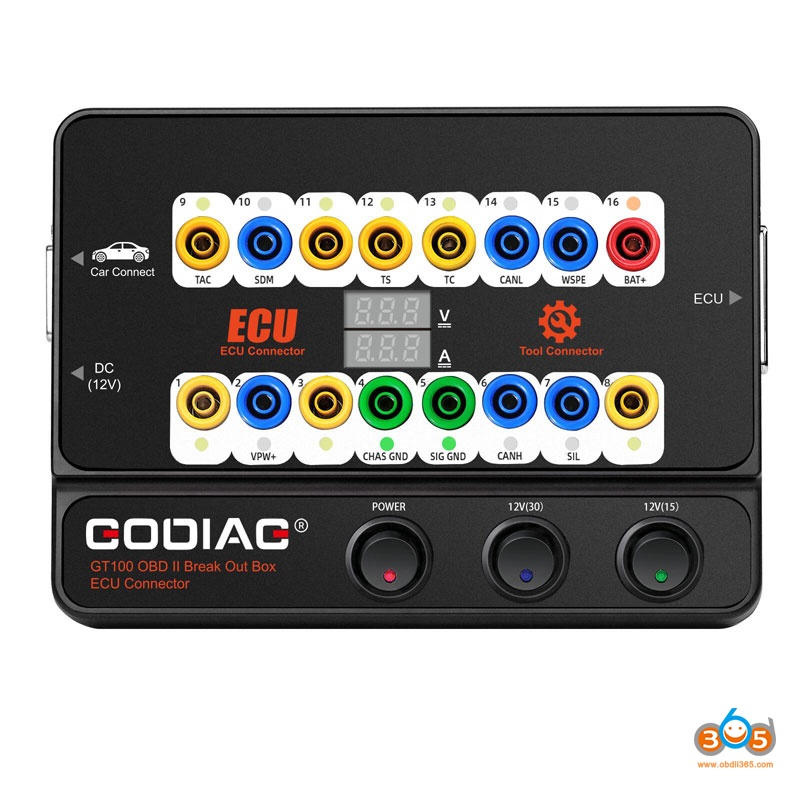

Here is the comparison among Godiag GT100 Plus, GT100+ and GT100 OBDII breakout box.
| Model | SO537-C(GT100 Plus GPT) |
SO537-B(GT100+) |
SO537(GT100) |
| 24v-12v voltage conversion | √ | × | × |
| DOIP ENET Diagnostics | √ | × | × |
| GPT connection method to read and write ECU | √ | × | × |
| Connect CAS1/2/3 Test Platform, connect airbag 100K CANBUS communication |
√ | × | × |
| Voltage and current value display function | √ | √ | × |
| Pin 1, 9, 3, 11 12, 13, 8 Display CANBUS communication. | √ | √ | × |
| Pin 1, 9, 3, 11 12, 13, 8 Display K-Line Pwm Vpw+ KWP 2000 protocol communication. | √ | √ | √ |
| PIN2. 10 VPW PIN6.14 CANBUS PIN 7.15 k-line | √ | √ | √ |
| Check whether tools can send communication signals. | √ | √ | √ |
| Program key for VW, Porsche, Mitsubishi etc with all keys lost | √ | √ | √ |
| Communicate with a single ECU on bench | √ | √ | √ |
| Replace the auxiliary power supply for the battery | √ | √ | √ |
| Convert the OBD1 port of special truck to the standard OBD2 | √ | √ | √ |
| Test whether the programmed key works with CAS4 | √ | √ | √ |
| Work with BMW FEM/BDC Programming Test Platform | √ | √ | √ |

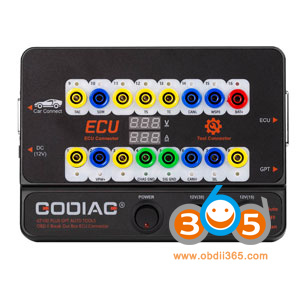

Compared to the older version of the GT100 breakout box, the new GT100 Plus includes the following updates:
1. Supports 24V to 12V voltage conversion function.
Convert the 24v voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12v voltage that can be used by diagnostic equipment.

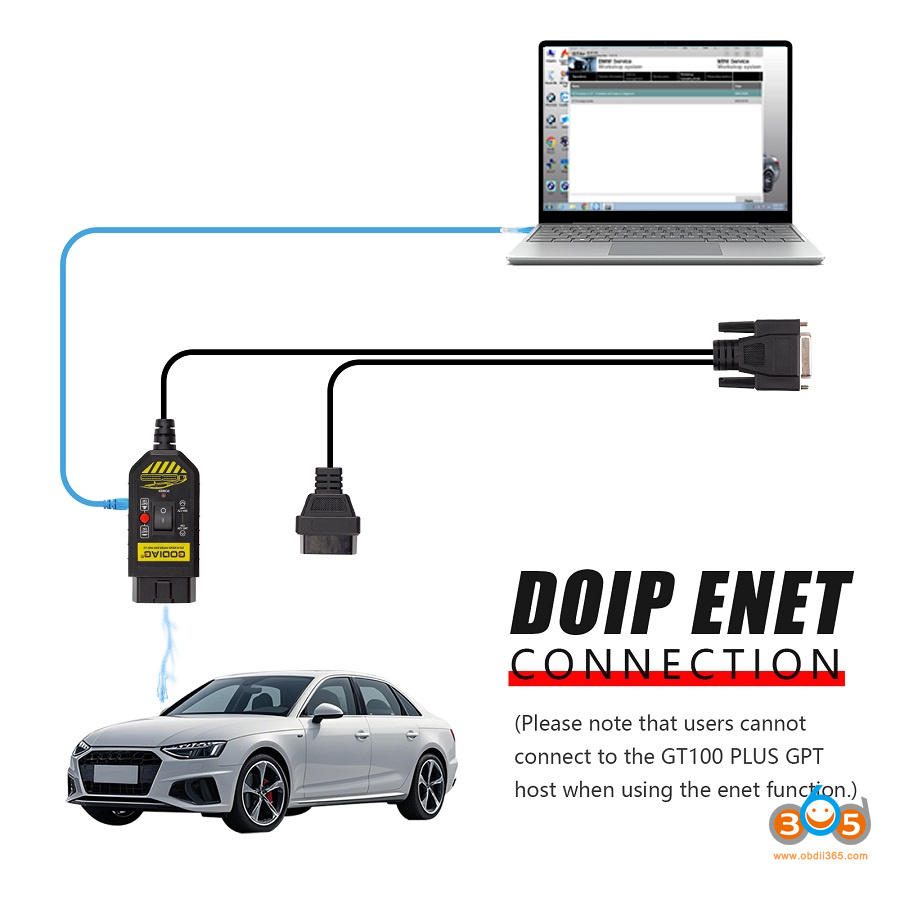

2.DOIP Ethernet diagnostics

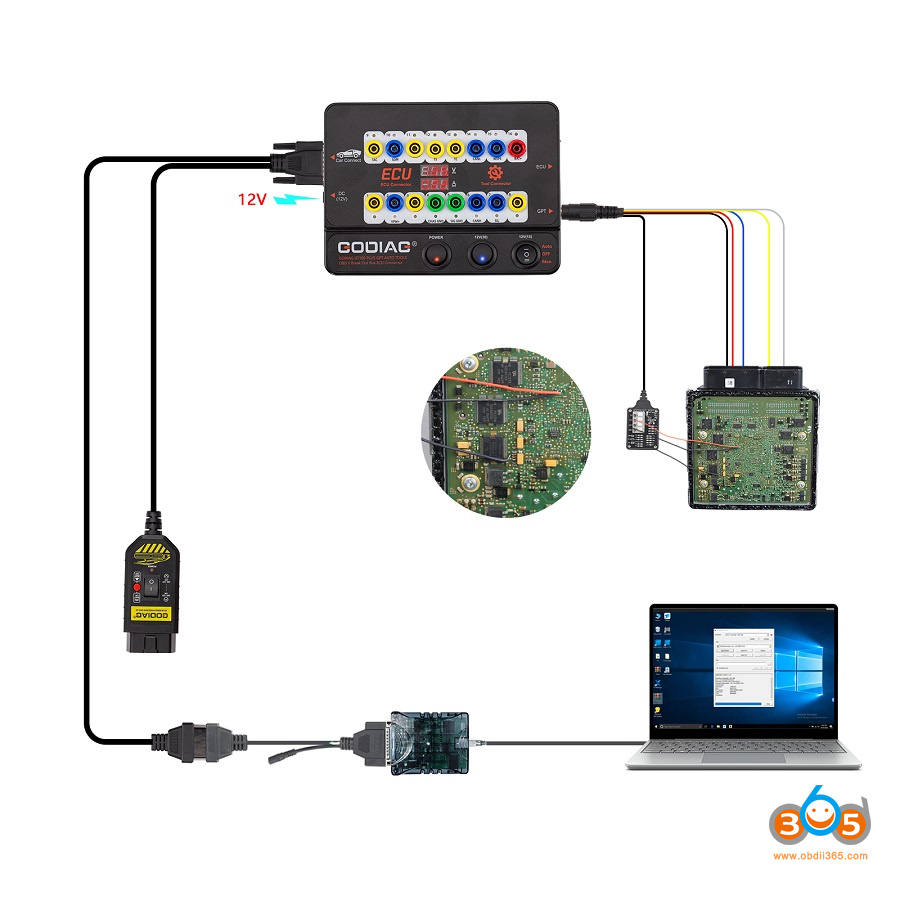

3. GPT connection method for ECU reading and writing (with PCMFlash, KESS2 etc)
Support GPT to read and write data without disassembling the ECU.
Supports OBD2 BENCH [CAN bus & K-Line]
Supports GPT BOOT CNF1

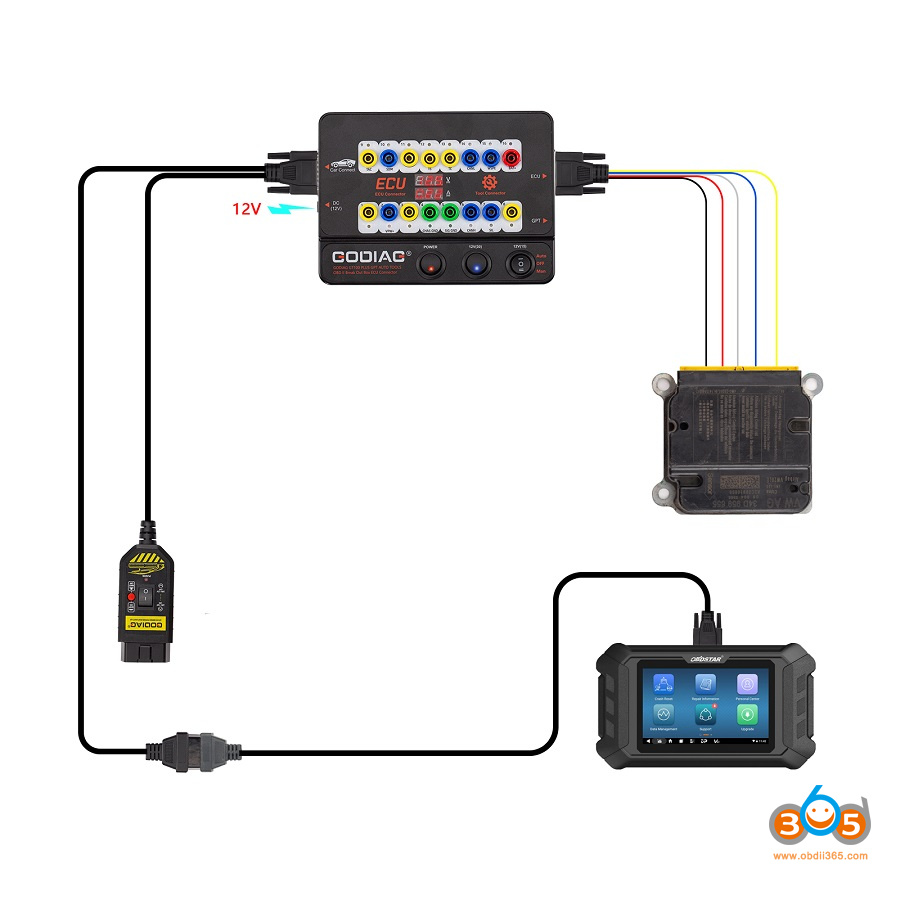

4. Airbag connection, supporting 100K CAN BUS communication, compatible with godiag BMW CAS1/CAS2 and CAS2/CAS3 test platforms.
