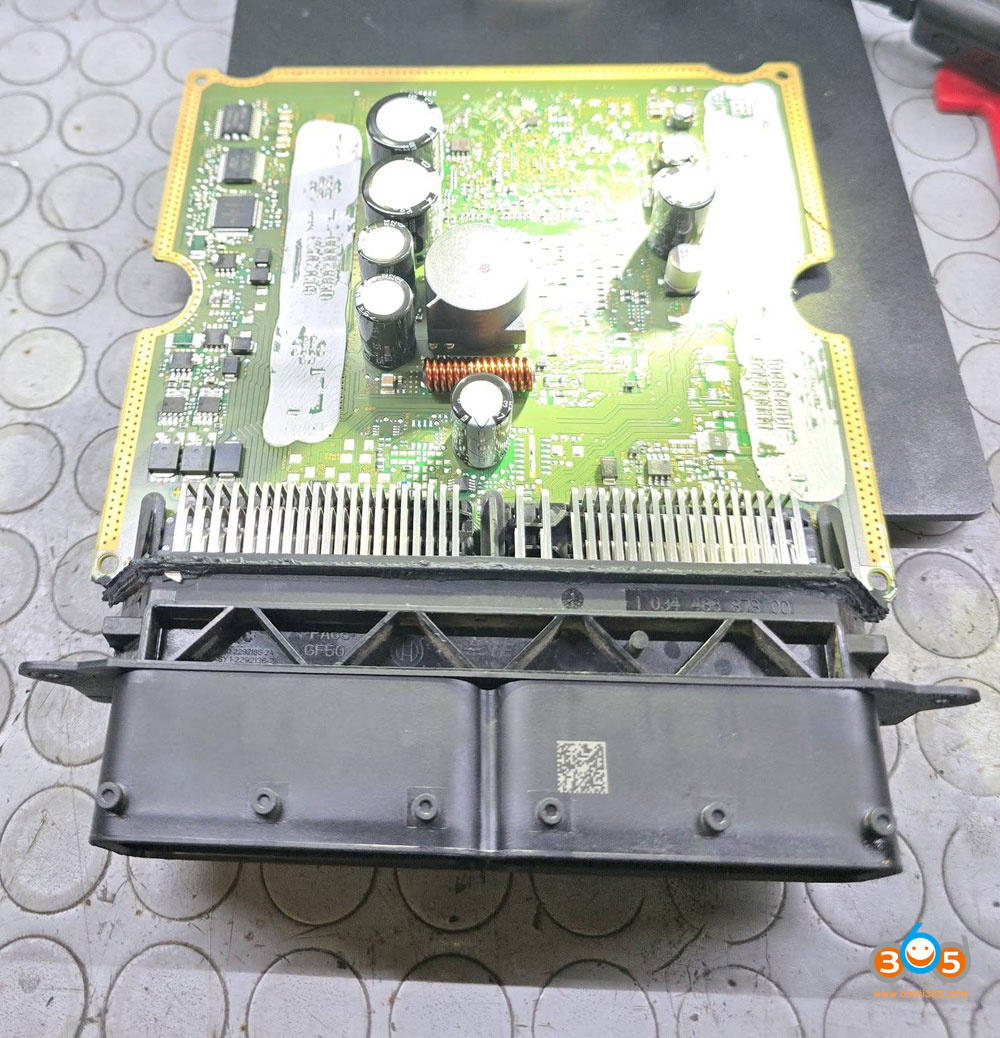

Fiat Ducato Bosch MD1CS069 ECU done with Magic Motorsport Flex smoothly.

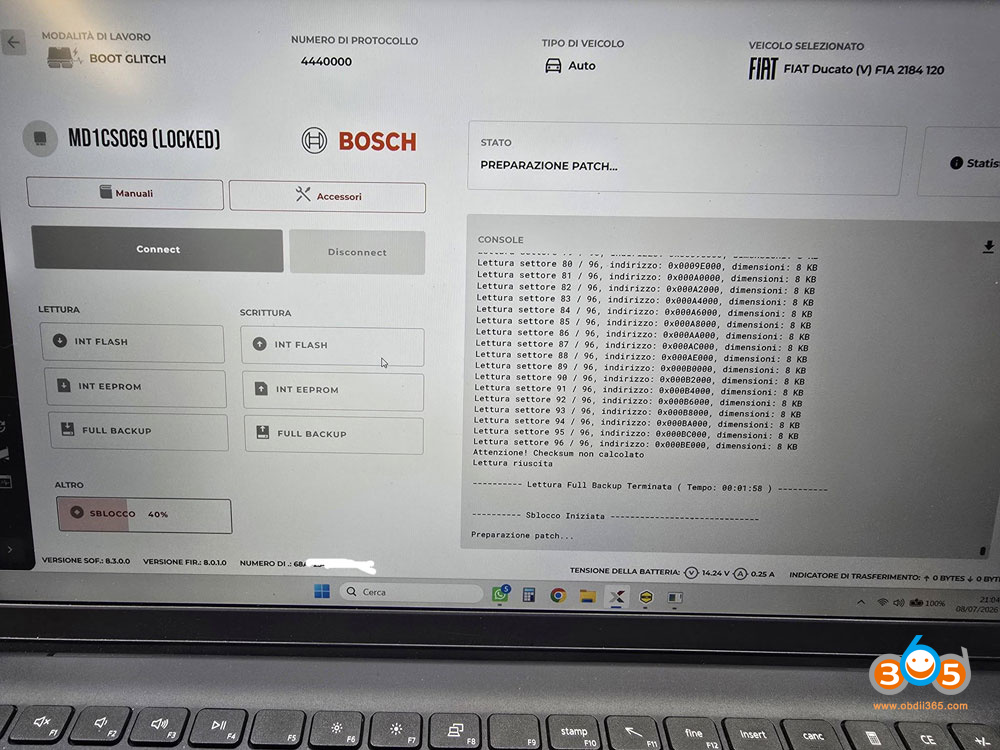

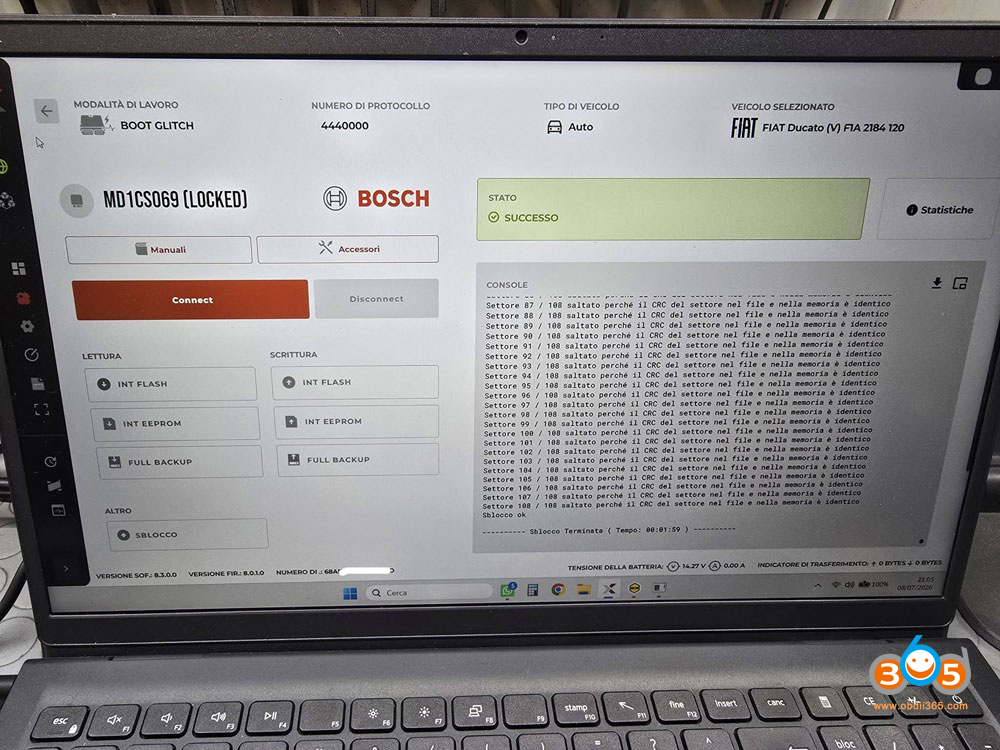

Unlock ecu via boot glitch mode.

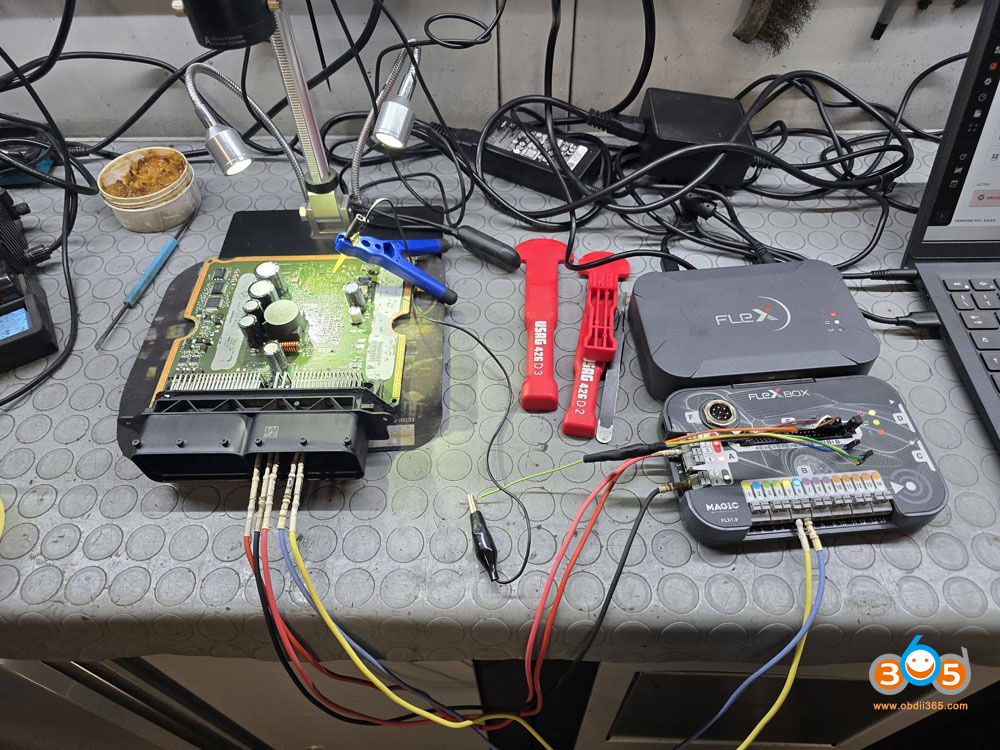

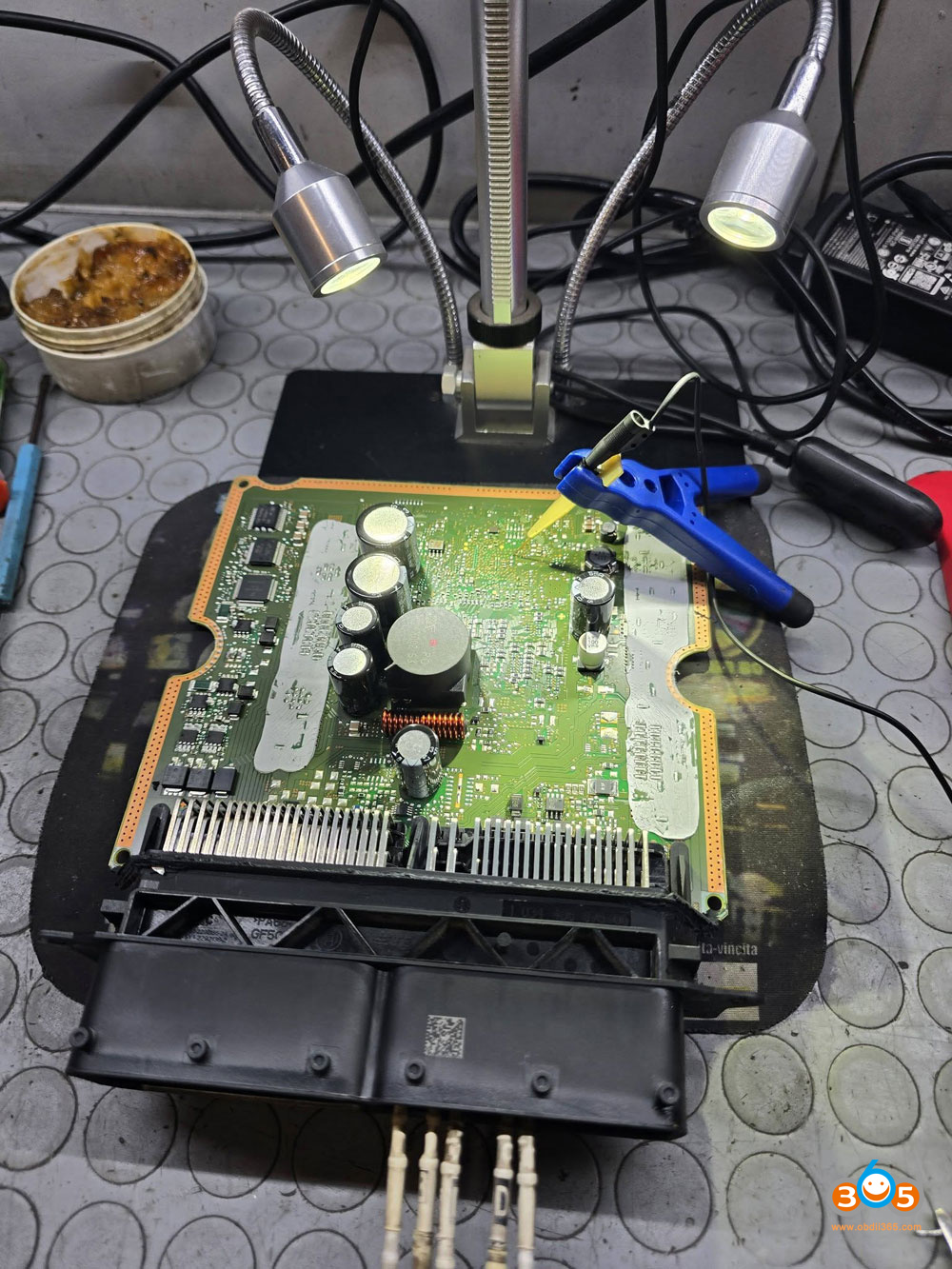

Solder short wires directly to the E-port.

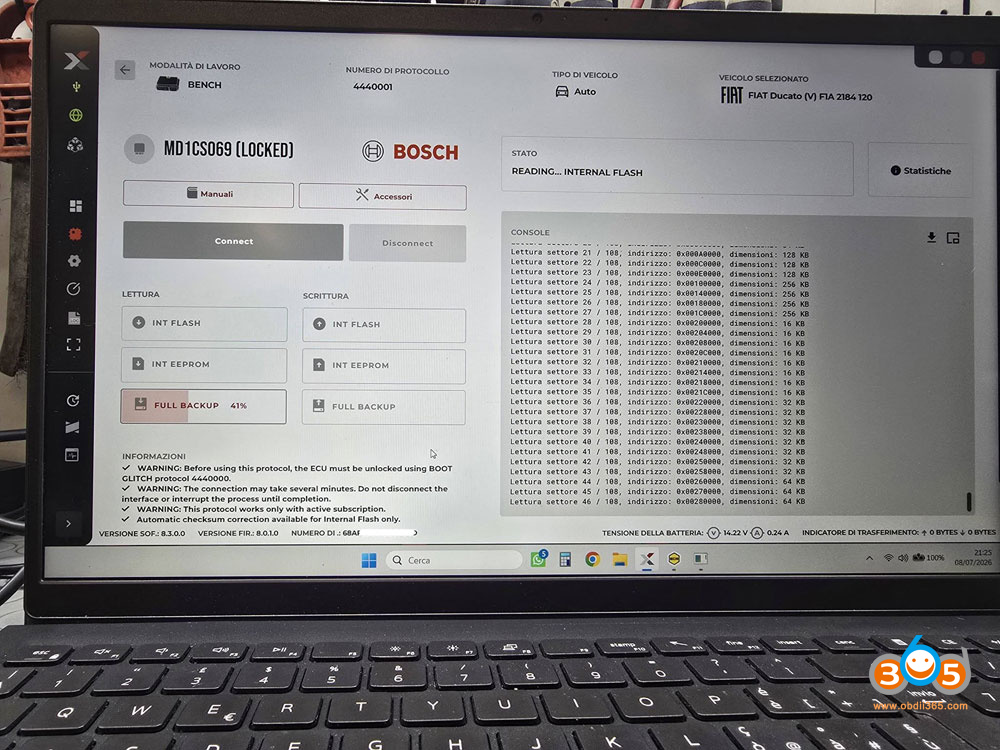

Then read and write ECU on bench mode after unlocking.

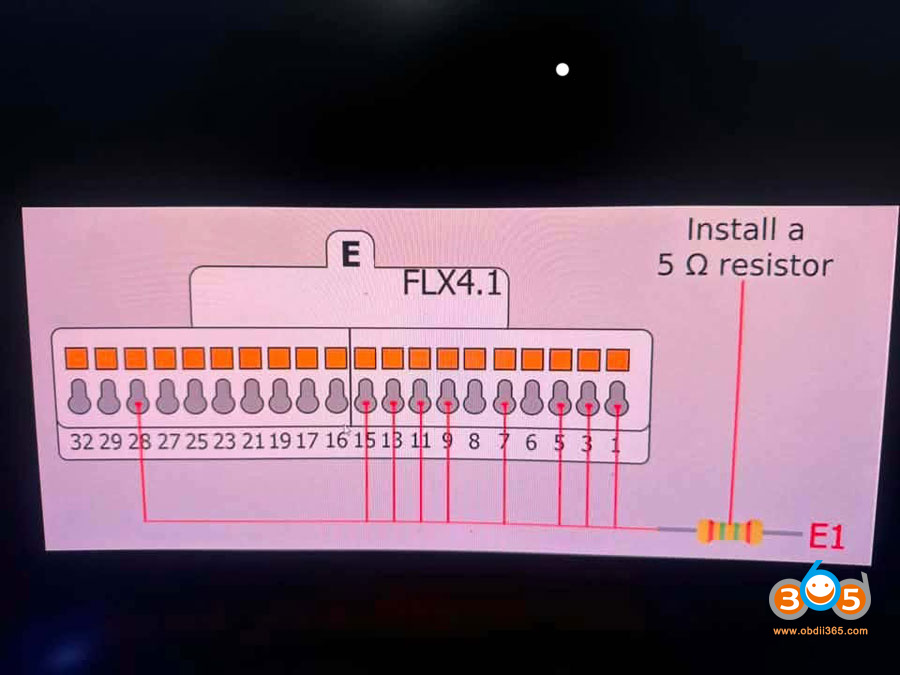

NOTE: Watch out for different E pins on this ECU.
It’s info from MMS support that the exact picture is for 003, but 5 ohm also works for other ecus.
It works beautifully with a 5-ohm resistor.
Use original flex power supply and 5 ohm resistor. It works beautifully with a 5-ohm resistor.
If it fails to unlock this ECU, check possible solutions here:
