If OBDSTAR fails to bypass Mitsubishi Outlander 2021- pin code using Nissan 40 pin cable, you can either buy pin or read 28-digit pin code from HFM module.
Here we will show how to read pin code from HFM module for 2021- Outlander proximity all keys lost.
Tools required:
OBDSTAR X300 Classic G3/X300 Pro4
OBDSTAR RH850 C4-06 Adapter
MP001 programmer
12V DC power supply
Procedure:
Update the Mitsubishi immobilizer software to the latest version.

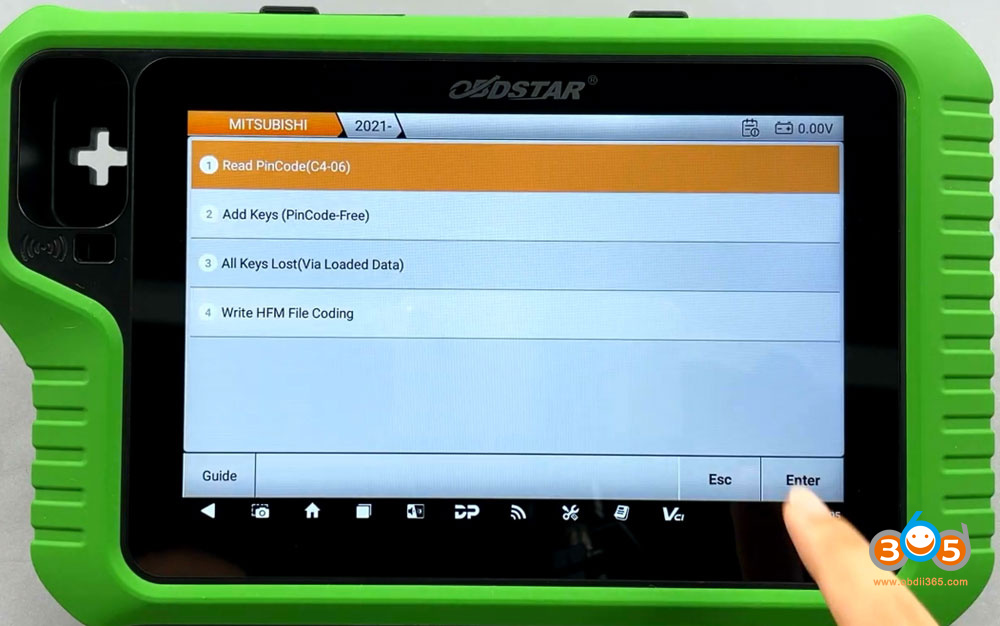

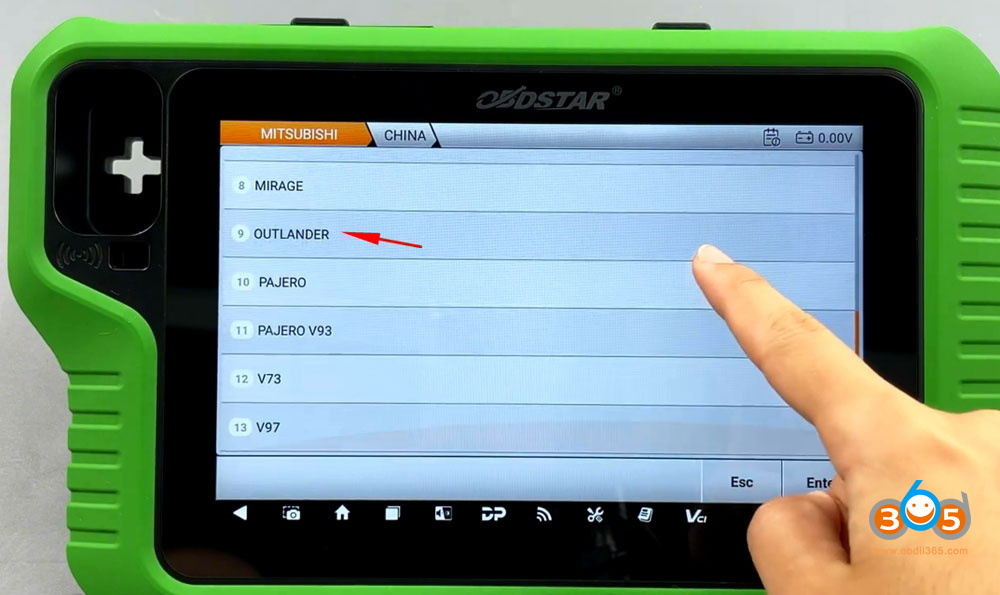

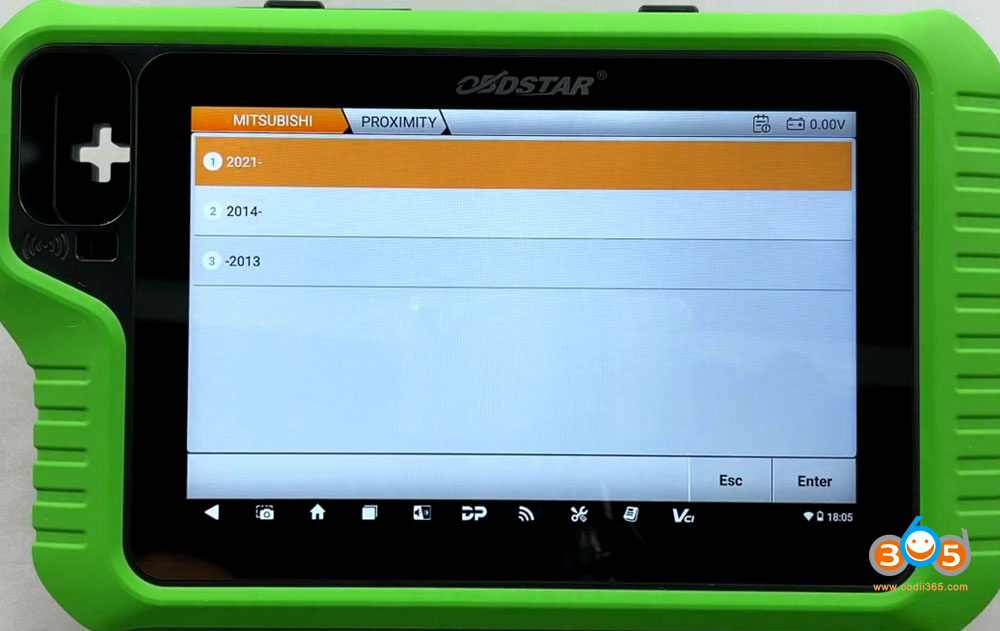

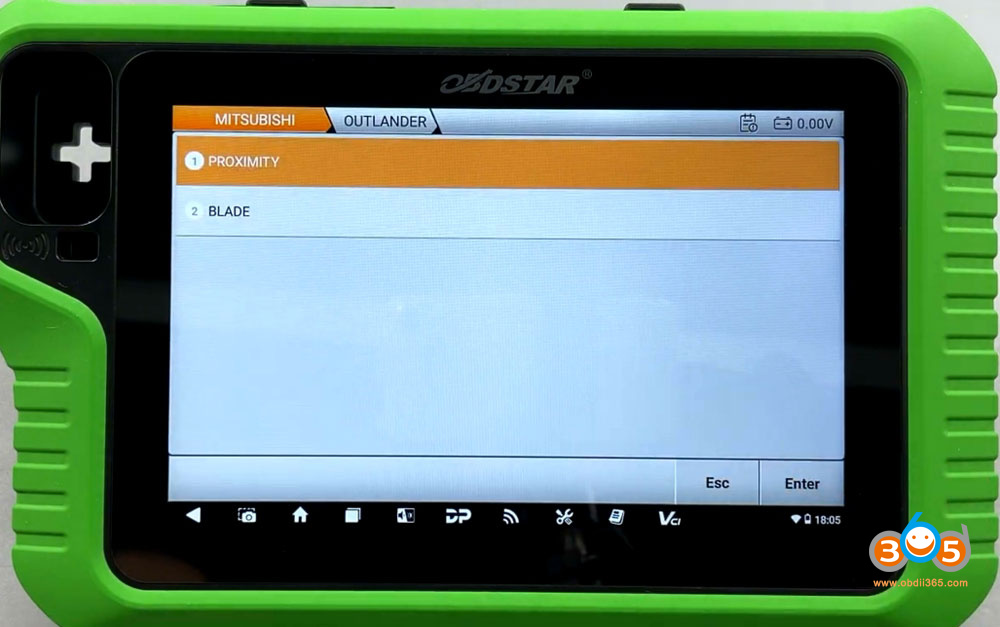

Select Mitsubishi- Manual Select Model- China- Putlander- Proximity- 2021 up- Read Pin Code
Select HFM processor mcu, here select R7F7010193.

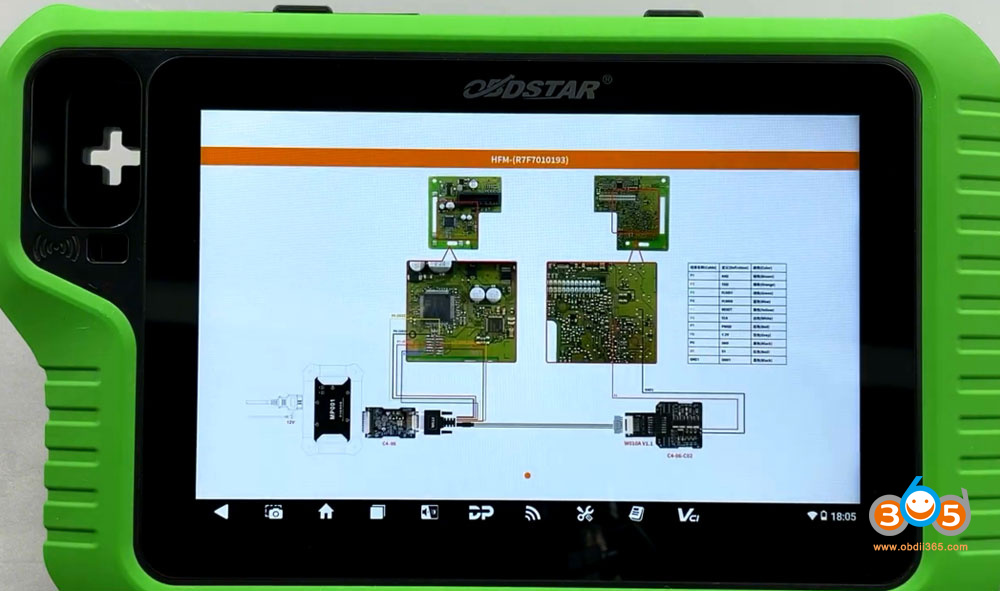

Check instructions and wiring diagram.
Remove the HFM module from the vehicle.

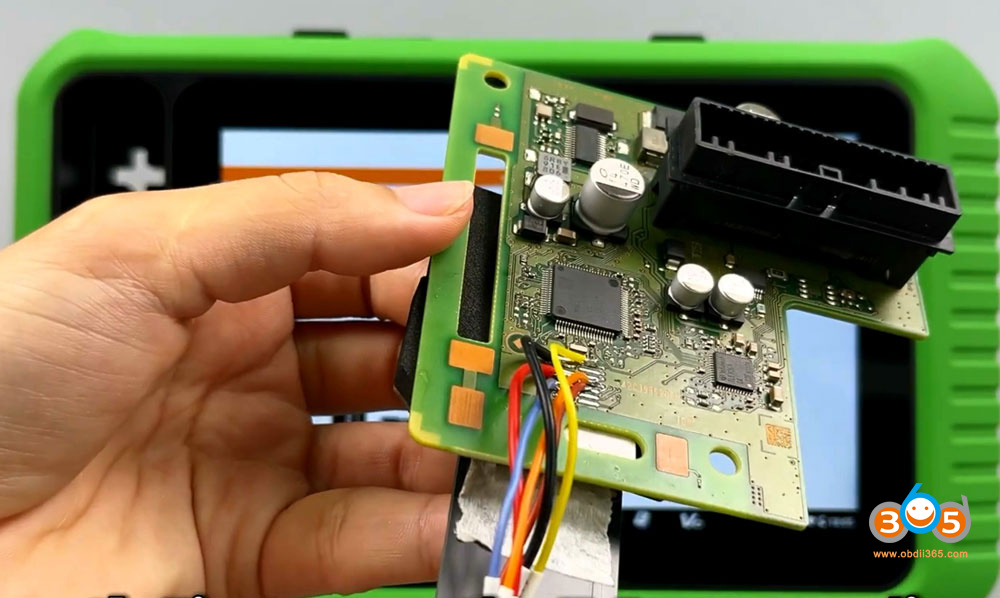

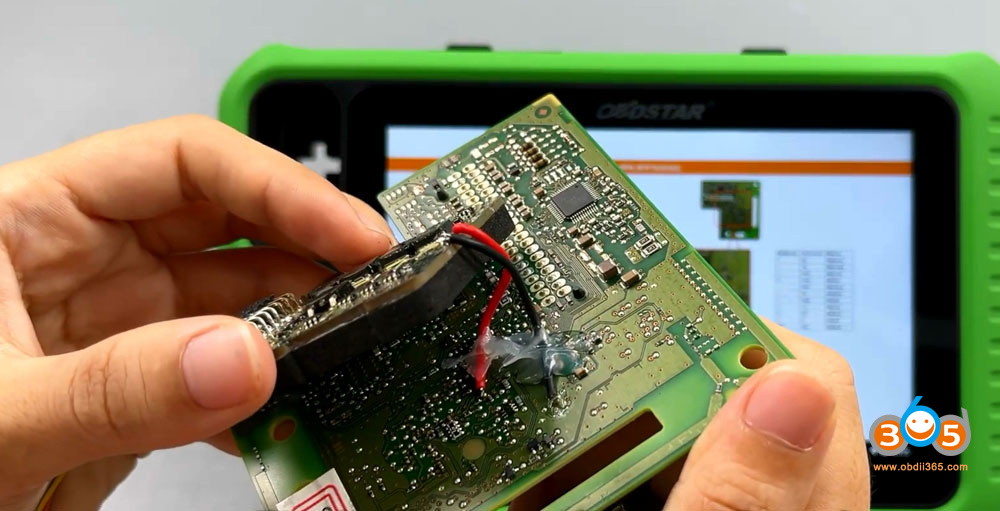

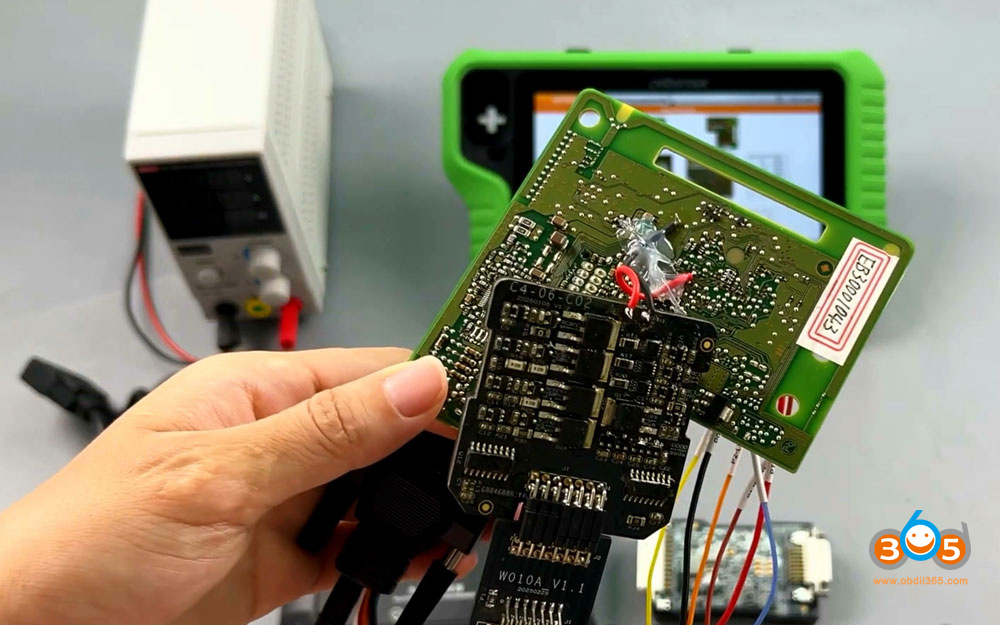

Solder C4-06 adapter to the HFM module.

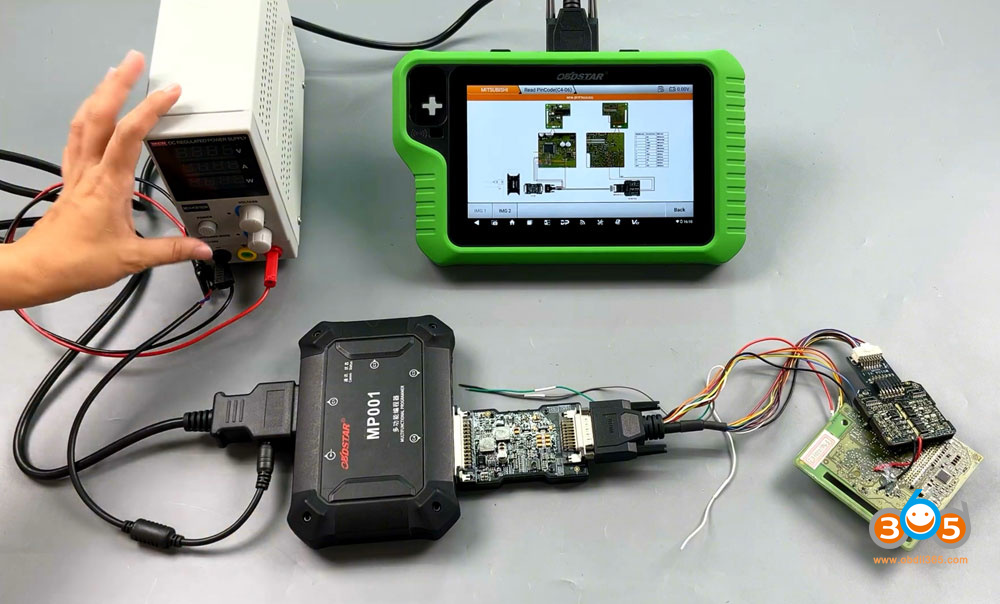

Then connect C4-06 adapter with MP001 and OBDSTAR G3.
NOTE: You must use he original decryption cable and do not modify its length to avoid connection failure.

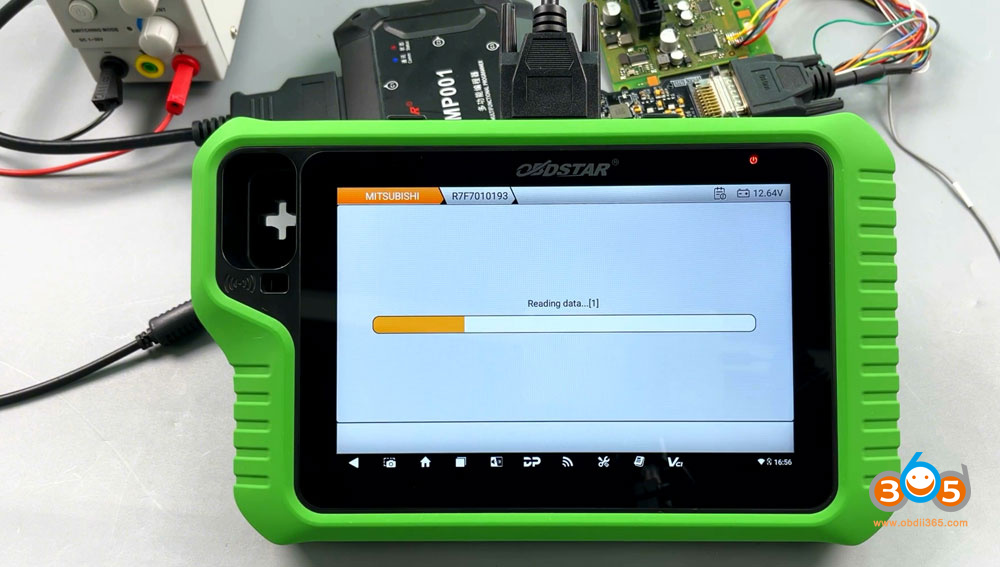

Reading pin code.

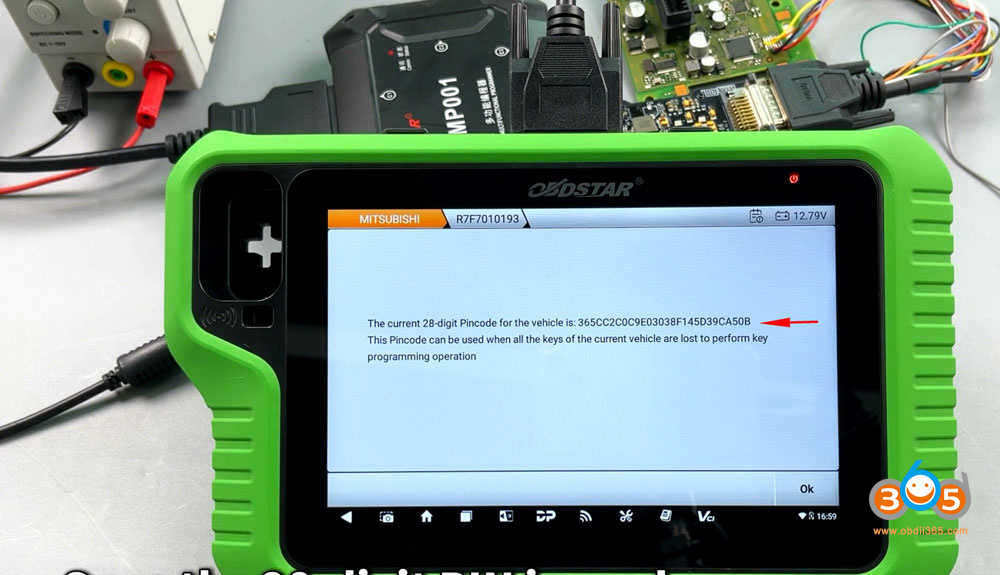

Read 28-digit pin code successfully.
Now you can program all keys lost with the pin code.
