CGDI CG100X now supports airbag crash reset function for Renesas RH850 R7F701A033 airbags.
Here is an example of resetting ChangAn R7F701A033 airbag with CG100X in boot mode.
Part number: 3658100-AM52-AA
Processor: R7F701A033

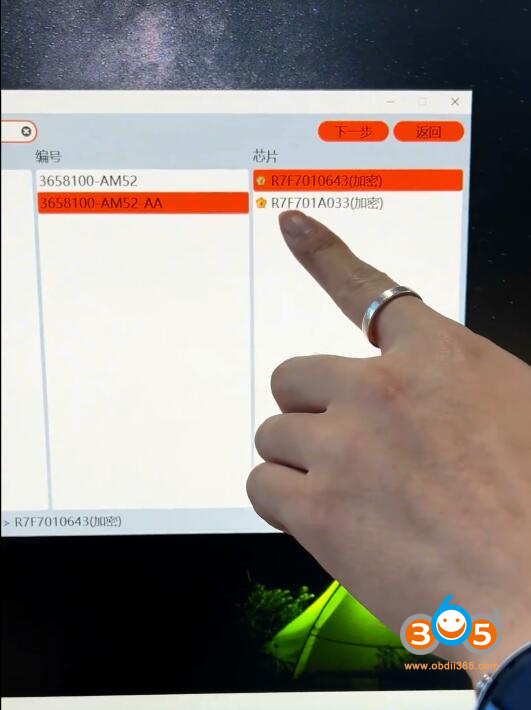

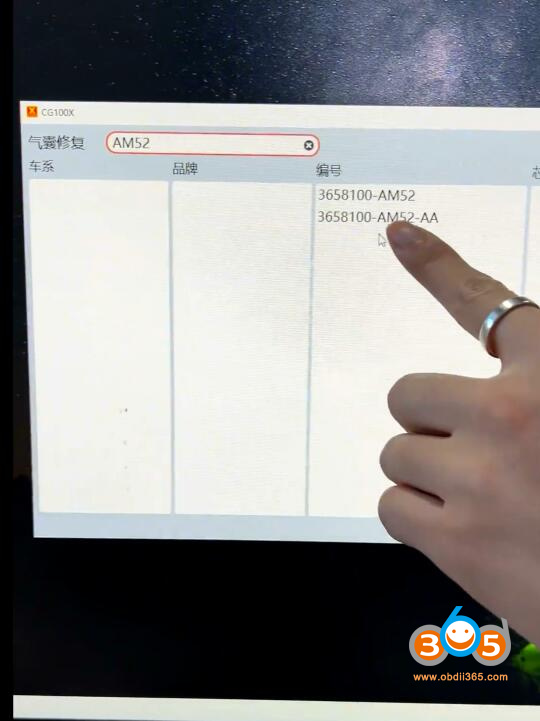

In CG100X software, search part number: 3658100-AM52-AA- R7F701A033 encrypted.
If you cannot find part number in CG100X software, just search by processor. CG100X can also read processor data and reset airbag crash. There are 4 wiring diagram R7F701A033.

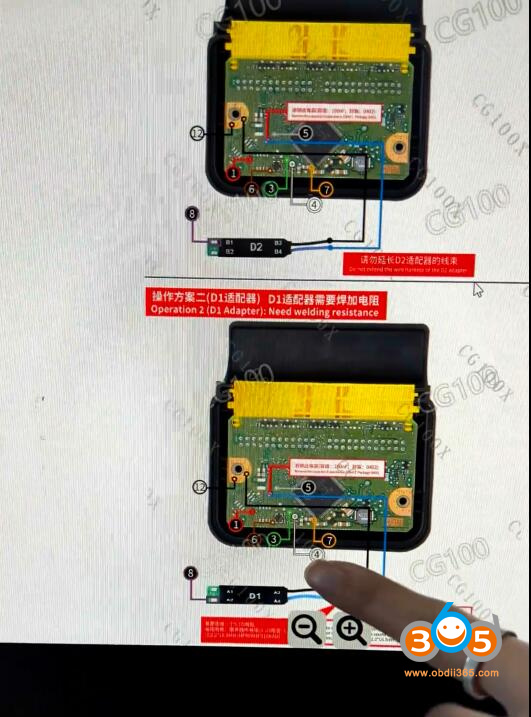

Check wiring diagram.
There are 2 types of airbag pinouts in boot mode.
Method 1 uses D2 adapter and method 2 uses D1 adapter.
With D1 adapter you need to weld a resistor; with D2 adapter, you does not need.

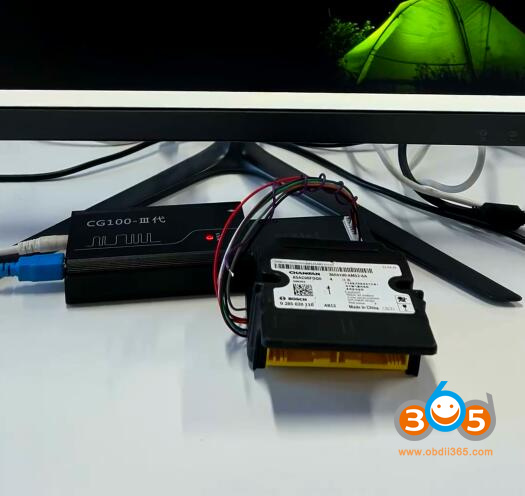

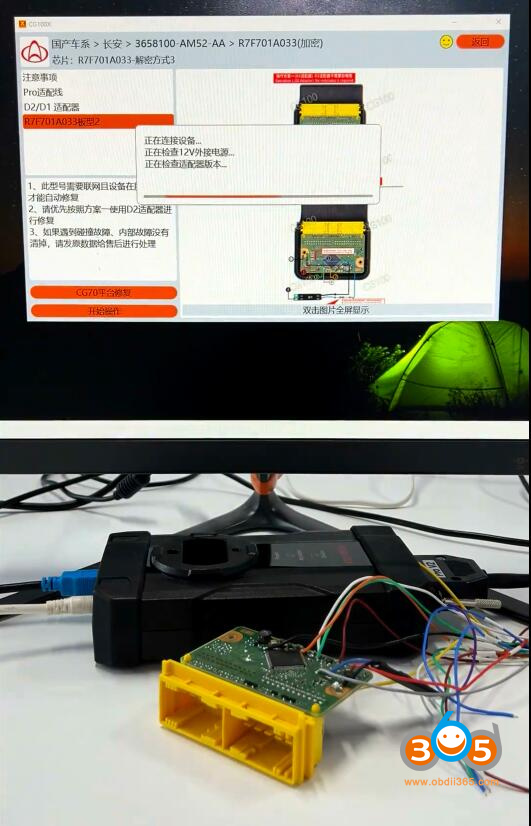

Connect CG100X and the airbag module following the wiring diagram.
Need to connect 12V power supply to the CG100X device.
Hit Read button to read data.
Read chip ID.
Read Dflash and Pflash data successfully. Save data.

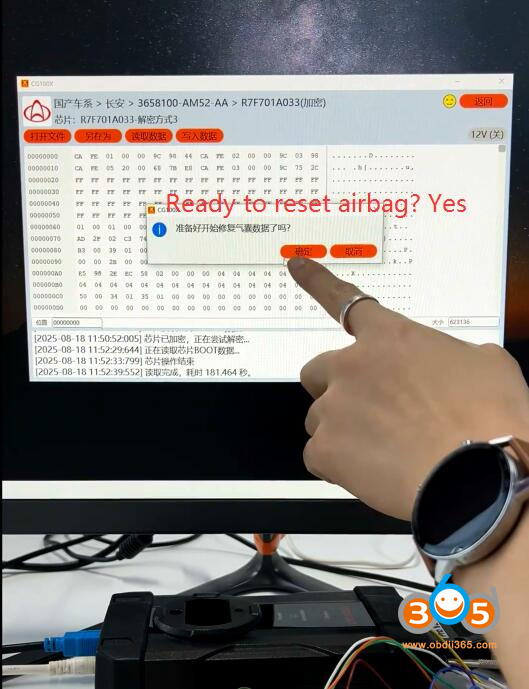

CG100X will ask to repair airbag.
Click Yes to reset airbag crash.
This procedure needs to connect with network and access the server.
Operation completed.
Clear fault code.
