How to Modify Keydiy KD-MAX Renew Cable to Read MQB49 5C 5D Key Data?

Keydiy KD-MAX now will also read VAG MQB49 5C 5D original key data. Update KD-MAX to 2.3.0 and newer.

KD-MAX does not have a dedicated cable to read 5C/5D keys.

We can modify the remote renew cable that came in the package to read 5C 5D keys.

There are 2 remote renew cables in the KD-MAX package.

Modify one of the renew cables like this

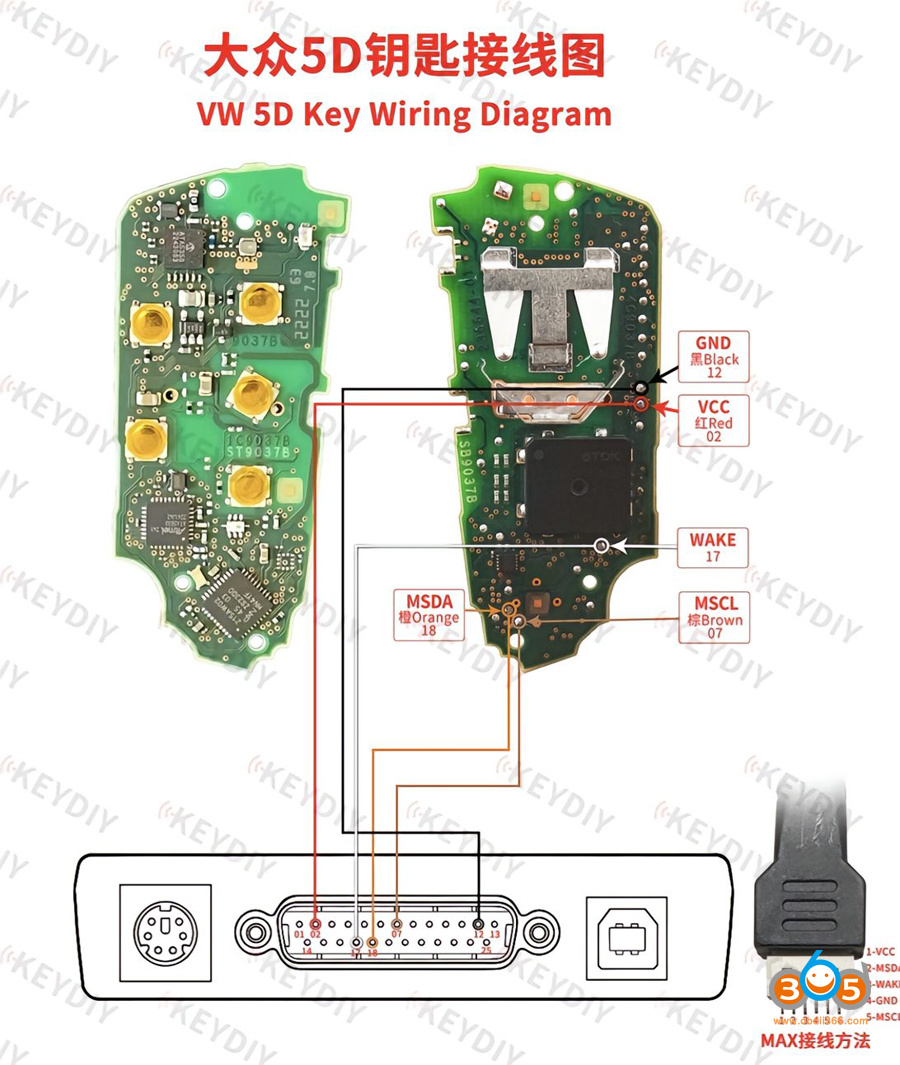

Then solder the modified cable to the key PCB as key wiring diagrams shown in the KD-MAX device.

NOTE: Need to learn key with KD-MATE after reading key data.
