Just a HEADS UP, if working on a FORD BCM; LEAR SPC560B64+95320 or LEAR 9S12XEP768 ( Or the 9S12XEP768 Ranger version) and BCM doesn’t connect and you getting ERROR 35 on OBDSTAR DC706 or G3 programmer, there’s a good chance you have selected the wrong BCM.
The BCM’s are identical outside, connectors and so on, but internally they are much different.
These BCM’s are available with white and black cases, colors doesn’t seem to matter much, if at all.
Posting pictures of both versions.
Make sure you select the correct BCM option.

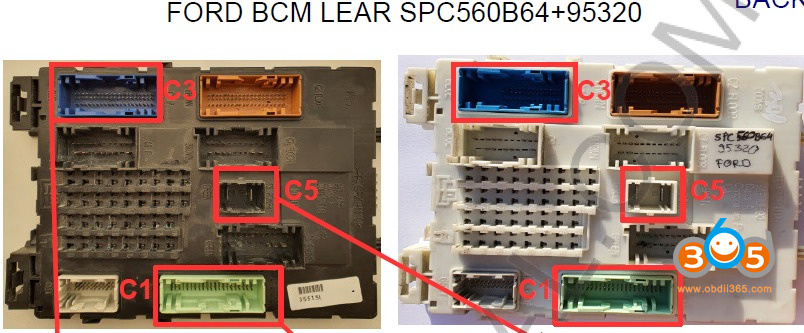

Ford BCM Lear SPC560B64+ 95320

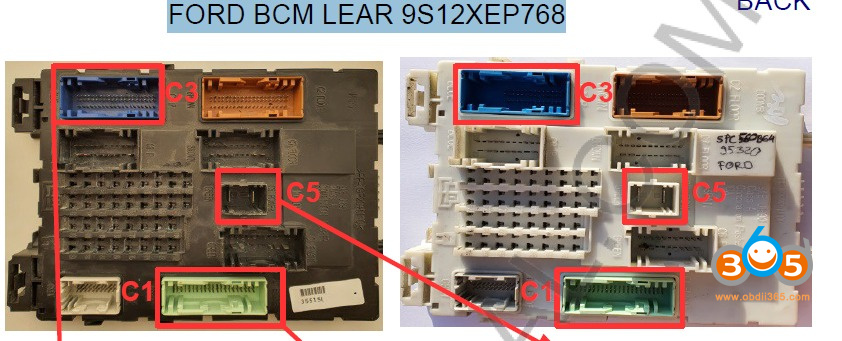

Ford BCM Lear 9S12XEP768
