Problem:

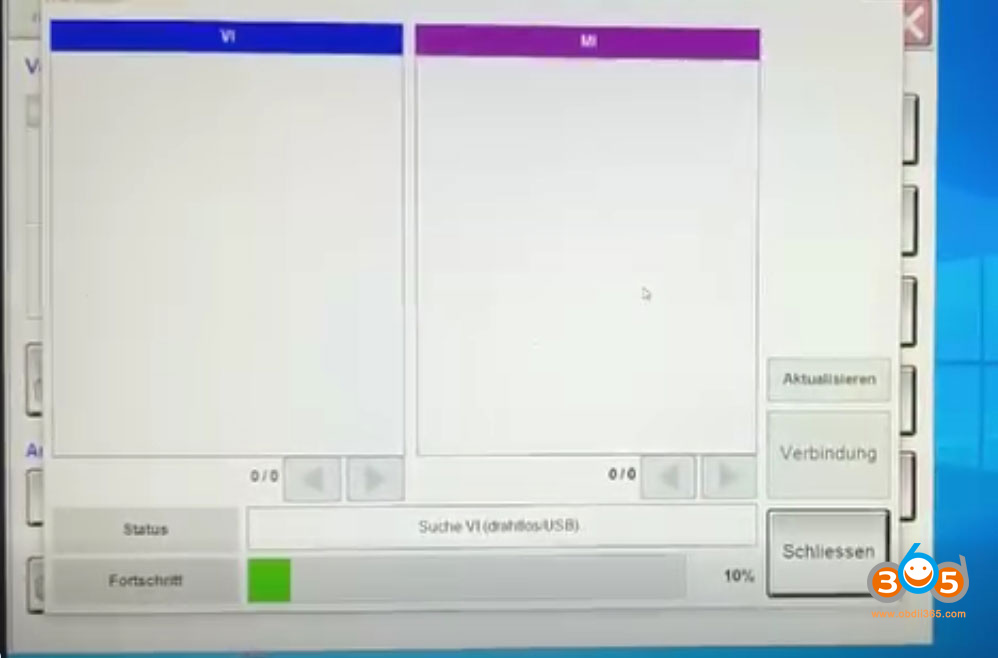

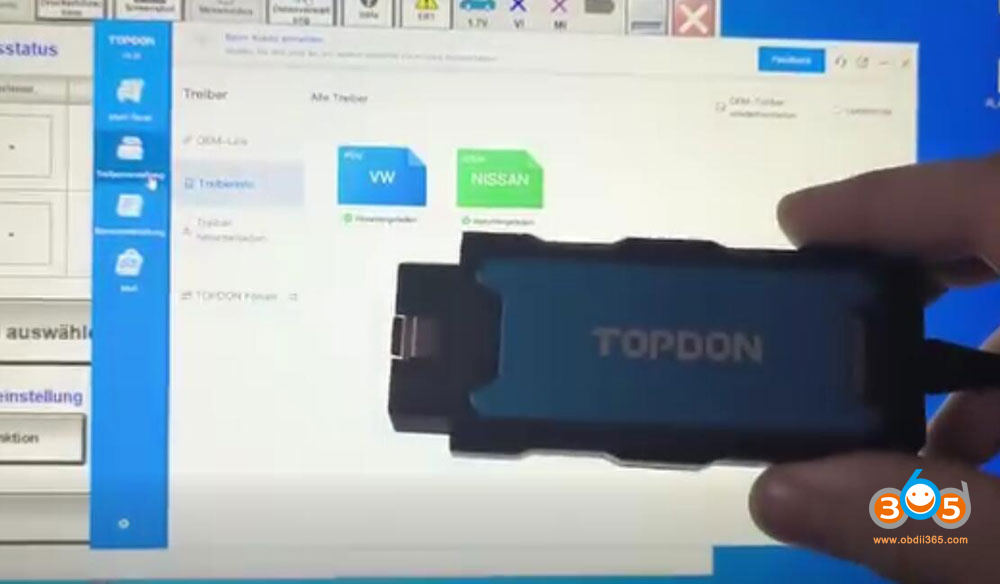

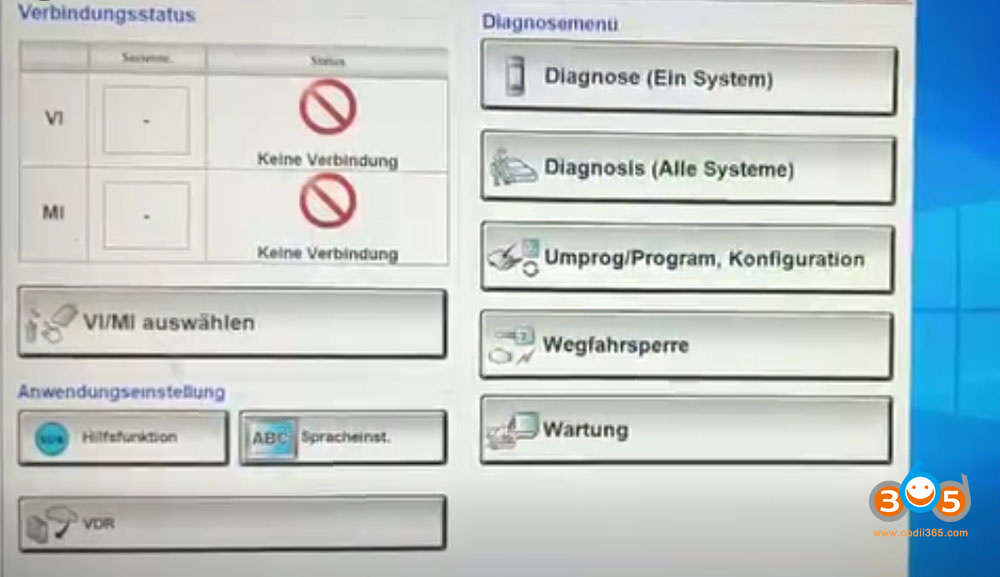

One of the Topdon Rlink X7 users is having a problem with Nissan Consult 3 plus software. The rlink is not connecting properly.
Installed it on another computer with only one driver, and it doesn’t work at all there either.
Solution:
Only have 1 driver installed at any one time.
His software is not Nissan Consult 3 Plus R2R version. He need to use a bridge tool to connect a non-original VCI device. Because the non-R2R software only supports the original VCI, this is due to the limitations of Nissan software.
Here is the method on how to use a third-party VCI with Consult 3 Plus non-R2R version.

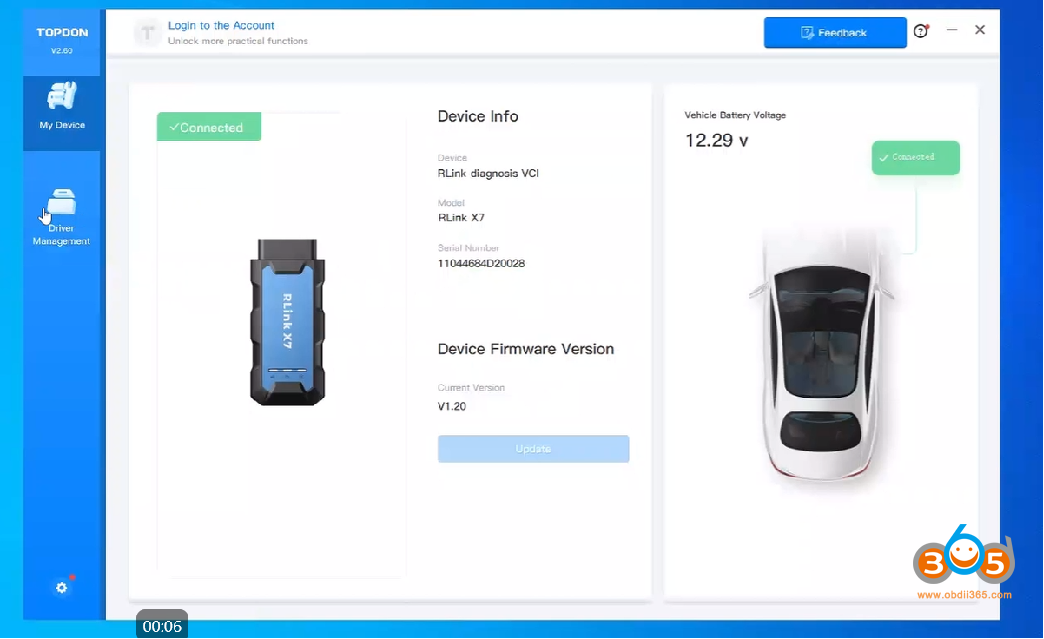

The functions of the RLink X7 are becoming more and more powerful as you use it. To use non-R2R version software with Rlink X7, you need to use a cracked small tool (C3PTool) in combination with this software. Here we share the connection method and the fact that we successfully solved the problem and cleared the fault codes.
This tool is only applicable to the C3P software and not applicable to the C3P R2R software.

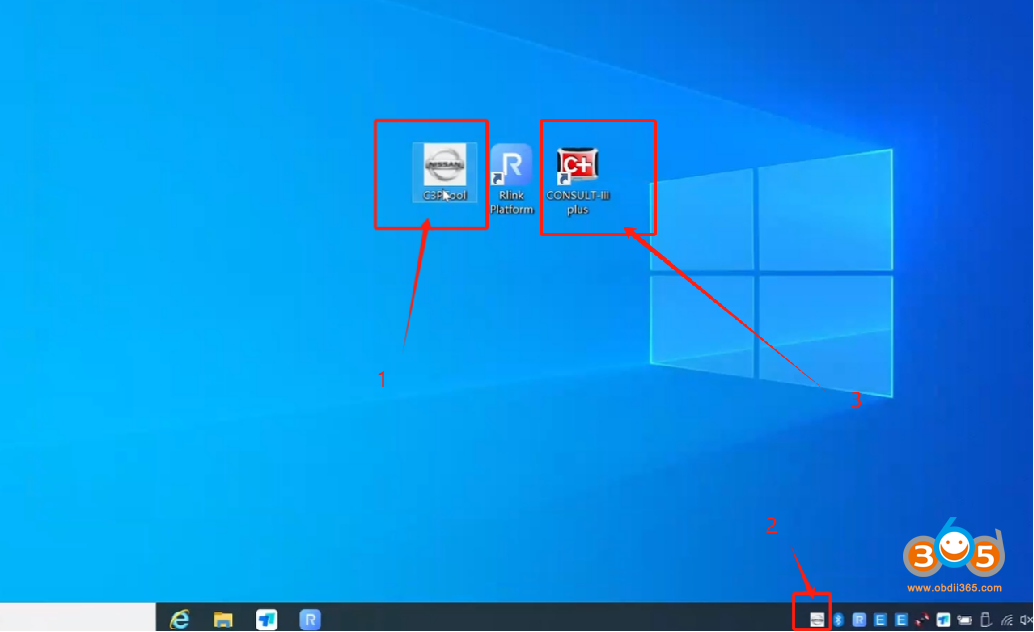

Double – click the C3PTool to activate it, and then open the C3P software. Check the information of the small tool displayed in the lower – right corner, which indicates that it has been activated.

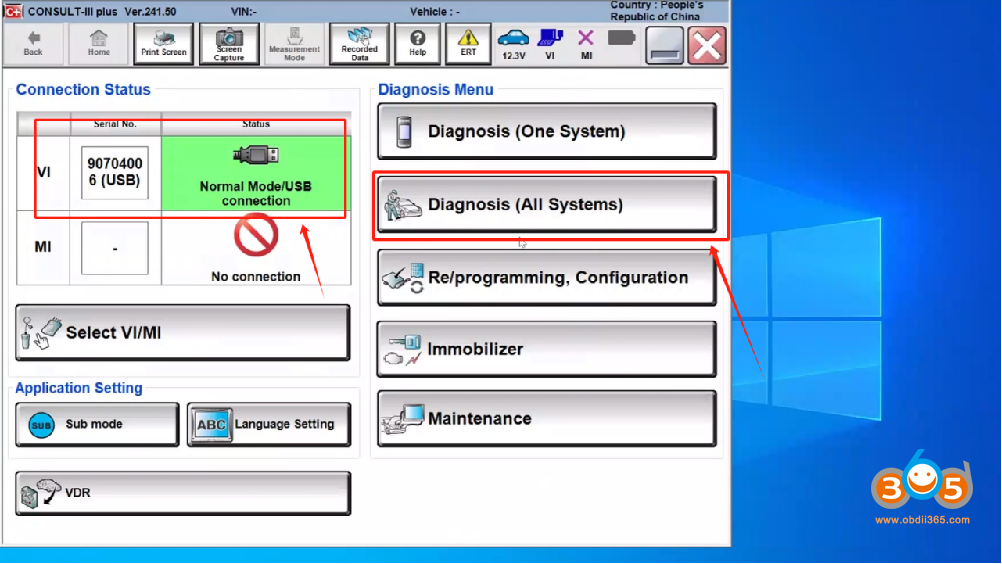

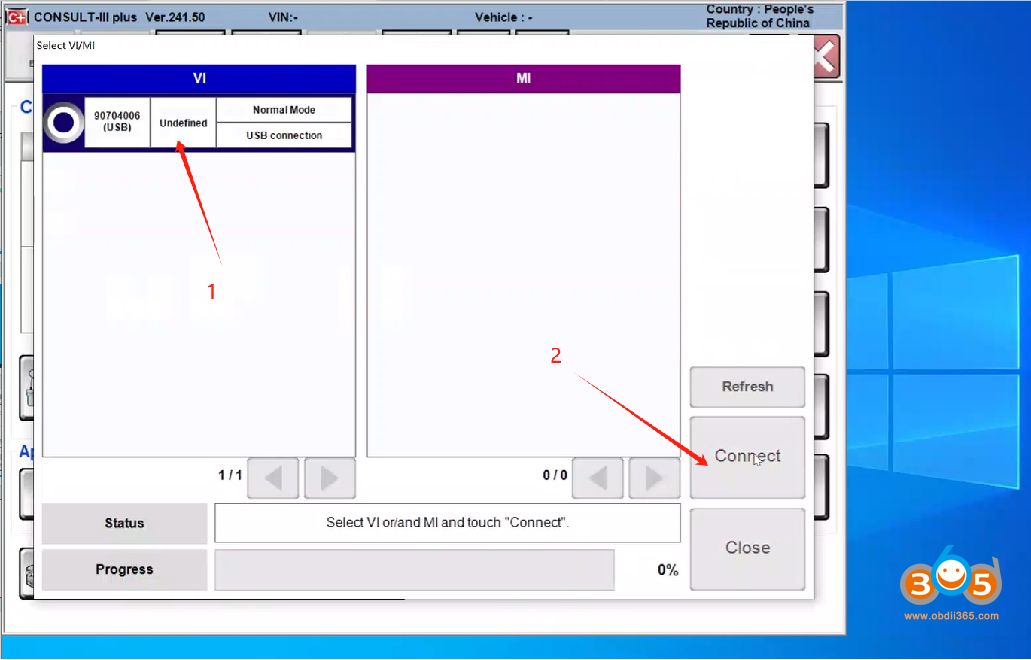

Enter the interface to select VI/MI to connect to the diagnostic connector. After a successful connection, the main page will display green connection information, and you can directly click to start the diagnosis.

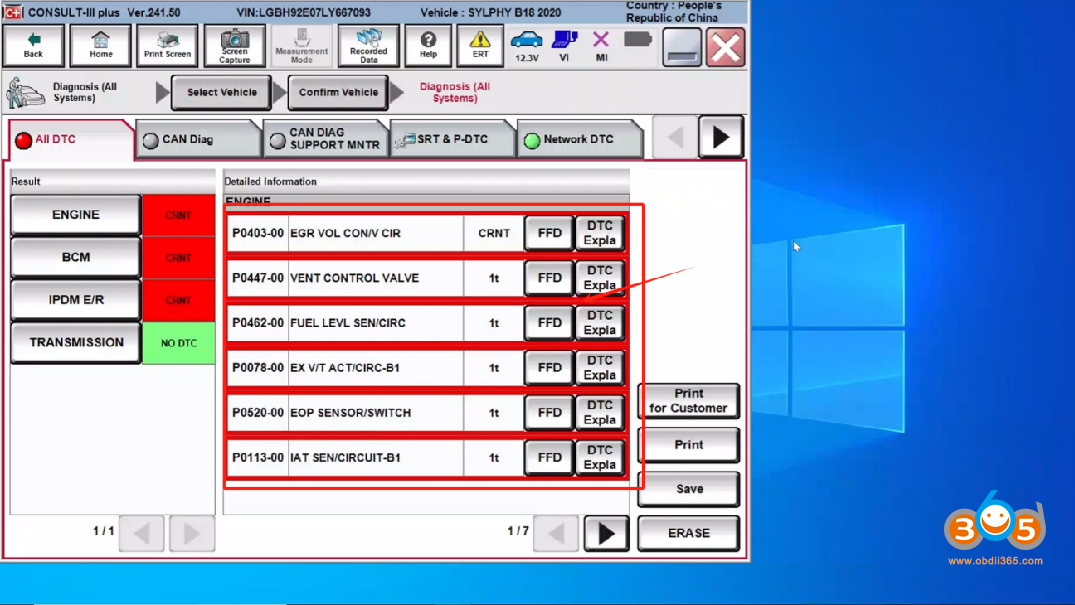

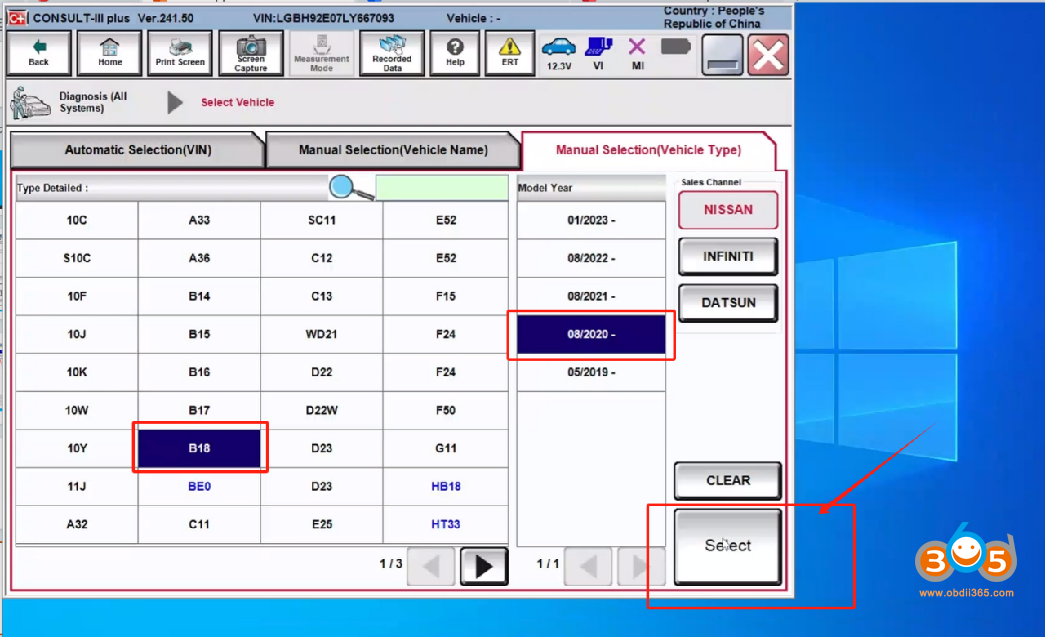

Select the vehicle information and directly click for diagnosis. Then the fault codes were successfully read.

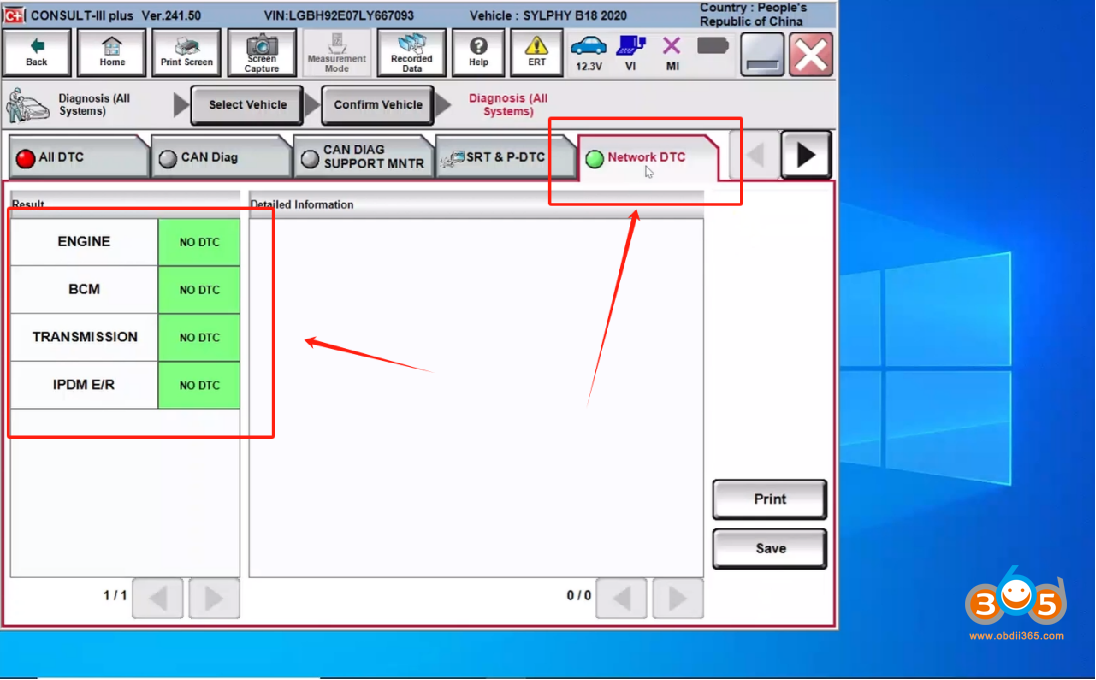

The fault has been resolved, and the fault codes have been successfully deleted.
