Great news! With the new 1.3.5.0 software update, the CG FC200 ecu programmer has become a pass-through device! The J2534 function now supports UDS, CAN, and KWP2000 protocols.

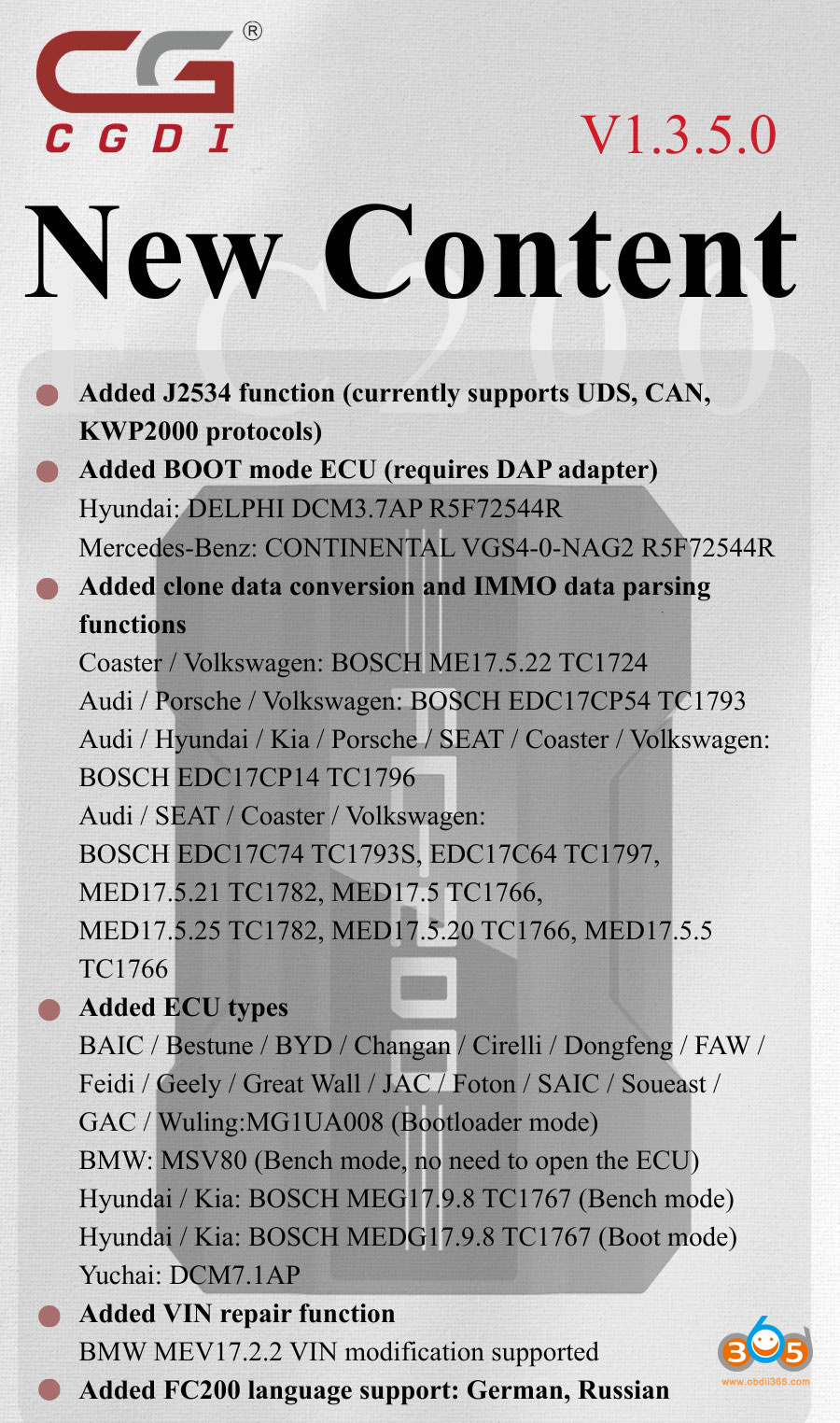

CG FC200 V1.3.5.0 Update Feature:
1 Added J2534 function (currently supports UDS, CAN, KWP2000 protocols)
2 Added BOOT mode ECU (requires DAP adapter)
Hyundai: DELPHI DCM3.7AP R5F72544R
Mercedes-Benz: CONTINENTAL VGS4-0-NAG2 R5F72544R
3 Added clone data conversion and IMMO data parsing functions
Coaster / Volkswagen: BOSCH ME17.5.22 TC1724
Audi / Porsche / Volkswagen: BOSCH EDC17CP54 TC1793
Audi / Hyundai / Kia / Porsche / SEAT / Coaster / Volkswagen: BOSCH EDC17CP14 TC1796
Audi / SEAT / Coaster / Volkswagen:
BOSCH EDC17C74 TC1793S, EDC17C64 TC1797, MED17.5.21 TC1782, MED17.5 TC1766,
MED17.5.25 TC1782, MED17.5.20 TC1766, MED17.5.5 TC1766
SEAT / Coaster / Volkswagen: BOSCH ME17.5.20 TC1767, EDC17U01 TC1766
Audi / Porsche / Volkswagen: BOSCH EDC17CP44 TC1797
Audi / Porsche / SEAT / Coaster / Volkswagen: BOSCH EDC17CP04 TC1796
Audi / SEAT / Volkswagen: BOSCH MED17.1 TC1796, MED17.5.2 TC1767
Audi / Volkswagen: BOSCH EDC17CP24 TC1796, EDC17C54 TC1797
Volkswagen: BOSCH EDC17CP74 TC1793S
4 Added ECU types
BAIC / Bestune / BYD / Changan / Cirelli / Dongfeng / FAW / Feidi / Geely / Great Wall / JAC / Foton / SAIC / Soueast / GAC / Wuling:
MG1UA008 (Bootloader mode)
BMW: MSV80 (Bench mode, no need to open the ECU)
Hyundai / Kia: BOSCH MEG17.9.8 TC1767 (Bench mode)
Hyundai / Kia: BOSCH MEDG17.9.8 TC1767 (Boot mode)
Yuchai: DCM7.1AP
5 Added VIN repair function
BMW MEV17.2.2 VIN modification supported
6 Added FC200 language support: German, Russian
7 Fixed issue:
Flash writing failure in BOOT mode for some Toyota 76F00xx ECUs
How to Use the CG FC200 J2534 function?
Function purpose:
When no PCM hardware box is available, the FC200 host can be used as PCM hardware box to connect modules and work with PCM Flash software.
Require FC200 main unit + FC200 software version V1.3.5.0 or above.

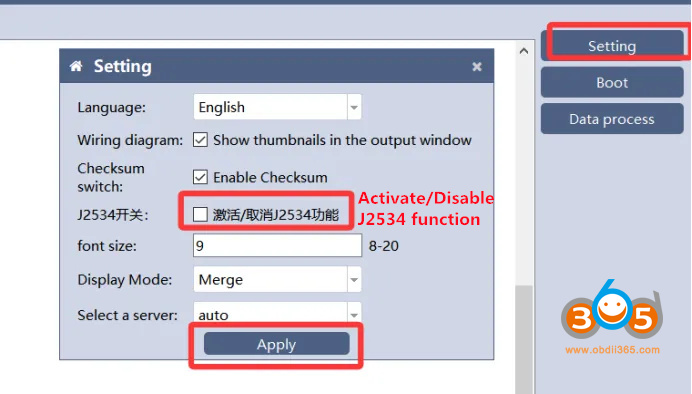

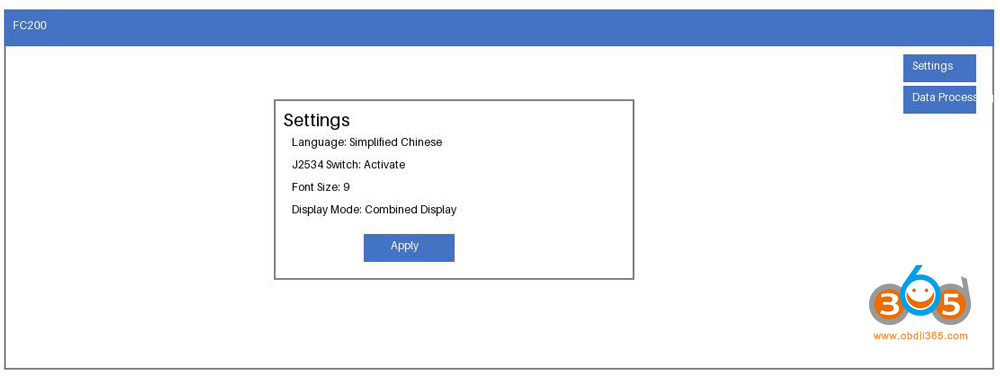

1. After downloading the software, click Settings, then activate the J2534 switch and click Apply.
2. PCM software (compatible with both genuine and cracked software), a PCM security dongle, and PCM drivres are all required.
CG manufacturer does not provide these items. Customers must purchase them separately.
3. Wiring: refer to FC200 wiring methods. OBD data reading is supported (only for vehicles with OBD).
